Servers

In this section:

Server Instances

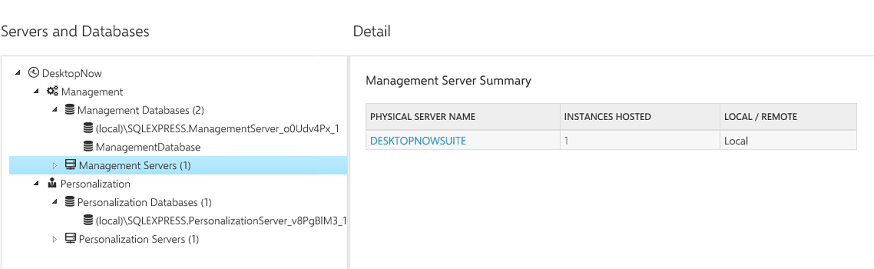

The product Servers node displays the product Server Summary page, where you can see a list of all servers for the product. Click a server name to go to that server node in the tree structure and display the product Server Summary page.

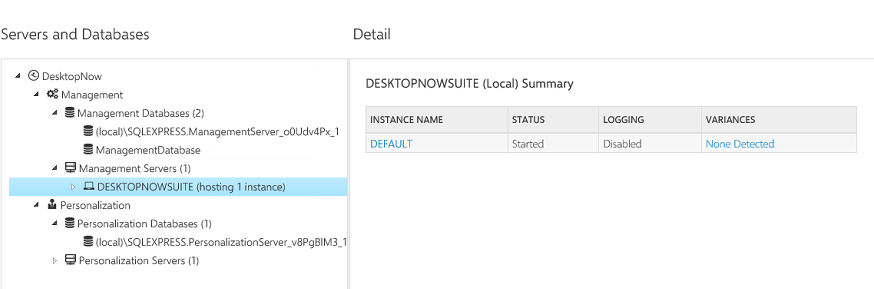

The Server node in the tree structure displays the Server Summary page in the work area where you can see a list of all instances for the selected server:

The status of each instance is listed together with whether logging is set and if there are any variances.

If there are no variances 'None Detected' displays. If there are variances the word 'Detected', displays in the Variances column. Click RECHECK to display the list of variances.

You can select to FIX ALL or FIX SELECTED variances. Click REFRESH VIEW to update the list and DONE when finished.

You can click any Instance name to display the instance configuration or Detail page. The appearance of the page depends on whether the instance has been configured:

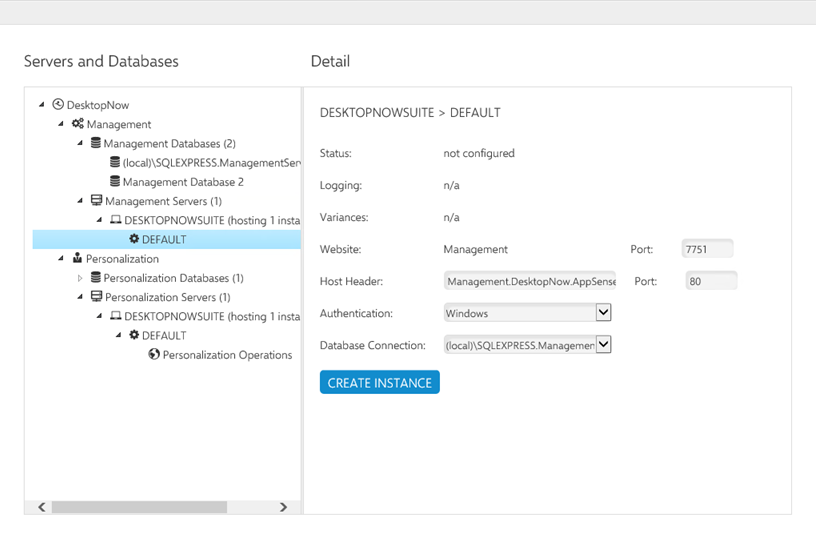

  • For instances that are not configured, the Detail page displays the options to configure a new instance.

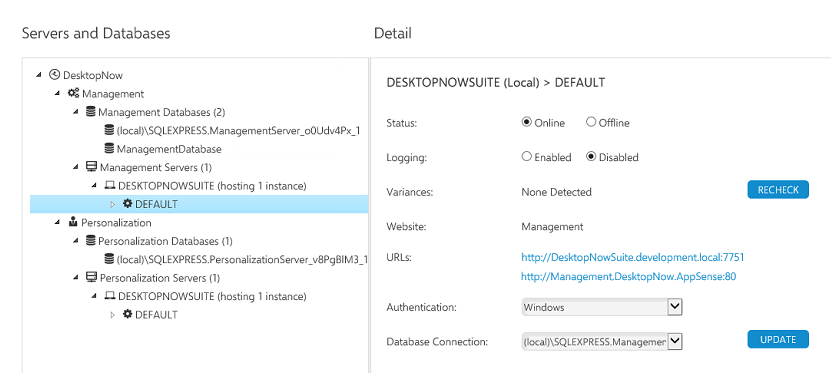

  • For instances that have been configured, the Detail page displays the configured settings and options such status, whether logging is enabled, and the option to recheck variances.
