Endpoints Page

The Endpoints page contains information about the managed endpoints on your network. From the Endpoints page, you can use features associated with endpoints.

The All Tab Toolbar

The All tab toolbar contains buttons used to manage basic endpoint functions. The following table describes the toolbar functions used in the Endpoints page.

Button	Function
Manage Agents... (menu)	Opens the Manage Agents menu.
Install Agents... (Manage Agents... menu item)	Install agents on selected endpoints. For additional information, refer to Installing Agents by Agent Management Job.
Uninstall Agents... (Manage Agents... menu item)	Uninstalls agents from selected endpoints. For additional information, refer to Uninstalling Agents by Agent Management Job.
Download Agent Installer... (Manage Agents... menu item)	Downloads an agent installer to the endpoint used to access Ivanti Endpoint Security. For additional information, refer to Downloading the Agent Installer.
Delete	Deletes a disabled endpoint. For additional information, refer to Deleting an Endpoint.
Enable	Enables a disabled endpoint. For additional information, refer to Enabling the Ivanti Endpoint Security Agent. This button is only available when an endpoint is disabled.
Disable	Disables an enabled endpoint. For additional information, refer to Disabling the Ivanti Endpoint Security Agent.
Agent Versions...	Defines the agent version(s) that can be installed on an endpoint. For additional information, refer to Upgrading Endpoints.
Manage Modules...	Opens the Add/Remove Modules dialog. Use this dialog to toggle module-specific agent functions. For additional information, refer to Installing Endpoint Modules.
Export	Exports the page data to a comma-separated value (.csv) file. For additional information, refer to Exporting Data. Important: The Enhanced Security Configuration feature for Internet Explorer suppresses export functionality and must be disabled to export data successfully. Pop-up blockers in Internet Explorer or other supported browsers may also suppress export functionality and should be disabled.
Options (menu)	Opens the Options menu. For additional information, refer to The Options Menu.

The All Tab List

The All tab list itemizes endpoint operating system information, identification information, agent information, and module information.

The following table describes the columns within the All tab list and the comma separated value (.csv) file you can export from it (refer to Exporting Data).

Column	Description
Name	The name of the endpoint. Click the link to view its Endpoint Details Page.
Display Name	Alternate name or phrase (up to 50 characters) for the endpoint to help you identify and distinguish it. Endpoint decision-making information it can provide includes what system it belongs to, where it is located, and what it is used for. You can edit this name on the Endpoint Details page.
IP Address	The IP address of the endpoint.
Agent Status	The status of the Ivanti Endpoint Security Agent on the endpoint. Values include: Online: The agent is communicating with the Ivanti Endpoint Security Server regularly. Refer to Working with Options for more information on configuring default agent behavior. Offline: The agent has not communicated with Ivanti Endpoint Security Server within the check in interval. In an Offline status, the agent still enforces all policies. A Warning () icon next to an Offline status indicates that the Endpoint Distribution Service (EDS) server the endpoint connects to is offline. Click the icon to find out additional status details. Disabled: The agent is disabled by an Ivanti Endpoint Security administrator. It doesn't enforce module policies nor complete tasks.
Last Connected Date (Server)	Exported comma separated value (.csv) file only. Last date and time (in server local time) when the endpoint communicated with the Endpoint Distribution Service (EDS) server.
EDS Status	Exported comma separated value (.csv) file only. Status of the Endpoint Distribution Service (EDS) server. The following list defines column values: Started: EDS server has started and is in an operational state accepting workloads. Starting: EDS server is in the process of starting its service. Stopped: EDS server has stopped and is not accepting workloads. Stopping: EDS server is in the process of stopping so as to not accept workloads. Offline: EDS server is offline as it has not contacted the database in the configured amount of time.
Operating System	The operating system that the endpoint uses.
Agent Version	The version of the Ivanti Endpoint Security Agent installed. A icon next to an agent version indicates that an upgrade of the agent was requested. Click the icon to display additional agent version details.
Module Installed	Indicates whether a module is installed on the endpoint. A new Module Installed column is added for each module installed on your Ivanti Endpoint Security Server. The following list defines column entry values: Yes: The module is installed. No: The module is not installed. Pending Install: The module is in the process of installing. Pending Uninstall: The module is in the process of uninstalling. Error: There was an error while installing or uninstalling the module. Click the for additional information about the error. Expired: The module license has expired.

The All Tab

This tab lists information about endpoints, the agent version installed on them, and the module features active on them.

This tab displays by default when you open the Endpoints page.

The All Tab Toolbar

The All tab toolbar contains buttons used to manage basic endpoint functions.

The following table describes the toolbar functions used in the Endpoints page.

Button	Function
Manage Agents... (menu)	Opens the Manage Agents menu.
Install Agents... (Manage Agents... menu item)	Install agents on selected endpoints. For additional information, refer to Installing Agents by Agent Management Job.
Uninstall Agents... (Manage Agents... menu item)	Uninstalls agents from selected endpoints. For additional information, refer to Uninstalling Agents by Agent Management Job.
Download Agent Installer... (Manage Agents... menu item)	Downloads an agent installer to the endpoint used to access Ivanti Endpoint Security. For additional information, refer to Downloading the Agent Installer.
Delete	Deletes a disabled endpoint. For additional information, refer to Deleting an Endpoint.
Enable	Enables a disabled endpoint. For additional information, refer to Enabling the Ivanti Endpoint Security Agent. This button is only available when an endpoint is disabled.
Disable	Disables an enabled endpoint. For additional information, refer to Disabling the Ivanti Endpoint Security Agent.
Agent Versions...	Defines the agent version(s) that can be installed on an endpoint. For additional information, refer to Upgrading Endpoints.
Manage Modules...	Opens the Add/Remove Modules dialog. Use this dialog to toggle module-specific agent functions. For additional information, refer to Installing Endpoint Modules.
Export	Exports the page data to a comma-separated value (.csv) file. For additional information, refer to Exporting Data. Important: The Enhanced Security Configuration feature for Internet Explorer suppresses export functionality and must be disabled to export data successfully. Pop-up blockers in Internet Explorer or other supported browsers may also suppress export functionality and should be disabled.
Options (menu)	Opens the Options menu. For additional information, refer to The Options Menu.

The All Tab List

The All tab list itemizes endpoint operating system information, identification information, agent information, and module information.

The following table describes the columns within the All tab list and the comma separated value (.csv) file you can export from it (refer to Exporting Data).

Column	Description
Name	The name of the endpoint. Click the link to view its Endpoint Details Page.
Display Name	Alternate name or phrase (up to 50 characters) for the endpoint to help you identify and distinguish it. Endpoint decision-making information it can provide includes what system it belongs to, where it is located, and what it is used for. You can edit this name on the Endpoint Details page.
IP Address	The IP address of the endpoint.
Agent Status	The status of the Ivanti Endpoint Security Agent on the endpoint. Values include: OnlineThe agent is communicating with the Ivanti Endpoint Security Server regularly. See Working with Options for more information on configuring default agent behavior. OfflineThe agent has not communicated with Ivanti Endpoint Security Server within the check in interval. In an Offline status, the agent still enforces all policies. A Warning () icon next to an Offline status indicates that the Endpoint Distribution Service (EDS) server the endpoint connects to is offline. Click the icon to find out additional status details. Disabled: The agent is disabled by an Ivanti Endpoint Security administrator. It doesn't enforce module policies nor complete tasks.
Last Connected Date (Server)	Exported comma separated value (.csv) file only. Last date and time (in server local time) when the endpoint communicated with the Endpoint Distribution Service (EDS) server.
EDS Status	Exported comma separated value (.csv) file only. Status of the Endpoint Distribution Service (EDS) server. The following list defines column values: Started: EDS server has started and is in an operational state accepting workloads. Starting: EDS server is in the process of starting its service. Stopped: EDS server has stopped and is not accepting workloads. Stopping: EDS server is in the process of stopping so as to not accept workloads. Offline: EDS server is offline as it has not contacted the database in the configured amount of time.
Operating System	The operating system that the endpoint uses.
Agent Version	The version of the Ivanti Endpoint Security Agent installed. A icon next to an agent version indicates that an upgrade of the agent was requested. Click the icon to display additional agent version details.
Module Installed	Indicates whether a module is installed on the endpoint. A new Module Installed column is added for each module installed on your Ivanti Endpoint Security Server. The following list defines column entry values: Yes: The module is installed. No: The module is not installed. Pending Install: The module is in the process of installing. Pending Uninstall: The module is in the process of uninstalling. Error: There was an error while installing or uninstalling the module. Click the for additional information about the error. Expired: The module license has expired.

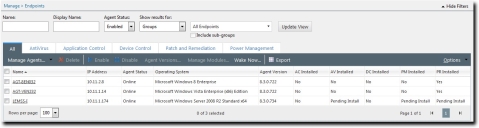

Viewing the Endpoints Page

The Endpoints page has filters that allow you to customize your view of the computers and other devices that are managed on your network.

From the Navigation Menu, select Manage > Endpoints.
[Optional] Complete a task listed in Working with the Endpoints Page.
