Service Manager OpenID Connect Configuration

The Service Manager OpenID Connect (OIDC) configuration is based on the IdentityServer3 library.

The steps to enable the Service Manager OIDC are as follows:

Adding the necessary Metadata (new Business Objects in ConfigDB and TenantDBs)

Updating Service Manager AppServer Web.Config Settings

Adding a Token Signing Certificate to ConfigDB

Adding an OIDC_Client record to ConfigDB for the Client Application

Adding Metadata

The Service Manager OIDC requires new business objects to be added to ConfigDB and TenantDBs, which will be included in the 2019.1 out-of-the-box databases and upgrade packages. However, they are also available in the following standalone packages in the Git SM.UpgradePackageFiles repository:

OpenIDConnect/OpenIDConnect_ConfigDB.MetadataPatch

OpenIDConnect/OpenIDConnect_Tenant.MetadataPatch

OpenIDConnect_ConfigDB.MetadataPatch adds the following metadata to ConfigDB:

OIDC_Client business object and associated workspace

OIDC_Claim business object (child object of OIDC_Client)

OIDC_Secret business object (child object of OIDC_Client)

OIDC_Flow business object and validation list

OIDC_TokenUsage business object and validation list

OIDC_TokenExpiration business object and validation list

OIDC_AccessTokenType business object and validation list

OIDC_Token business object (stores OIDC refresh tokens and other token types)

"OIDCTokenSign" Certificate Category (added to FRS_Certificate_Category validation list)

OpenIDConnect/OpenIDConnect_Tenant.MetadataPatch adds the following metadata to a Tenant DB:

OIDC_Consent business object (stores OIDC consent choices made by users)

Updating Web.Config Settings

The following ISM AppServer Web.Config settings are available:

<appSettings>

<add key="EnableOpenIDConnectAuthentication" value="true" />

<add key="OIDCLegalUrl" value="https://www.ivanti.com/company/legal" />

<add key="OIDCPatentsUrl" value="https://www.ivanti.com/company/legal/ivanti-patents" />

<add key="OIDCHTMLFolder" value="ISM" />

<add key="OIDCSiteName" value="Ivanti Cloud" />

</appSettings>

EnableOpenIDConnectAuthentication - Required to enable ISM OIDC. Default value is "false".

OIDCLegalUrl - Optional. The legal URL link displayed on the OIDC login page. Default value is "https://www.ivanti.com/company/legal".

OIDCPatentsUrl - Optional. The patents URL link displayed on the OIDC login page. Default value is "https://www.ivanti.com/company/legal/ivanti-patents".

OIDCHTMLFolder - Optional. Controls the look and feel of the OIDC login page etc. Default is "ISM". Other options are "Uno" and "app" (generic).

OIDCSiteName - Optional. Controls the title text displayed on the OIDC login page etc. Default is "Ivanti Cloud".

Adding a Token Signing Certificate

Service Manager OIDC requires a Token Signing Certificate. You can create a self-signed certificate using the following command line tools:

makecert.exe -r -pe -n "CN=OIDCSign1" -b 01/01/2017 -e 01/01/2025 -sky signature -a sha256 -len 2048 -sv OIDCSign1.pvk OIDCSign1.cer

pvk2pfx.exe -pvk OIDCSign1.pvk -spc OIDCSign1.cer -pfx OIDCSign1.pfx -po Password12

makecert.exe will ask you for a private key password. You can select "none".

The above will result in a OIDCSign1.pfx certificate file with a password "Password12"

Add the certificate to the ConfigDB Certificates table as shown below:

The Certificate ID must be "OIDCTokenSigningCertificate". The Certificate Category must be "OIDCTokenSign".

Adding OIDC Client Configuration

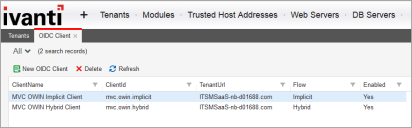

Each OIDC Client Application must have a corresponding OIDC_Client record in ConfigDB that specifies its configuration and maps it to an ISM Tenant and corresponding users (usually Employee records).

The configuration for the "MVC OWIN Hybrid Client" example client application is shown in the following screenshot:

Field descriptions are as follows:

Field Description
Enabled

Specifies if the client record is enabled

Client Name

Client display name (used for logging and consent screen)

Client ID

Unique ID of the client

Tenant

Service Manager Tenant Mapping for the Client

Flow

Specifies allowed flow for client (either AuthorizationCode, Implicit, Hybrid, ResourceOwner, ClientCredentials or Custom)

Client URI

URI to further information about client (used on consent screen)

Require Consent

Specifies whether a consent screen is required

Allow Remember Consent

Specifies whether user can choose to store consent decisions

Redirect URIs

Specifies the allowed URIs to return tokens or authorization codes to (comma separated list)

Post Logout URIs

Specifies allowed URIs to redirect to after logout (comma separated list)

Logout URI

Specifies logout URI at client for HTTP based logout (required for Single-Sign-Out)

Require Sign Out Prompt

Specifies if the client will always show a confirmation page for sign-out

Logout Session Required

Specifies if the user’s session ID should be sent to the Logout URI

Allow Access To All Scopes / Allowed Scopes

By default a client has no access to any scopes. Either specify the scopes explicitly here (recommended) or set AllowAccessToAllScopes to "true".

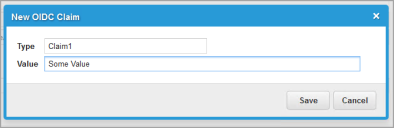

Additional claims can be added to the JWT that's generated using the OIDC_Claim child object:

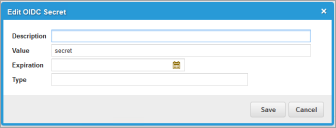

Some OIDC Flows (e.g. Hybrid) require a "secret" value that the Client must supply. Secrets are adding using the OIDC_Secret child object:

Only the Value field is required. The other fields are optional.

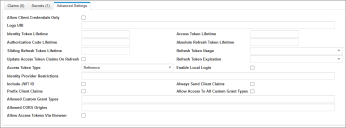

The OIDC_Client business object supports all the IdentityServer3 Client settings. The remaining settings are available via the Advanced Settings Form.

The configuration for the "MVC OWIN Implicit Client" example client is as follows.

Implicit Flow does not require a secret.
