If Workflow Block
The If workflow block allows a Boolean decision to be made between literal, system function, and global values. Depending on the outcome, the exit port can connect to a different block, creating a different path within the workflow. The exit ports in this block allow for paths based on true and false returns.

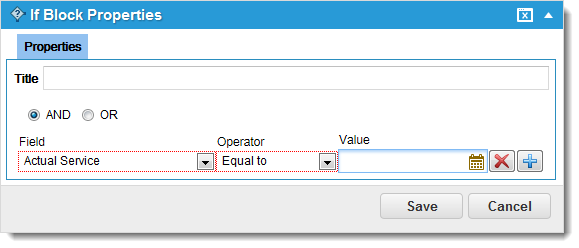

If Workflow Block Properties
Exit Ports
| Exit Port | Description |
|---|---|
| True | Where the workflow proceeds if the field expression is true. |
| False | Where the workflow proceeds if the field expression is false. |
Properties
| Property | Description |
|---|---|
| Title | A unique name for the workflow block. |
| Description | A summary description of the workflow or its starting point. |
| AND / OR | The first operator to apply. |
| Field | A field as an operand from the drop-down list |
| Operator |
An additional operator to apply. Select from the drop-down list. Equal to: The value in Field matches the value in Criteria. Not Equal to: The value in Field does not match the value in Criteria. Begin with: The value in Field starts with the value in Criteria.
Contains: The value in Field contains the string value in Criteria. Does Not Contain: The value in Field does not contain the string value in Criteria. Is Empty: Field does not contain any values. Is Not Empty: Field contains something (is not empty). |
| Value | The value. Select from the drop-down list |
Actions
| Button | Action |
|---|---|
|
Adds an expression to the workflow block. |
|
Removes an expression from the list. |
| Save | Commits your settings. |
| Cancel | Exits without saving. |
