Configuring LDAP Settings

Synchronization occurs only from the LDAP server to Neurons for ITSM, not from Neurons for ITSM to LDAP. The process runs only when changes are made to the LDAP source, such as Active Directory.

LDAP Port

For LDAP Active Directory, use port 389 for LDAP or port 636 for LDAPS. The protocol is TCP.

About the LDAP Content Synchronization Protocol

Neurons for ITSM uses the LDAP Content Synchronization Protocol (CSP), as described in RFC 4533 (https://tools.ietf.org/html/rfc4533) to implement incremental synchronization of LDAP server entries.

• Configure the LDAP server to support CSP. If CSP requires an optional component or plugin, install it.

•Ensure the identity used to access the LDAP server has the required permissions for the directory sub-tree being synchronized.

•The required components and permissions depend on the LDAP server type.

The LDAP CSP supports replication of any directory sub-tree for which the synchronization user has permission. Active Directory supports replication of root-level directory trees only. Because of this limitation, Ivanti ITSM also supports the older synchronization method based on version stamps in each record.

•Select Enable Incremental Updates to use this method.

•Use CSP for synchronizing entire directory roots.

•Use the older method if you need to synchronize a sub-tree or if your server does not support CSP.

OpenLDAP supports replication of both root-level directories and sub-trees. Other LDAP implementations may or may not support CSP and may restrict which directory levels can be synchronized. The older synchronization method is specific to Active Directory and cannot be used with other LDAP servers..

You can test your server connection with selected credentials.

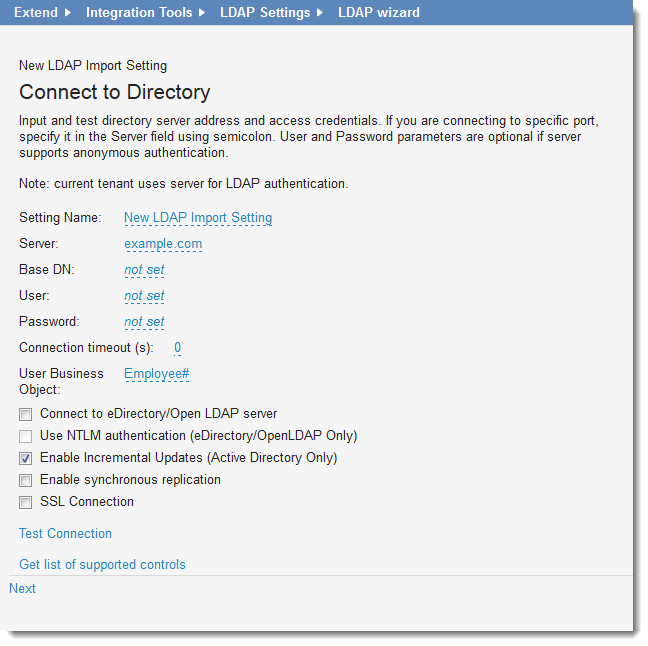

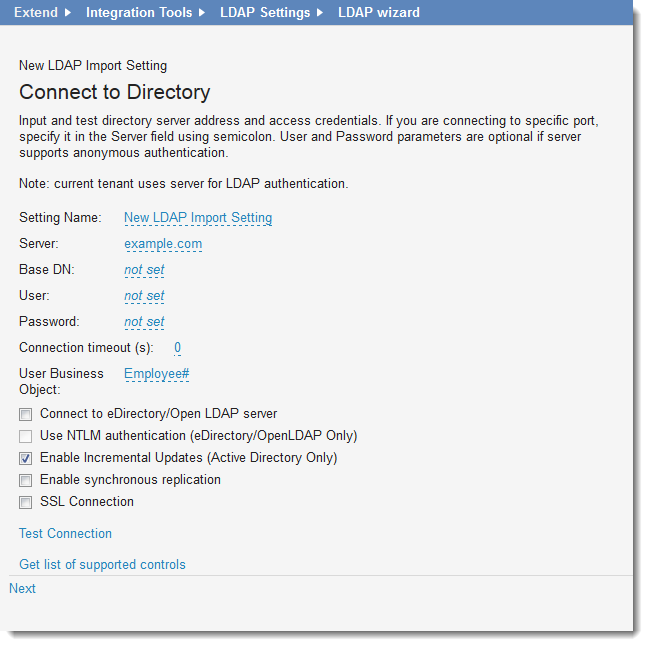

1.From the Configuration Console, click Extend > Integration Tools > LDAP Settings to open the LDAP Settings workspace.

2.Click Add New.

3.Enter information into the fields.

Field	Description
Setting Name	A unique name for this LDAP server connection.
Server	A valid LDAP server name or IP address (for example, 10.34.25.21). To connect to a specific port, append the port number with a semicolon servername:portnumber.
Base DN	The distinguished name for the LDAP object in the LDAP server. Value is not case sensitive.
User	Enter a user name if the server requires authentication.
Password	Enter a password if the server supports anonymous authentication.
Connection timeout	Specify the timeout period (in seconds). The application attempts to connect until the timeout expires. If unsuccessful, an exception message appears.
Create records of type	Select the type of records to create (employee or external contact).
Connect to eDirectory Open LDAP Server	Connects to eDirectory and the Open LDAP server.
Use NTLM authentication	If you selected Connect to eDirectory/Open LDAP server, you must also select this option. Open LDAP requires NTLM authentication.
Enable Incremental Updates	[Optional] Enables incremental updates through Active Directory if not using Connect to eDirectory/Open LDAP server.
Enable synchronous replication	[Optional] Enables synchronous replication. For more information, see  http://www.openldap.org/doc/admin22/syncrepl.html
SSL Connection	Provides a secure socket layer connection, if you are using LDAPS.

4.Click Test Connection to verify your connection.

5.Click Next.

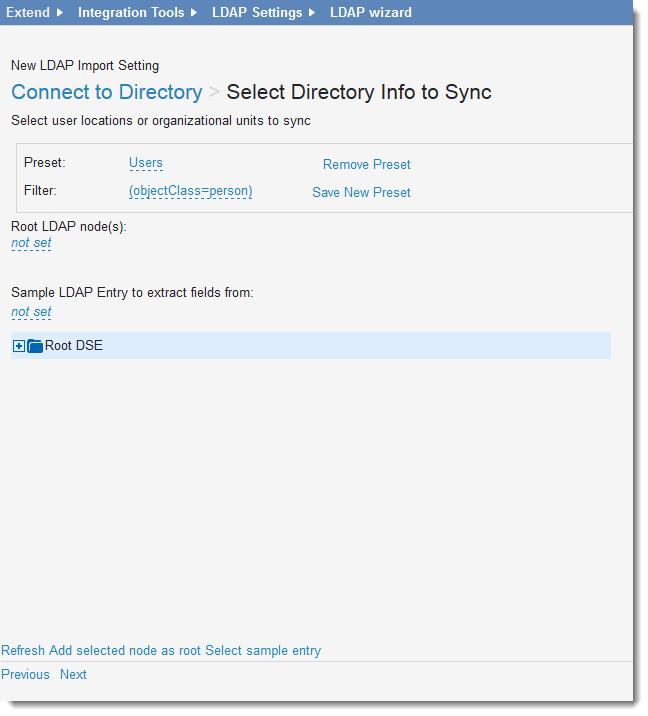

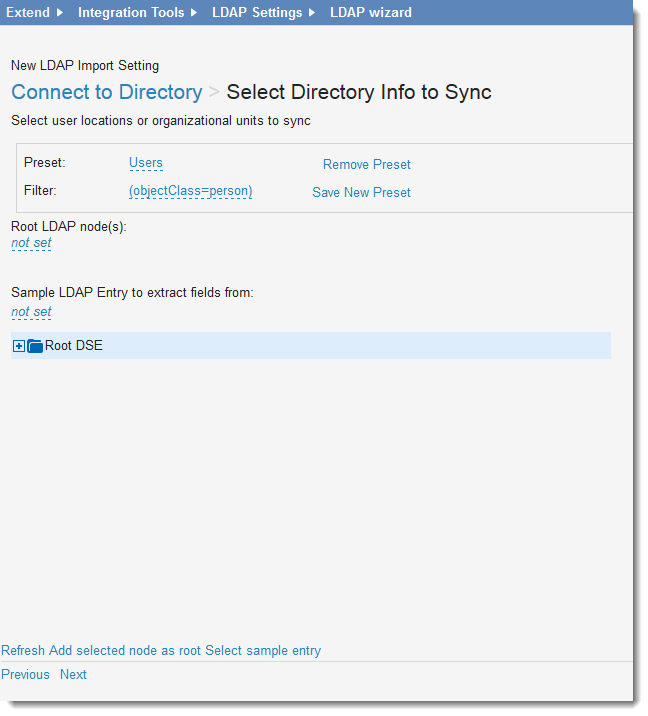

Enter user locations or organizational units to synchronize. If you change a user’s email address after the initial synchronization, subsequent synchronization attempts will fail.

1.Enter information.

Field	Description
Preset	Defines the LDAP object filter. Select a default search filter from the dropdown. The default is Users.
Filter	[Optional] Enter a valid filter string and click Save New Preset. The application adds the value to the Preset list. Click Remove Preset to delete the current value.
Root LDAP node(s)	Perform one of the following: To restrict LDAP searches, enter one or more valid root nodes. Use the LDAP directory browser to locate a directory, then click Add selected node as root.
Sample LDAP Entry to extract fields from	Do one of the following: Each LDAP entry belongs to an LDAP class and contains a set of fields. Use this option to add a sample LDAP entry containing fields to be retrieved in a fetch operation. Use the LDAP directory browser to locate a sample entry, then click Select sample entry. The entry shows the LDAP entry syntax, such as: CN=Class Name, OU=Organizational Unit, DC=domaincomponent1 (derived from company DNS domain components), DC=domaincomponent segment2 For example: CN=Barnard Jeffries,OU=Users,OU=Pleasanton,DC=companyX,DC=com

2.Click Refresh to update the window.

3.Click Next.

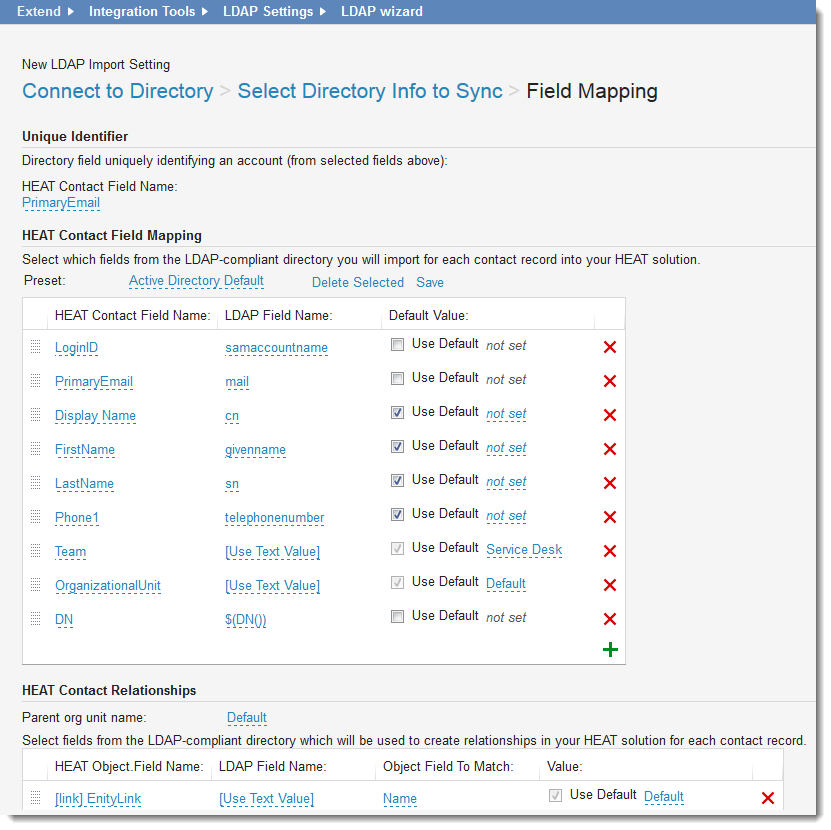

The Record Settings workspace enables field mapping, relationship mapping, role access, and advanced settings. The application displays fields based on the selections made in the previous step.

You can use expressions to transform values or apply complex logic during field mapping.

Examples of Field Mapping Using Expressions

1.Directory emails end in @domain.com. It must be transformed in Neurons for ITSM to end with @tenant.com.

The mapping expression is PrimaryEmail = $(if(Find('@domain.com', mail) > -1 then samaccountname + '@tenant.com' else mail)).

2.Map the Department field based on the distinguished name component.

If you call the DN() built-in function without parameters, the whole distinguished name is returned.

For CN=John Doe, OU=Developers, OU=Personnel, DC=Company LDAP entry, the mapping expression is Department = $(if(DN(1) == 'Developers' then 'Research & Development' else 'IT').

Expressions for Field Mapping

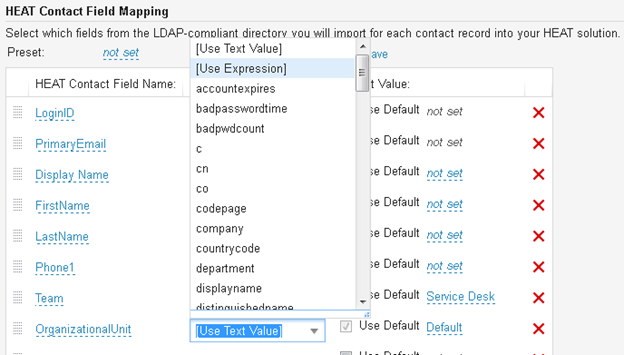

To enable expressions for field mapping, select [Use expression] in the LDAP field name control:

This invokes the Expression Editor. See About Expressions.

Edit your expression using LDAP entry fields and other functions from the properties and functions tree.

If an LDAP field name already contains an expression, the Expression Editor automatically appears. Selecting [Use Text Value] from the properties tree removes expression from the mapping. The expression is also disabled if $( symbols are not used in the beginning of the expression text.

Expressions for Relationship Mapping

This expression functionality is also enabled for relationship mapping.

LDAP synchronization can create an organizational unit if the required organizational unit does not exist. All new organizational units are created with a parent organizational unit selected in the parent organizational unit name control.

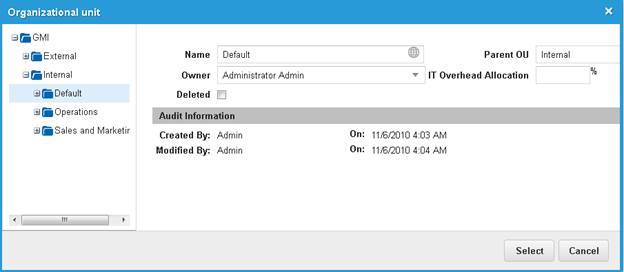

The parent organizational unit name control is a tree list selector where you can select organizational units in a user friendly form.

Examples of Mapping Expressions

The mapping expression $(if(DN(1) == 'Developers' then 'Research & Development' else 'IT')) says that two organizational units are required for the import: Research & Development, and IT.

These organizational units are created (if they did not exist before the import) and placed under the organizational unit in the tree which is selected as parent.

If the organizational unit already exists, it is used for import.

The application uses the default organizational unit by default.

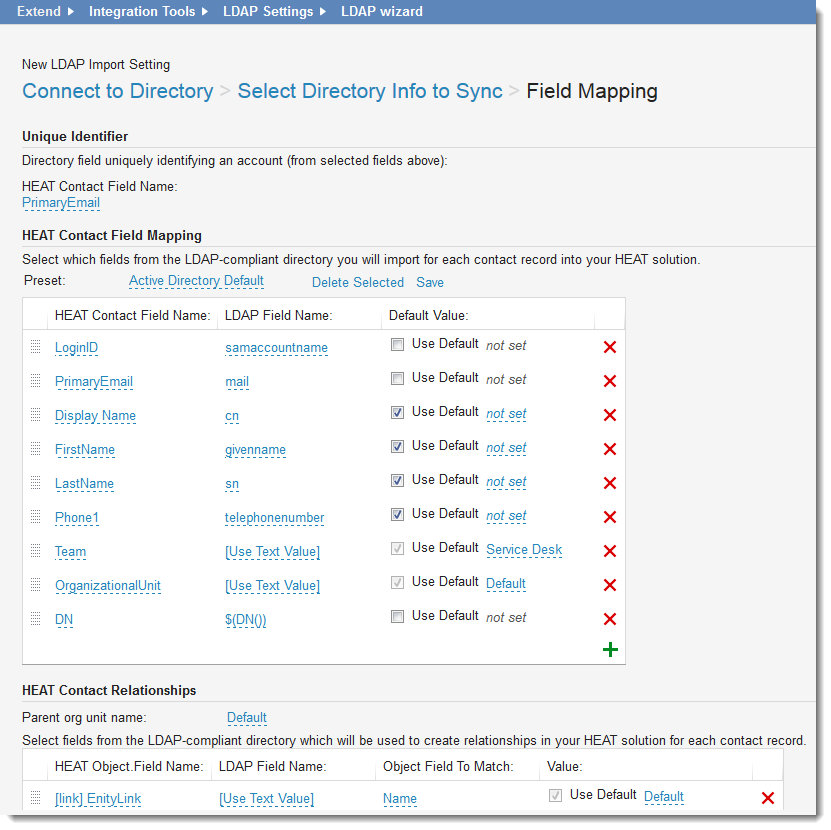

1.Click the Neurons for ITSMContact Field Name field and choose the field to use as the primary contact field. The default is PrimaryEmail.

2.Under Neurons for ITSMContact Field Mapping, from the Preset dropdown, choose a mapping file. The default list is Active Directory. When selected, the tables on this page are populated with default values. You can retain the defaults or add custom values.

Ivanti has tested only Active Directory as its LDAP directory service.

You must map the LoginID field to the LDAP user ID, or LDAP external authorization will not perform correctly.

3.Enter information into the field mapping table. You can use an expression for the LDAP field name.

•Fields represent field names in Neurons for ITSM. Directory fields are the field names in Active Directory.

•You can enter the attribute directly in the Directory field. If you enter a new attribute in the Directory field, you must select Use Default for the corresponding Value field.

•Creating new records using the LDAP import process works only for simple validation lists; for example, pick lists that are not constrained (such as department).

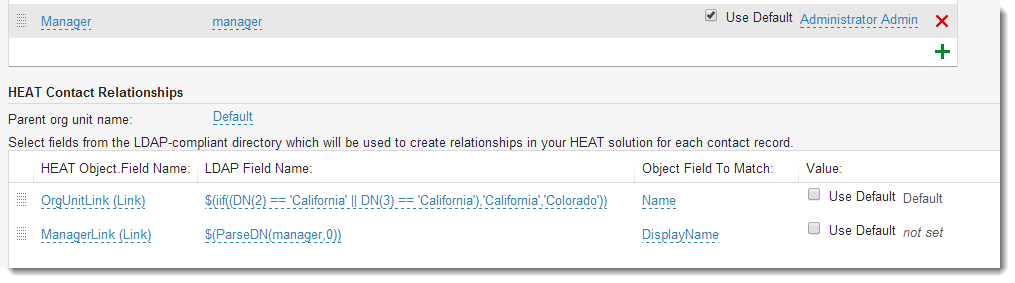

Field mapping expressions using comparison with if are case sensitive. For example, use the following expression for organizational unit: $(if((DN(2) == 'California') then 'California' else 'Colorado')).

If you used "california" (lower case "C"), then the return data is Colorado. To receive the correct data, in this case, use "California."

To map the Manager field, you can use the ParseDn() built-in function (See ParseDn).

4.Click the add icon to add a new entry (a table row).

•If you select [Use Text Value], the Value field becomes active. The text entered in this field is saved in the profile.

•If you select an LDAP field, the Use Default field becomes available. By default, this value is unchecked. During import, if the LDAP field is not found, the Value field is used.

•If you select an LDAP field, which is not in the menu, then you can enter that field name and click Check Default.

5.Under Neurons for ITSMContact Relationships, choose the parent organizational unit name, or choose Default. Select fields from the LDAP-compliant directory which will be used to create relationships in your Neurons for ITSM solution for each contact record. This relationship must match exactly.

For example, if you attempt to use the Manager field in Active Directory, the import will fail because this field includes an LDAP distinguished name instead of a simple user name or email address.

6.Click the add icon to add a new entry (a table row).

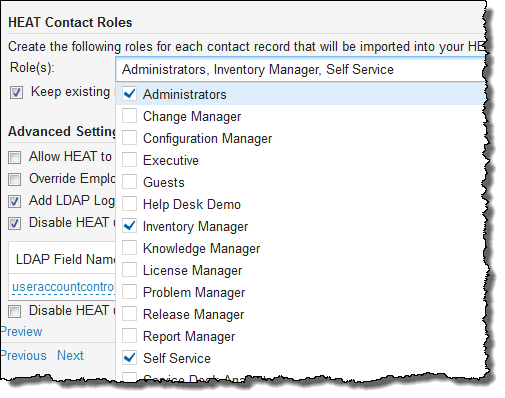

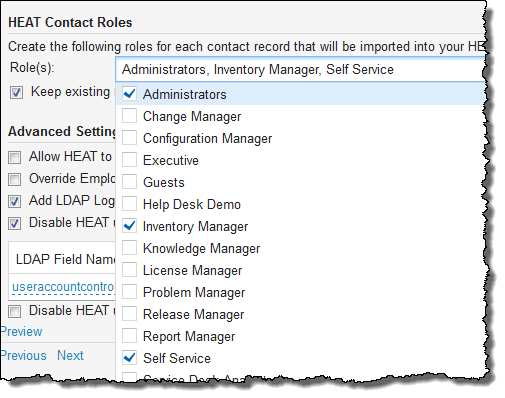

7.Under Neurons for ITSMContact Roles, add roles that can be imported using this connection. The default role is Self Service. Click Self Service to show the role list, then check the roles to include.

To retain the existing roles, check Keep existing roles. If checked, the import process keeps all assigned roles for existing contacts and then creates roles defined in the current record settings. If unchecked, the existing roles are deleted and the selected roles are added.

By default, Neurons for ITSM contacts that already exist before the import process runs keep their current roles and add the roles you have defined as part of the current record settings.

8.Under Advanced Settings, select any of the following:

Option	Description
Allow Ivanti to access LDAP directory when certificate is non-trusted.	Connects through SSL to the LDAP-compliant server even if the certificate is not trusted.
Override Employee Login	Overrides the employee login settings.
Add LDAP Login and Server to imported accounts.	Adds LDAP settings into the user profile record.
Disable Ivanti users who have been disabled in the LDAP-compliant directory using the value of the fields:	Disables existing Neurons for ITSM contacts during the import process if they are disabled in LDAP. Enter the field values to check for disabled users.
Disable Ivanti users who have been expired in the LDAP-compliant directory	Disables existing Neurons for ITSM contacts during the import process if they are expired in LDAP.
Import Groups	By default, the system imports only users. Select this checkbox to also import groups. When selected, the synchronization includes all groups available in the chosen sample entry.

9.Click Preview to see your data.

•From the Profile dropdown, choose defined LDAP entries to be used during synchronization according to the root LDAP nodes and filter parameters.

•Select a defined LDAP entry from the displayed list. LDAP entry field values are shown according to fields mapping settings.

•Close the window when finished.

10.Click Next.

1.Input any specific users that you do not want to synchronize.

•Put each DN regular expression on a separate line.

•Enter a list of regular expression patterns used to exclude LDAP entries from being imported during the synchronization.

For example, the pattern *OU=Development* excludes all entries with a DN containing the OU=Development substring.

•Add the patterns to the Exclude Items field, with each value listed on a separate line.

2.Click Next.

1.Click Synchronize now to start synchronization. The application imports the data and records the information in the LDAP import log.

2.Click Save.  The data is stored in table format on the main LDAP Synchronization page.

3.Click Sync Now to run the synchronization again.

You can create a scheduled LDAP synchronization workflow in the workflow editor using the LDAP sync workflow block. See LDAP Sync Workflow Block for more information.

4.Check Save plain LDAP password to database to save the LDAP password to the Neurons for ITSM database for internal authorization use within Neurons for ITSM. This action takes place during the synchronization process.
