About Analytic Metrics Dashboards and Charts

Role : Administrator

Creating a Dashboard

1.Log into the Service Desk console.

2.Open the Analytic Metrics workspace.

3.Click Edit Mode.

The application displays edit options at the top of the window.

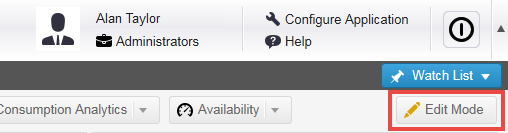

Analytic Metrics Edit Mode

4.From the upper leftcorner, click the add dashboard icon .

The application displays the Create Dashboard dialog box.

5.Enter information into the fields.

Field	Description
Title	Enter a title for the dashboard. The title appears in the tab.
Icon	Select an icon from the dropdown list. The icon appears in the tab before the title. If you do not select an icon, the application uses the default dashboard icon.
Snap	- Defines the height and width of charts on the dashboard. Both is a fully automatic setting .
Width (px)	Appears when horizontal snap is disabled.
Height (px)	Appears when vertical snap is disabled.

6.Click Save.

The application create a new, blank dashboard.

7.Add charts to the dashboard.

Adding Charts to a Dashboard

1.Log into the Service Desk.

2.Open the Analytic Metrics workspace.

3.Choose the dashboard to which you want to add a chart.

4.Do one of the following:

•From the top right side of the window, drag and drop Drag me to Add Chart onto the chart.

•If a chart already exists, position icons appear. Drop the new chart in one of the available positions: top, left, bottom, or right of the existing chart.

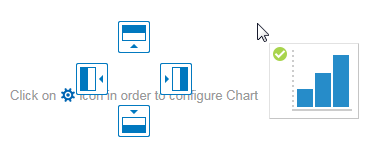

Dashboard Position Icons

The application displays the Select Metric and Chart Type dialog box.

5.Choose a metric template from the list on the left side. The application displays various chart types that are relevant to your data.

6.Choose a chart type and then click Advanced Configuration to further define your chart. See Chart Types.

7.Click Done.

The application generates the chart.

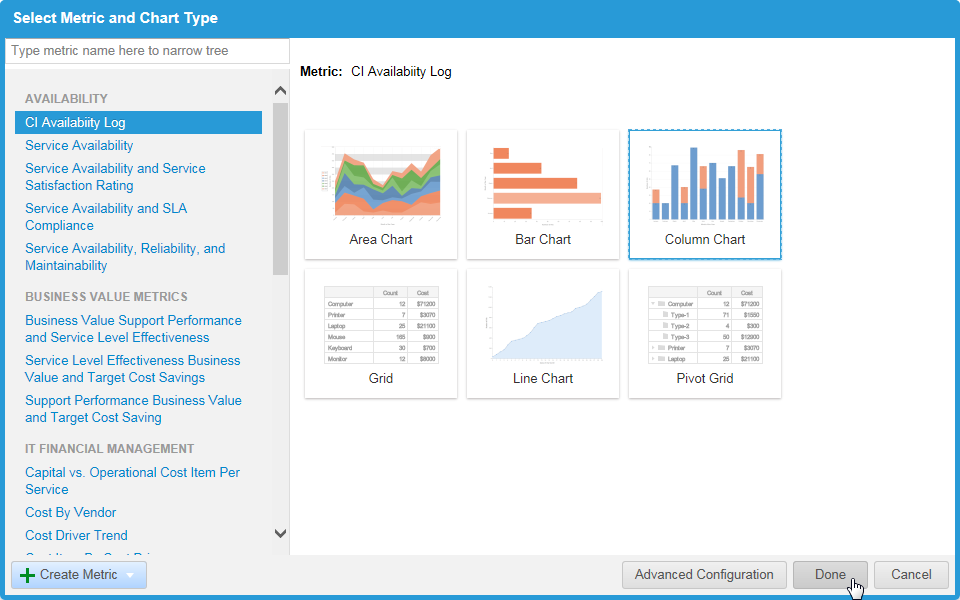

Select Metric and Chart Type Dialog Box

8.Click Edit Mode again to turn off edit mode.

The application automatically saves the dashboard.

Chart Types

The selection of available charts depends on the metric that the chart represents.

Area Chart

Area Chart for Analytic Metrics

The area chart shows graphically quantitative data. Based on the line chart, it compares an area with two or more quantities.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization	Count, Total Cost, and Average. Each tab is configured separately.
Visualization and colors	Double-click the color sample to change the color. Move the slider to set saturation value, 10% to 100%.
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Series Name	Includes the series type (such as count or average) in the hover-over information.
Source Name	Includes the chart title in the hover-over information.
Label	Includes the field name in the hover-over information.
Options
Use Logarithmic Y scale	Specifies to use a logarithmic Y scale.
Axes and Labels
Horizontal Axis Title	The label for the horizontal axis.
Vertical Axis Title	The label for the vertical axis.
Labels Font Size	The font size for the labels. 1 is the smallest, 10 is the largest.
Labels Orientation	Specifies orientation of the labels: Horizontal: Labels may overlap in some cases. Vertical: Rotated 90 degrees. Diagonal: Rotated 45 degrees.
Legend
Legend Font Size	The font size for the legend. 1 is the smallest, 10 is the largest.
Legend Presence	Specifies where the legend appears in relation to the chart: None: Does not display the legend. Left: Displays the legend at the left of the chart. Right: Displays the legend at the right of the chart. Top: Displays the legend above the chart. Bottom: Displays the legend below the chart.

Bar Chart

Bar Chart for Analytic Metrics

The bar chart shows data horizontally or vertically. It compares two or more fields; each bar can be separate or accumulative.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization	Count, Total Cost, and Average. Each tab is configured separately.
Values in a range from Minimum to Maximum should have color	The chart colors. These are based on the threshold values. To add ranges and define colors, click Add Threshold. The application displays a new line where you define the threshold values.
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Series Name	Includes the series type (such as count or average) in the hover-over information.
Source Name	Includes the chart title in the hover-over information.
Label	Includes the field name in the hover-over information.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open 2nd Group By Data if Available	Check to enable. When you click the chart, the workspace of the second data group opens and displays all records.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.
Options
Stack in one column	Stacks the data within each column, as opposed to showing the data in individual columns.
Use Logarithmic X scale	Uses a logarithmic X scale.
Axes and Labels
Horizontal Axis Title	The label for the horizontal axis.
Vertical Axis Title	The label for the vertical axis.
Labels Font Size	The font size for the labels. 1 is the smallest, 10 is the largest.
Labels Orientation	Specifies orientation of the labels: Horizontal: Labels may overlap in some cases. Vertical: Rotated 90 degrees. Diagonal: Rotated 45 degrees.
Legend
Legend Font Size	The font size for the legend. 1 is the smallest, 10 is the largest.
Legend Presence	Specifies where the legend appears in relation to the chart: None: Does not display the legend. Left: Displays the legend at the left of the chart. Right: Displays the legend at the right of the chart. Top: Displays the legend above the chart. Bottom: Displays the legend below the chart.

Column Chart

Column Chart for Analytic Metrics

The column chart shows data stacked vertically and is similar to the bar chart. It compares two or more fields; each column can be separate or accumulative.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization	Count, Total Cost, and Average. Each tab is configured separately.
Show As	Choose Line or Column.
Values in a range from Minimum to Maximum should have color	The chart colors. These are based on the threshold values. To add ranges and define colors, click Add Threshold. The application displays a new line where you define the threshold values.
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Series Name	Includes the series type (such as count or average) in the hover-over information.
Source Name	Includes the chart title in the hover-over information.
Label	Includes the field name in the hover-over information.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open 2nd Group By Data if Available	Check to enable. When you click the chart, the workspace of the second data group opens and displays all records.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.
Options
Stack in one column	Stacks the data within each column, as opposed to showing the data in individual columns.
Use Logarithmic Y scale	Specifies to use a logarithmic Y scale.
Axes and Labels
Horizontal Axis Title	The label for the horizontal axis.
Vertical Axis Title	The label for the vertical axis.
Labels Font Size	The font size for the labels. 1 is the smallest, 10 is the largest.
Labels Orientation	Specifies orientation of the labels: Horizontal: Labels may overlap in some cases. Vertical: Rotated 90 degrees. Diagonal: Rotated 45 degrees.
Legend
Legend Font Size	The font size for the legend. 1 is the smallest, 10 is the largest.
Legend Presence	Specifies where the legend appears in relation to the chart: None: Does not display the legend. Left: Displays the legend at the left of the chart. Right: Displays the legend at the right of the chart. Top: Displays the legend above the chart. Bottom: Displays the legend below the chart.

Gauge Chart

Gauge Chart for Analytic Metrics

The gauge chart shows the data relative to a larger number and is used for a single field. This is useful to see the data relative to a defined threshold.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization
Values in a range from Minimum to Maximum should have color	The chart colors. These are based on the threshold values. To add ranges and define colors, click Add Threshold. The application displays a new line where you define the threshold values.
Value Format	Value format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Maximum	The top number (maximum amount) of the gauge.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.

Grid

Grid Chart for Analytic Metrics

The chart shows data in a tabular format. Multiple fields can be listed.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization
Column Names	Depends on the business object chosen.
Values in a range from Minimum to Maximum should have color	The chart colors. These are based on the threshold values. To add ranges and define colors, click Add Threshold. The application displays a new line where you define the threshold values.
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Alignment	Choose text alignment in the columns: Left Center Right
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open 2nd Group By Data if Available	Check to enable. When you click the chart, the workspace of the second data group opens and displays all records.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.

Line Chart

Line Chart for Analytic Metrics

The line chart shows graphically quantitative data based on a single field.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization
Show As	Choose from the drop-down list: Line Column
Smooth Line	Check to smooth the line from point to point.
Filled	Check to fill in the chart under the line. The color for the data. Move the slider to set the color intensity value. 100% is full color, while 10% is very light.
Marker Type	Choose from the drop-down list: Circle Cross
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Series Name	Includes the series type (such as count or average) in the hover-over information.
Source Name	Includes the chart title in the hover-over information.
Label	Includes the field name in the hover-over information.
Precision	The number of digits used after the decimal symbol in the data value that appears in the hover-over information. Zero shows only whole numbers.
After Value	The string that appears after the data value in the hover-over information.
Before Value	The string that appears before the data value in the hover-over information.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open 2nd Group By Data if Available	Check to enable. When you click the chart, the workspace of the second data group opens and displays all records.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.
Options
Use Logarithmic Y scale	Specifies to use a logarithmic Y scale.
Axes and Labels
Horizontal Axis Title	The label for the horizontal axis.
Vertical Axis Title	The label for the vertical axis.
Labels Font Size	The font size for the labels. 1 is the smallest, 10 is the largest.
Labels Orientation	Specifies orientation of the labels: Horizontal: Labels may overlap in some cases. Vertical: Rotated 90 degrees. Diagonal: Rotated 45 degrees.
Legend
Legend Font Size	The font size for the legend. 1 is the smallest, 10 is the largest.
Legend Presence	Specifies where the legend appears in relation to the chart: None: Does not display the legend. Left: Displays the legend at the left of the chart. Right: Displays the legend at the right of the chart. Top: Displays the legend above the chart. Bottom: Displays the legend below the chart.

Chart Pie

Chart for Pie

The pie chart gives a snapshot of the value of several fields totally 100%.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Visualization
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.
Options
Make donut	Makes the center of the pie an empty circle.
Axes and Labels
Labels Font Size	The font size for the labels. 1 is the smallest, 10 is the largest.
Labels Type	Select the items to display: Label and Value: Displays the label by name and the numerical value. Absolute Value: Displays the numerical value. Percent Value: Displays the value as a percentage of the total. NOTE: When Absolute Value is selected, you can mouse-over the chart to see the label name. When Percent Value is selected, you can mouse-over the chart to see the label name and numerical value.
Labels Location	Select how you want to display the labels: Inside: All labels appear inside their segments. Outside: All labels are displayed horizontally outside their segments. Rotate: Labels that fit inside their segments are displayed inside their segments. Labels that do not fit are displayed horizontally outside. None: No labels.

Pivot Grid

Pivot Grid Chart for Analytic Metrics

Similar to a grid, the pivot grid chart lists data and subdata. Multiple fields can be listed.

Option	Description
Chart Title and Description
Title	The title of the chart, which appears above the chart. The application automatically generates this, but you can edit it.
Description	Optional. A description of the chart. Describes why the chart was created and what data it contains. This information does not appear on the chart.
Column Names	Depends on the business object chosen.
Visualization
Values in a range from Minimum to Maximum should have color	The chart colors. These are based on the threshold values. To add ranges and define colors, click Add Threshold. The application displays a new line where you define the threshold values.
Value Format
Before Value	Check to enable. Append text before the reported value. Example: $.
After Value	Check to enable. Append text after the reported value. Example: %.
Precision	Displays 0 to 5 places to the right of the decimal point.
Use 1000 Separator	Check to enable. Inserts a comma (,) before every 3 places to the left of the decimal point.
Period Type	Choose from the drop-down menu. Displays the reported value as a period of time. Choose a period in days, hours, minutes, or seconds. NOTE: Use this option only when the reported value is a period of time.
Format	Appears when you choose a period type. Choose the format best suited to your needs.
Drill Down
None	Does not open a workspace. Uncheck to enable the other options.
Open BO Name Workspace	Check to enable. When you click the chart, the workspace opens and displays all records.
And Filter Using Label and Series	Check to enable. When you click the chart, the workspace opens and displays records filtered by label and series as defined under Settings > Manage Metrics.
Confirm Navigation	Check to enable. Displays a confirmation dialog box before going to the workspace.

Managing Dashboard Elements

Modifying a Dashboard Name or Icon

1.Log into the Service Desk.

2.Open the Analytic Metrics workspace.

3.Click Edit Mode. The application displays the edit options at the top of the window.

4.Click the down arrow next to the name of the dashboard you want to modify and then choose the edit icon .

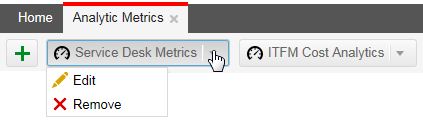

Clicking the Down Arrow Next to the Dashboard Name

The application displays the Edit Dashboard window.

5.Enter information into the fields.

Field	Description
Title	The title for the dashboard.
Icon	The icon to display. Choose an icon from the drop-down list.
Snap	Determines height and width of charts on the dashboard. Both is a fully automatic setting.
Width (px)	Appears when there is no horizontal snap.
Height (px)	Appears when the is no vertical snap.

6.Click Save.

The application displays the new name and icon in the tab.
