Customizing the Column Headers

You can easily customize the way information is displayed within any of the Virtual Inventory panes.

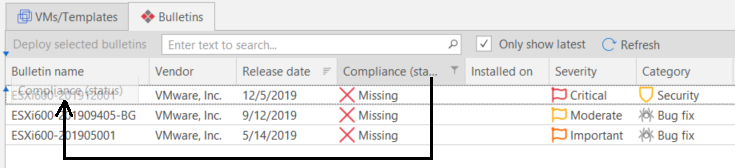

  • You can reorder the columns by clicking and dragging the column headers to new locations.

    • For example, if you want missing bulletin information to be displayed in the first column, simply click on the Compliance (Status) column header and drag it to the first column.

    TIP: When reordering columns, the column header you are moving will always be placed in front of the column you drag it to.

  • You can apply filters to one or more column headers.

    • Hover over a column header and then click the filter icon located in the upper-right corner. For example:

    Use the filter menu to select which of the values currently contained in the column should be displayed. When you apply a column filter, the filter definition will be displayed beneath the pane. You can use this to confirm which column filters have been applied and to edit the filter. For example:

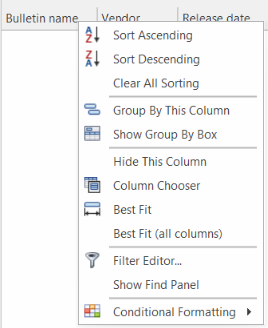

  • You can right-click within a column header and perform a number of additional actions.

Command

Description

Sort Ascending

Sorts the selected column in ascending order.

Sort Descending

Sorts the selected column in descending order.

Clear Sorting

Clears the ascending or descending sorting criteria currently set for a column.

Group By This Column

Groups the table using the data in the selected column. It does this by moving the data into expandable lists that are located in the body of the grid. One expandable list will be created for each possible column value.

If you perform this action on any subsequent columns, that data will be presented as nested groups at increasingly lower levels within the expandable lists.

If Show Group By Box is enabled, this will also create a "Group By" box in the area immediately above the column headers.

TIP: To turn off the Group By This Column feature and revert to the original view: Enable Show Group By Box, drag the Group By boxes back to the column header and then right-click in the column header and select Hide Group By Box.

Show Group By Box / Hide Group By Box

Displays or hides an area immediately above the column headers that contains "Group By" boxes. One Group By box will be displayed for each column header for which Group By This Column is currently enabled. You can also drag column headers to and from this area.

The table will be grouped according to the data in the box. If there are two or more boxes then the grouping will be nested, with the left-most box presented at the highest level, the second box presented at the second level, etc.

Hide This Column

Removes the column from the table. You can add the column back to the table using the Column Chooser.

Column Chooser

Enables you to add and hide information within a pane. When you select Column Chooser the Customization dialog is displayed. This dialog is used to store the columns you don't currently want displayed within the pane. Simply click and drag the desired column headers from the table to the Customization dialog. If you decide you want an item back in the table, simply click and drag it from the Customization dialog back to the table.

Best Fit

Resize the width of the selected column so that the header text is displayed in the optimal amount of space.

Best Fit (all columns)

Resize the width of all columns in the table so that the header text is displayed in the optimal amount of space.

File Editor

The Filter Editor dialog will show any filters that are currently active in the column headers. You can use the editor to modify the existing filter criteria and to build new criteria using the available filter conditions and logical operators.

Show Find Panel / Hide Find Panel

Displays or hides a search box that you can use to find specific patches or text related to any of the patches contained in the patch data file. Here are a few tips for using the search box:

  • The search works only on the information currently visible in the grid
  • All partial matches are displayed
  • The use of wildcards is not allowed

Conditional Formatting

Enables you to highlight information within the table based on criteria that you set.
