Customizing the Patch View Column Headers

Show Me!

A video tutorial is available on this topic. To access the video, click the following link:

Overview Information

You can easily customize the way information is displayed within Patch View.

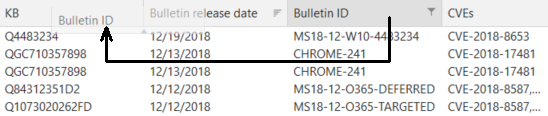

You can reorder the columns by clicking and dragging the column headers to new locations.

For example, if you want Bulletin ID information to be displayed in the first column of the top pane, simply click on the Bulletin ID icon and drag it to the first column.

TIP: When reordering columns, the column header you are moving will always be placed in front of the column you drag it to.

You can apply filters to one or more column headers.

Hover over a column header and then click the filter icon located in the upper-right corner. For example:

Use the filter menu to select which of the values currently contained in the column should be displayed. When you apply a column filter, the filter definition will be displayed beneath the pane. You can use this to confirm which column filters have been applied to the current display, and you can edit the filter. For example:

You can right-click within a column header and perform a number of additional actions.

Action	Description
Sort Ascending	Sorts the selected column in ascending order. The table will be sorted first using the information in the first column and then by the column you selected.
Sort Descending	Sorts the selected column in descending order. The table will be sorted first using the information in the first column and then by the column you selected.
Clear All Sorting	Clears the ascending or descending sorting criteria currently set for a column.
Group By This Column	Groups the table using the data in the selected column. It does this by moving the data into expandable lists that are located in the body of the grid. One expandable list will be created for each possible column value. If you perform this action on any subsequent columns, that data will be presented as nested groups at increasingly lower levels within the expandable lists. If Show Group By Box is enabled, this will also create a "Group By" box in the area immediately above the column headers. TIP: To turn off the Group By This Column feature and revert to the original view: Enable Show Group By Box, drag the Group By boxes back to the column header and then right-click in the column header and select Hide Group By Box.
Show Group By Box / Hide Group By Box	Displays or hides an area immediately above the column headers that contains "Group By" boxes. One "Group By" box will be displayed for each column header for which Group By This Column is currently enabled. You can also drag column headers to and from this area. The table will be grouped according to the data in the box. If there are two or more boxes then the grouping will be nested, with the left-most box presented at the highest level, the second box presented at the second level, etc.
Hide This Column	Removes the column from the table. You can add the column back to the table using the Column Chooser.
Column Chooser	Enables you to add and remove information from Patch View. When you select Column Chooser the Customization dialog is displayed. This dialog is used to store the columns you don't currently want displayed within the table. Simply click and drag the desired column headers from the table to the Customization dialog. For example, if you decide you want to add the Patch release date column to the table, simply drag that column header from the Customization dialog to the table. If you decide you want an item back in the table, simply click and drag it from the Customization dialog back to the table.
Best Fit	Resize the width of the selected column so that the header text is displayed in the optimal amount of space.
Best Fit (all columns)	Resize the width of all columns in the table so that the header text is displayed in the optimal amount of space.
Filter Editor	The Filter Editor dialog will show any filters that are currently active in the column headers. You can use the editor to modify the existing filter criteria and to build new criteria using the available filter conditions and logical operators.
Conditional Formatting	Enables you to highlight information within the table based on criteria that you set.
