Interfaces

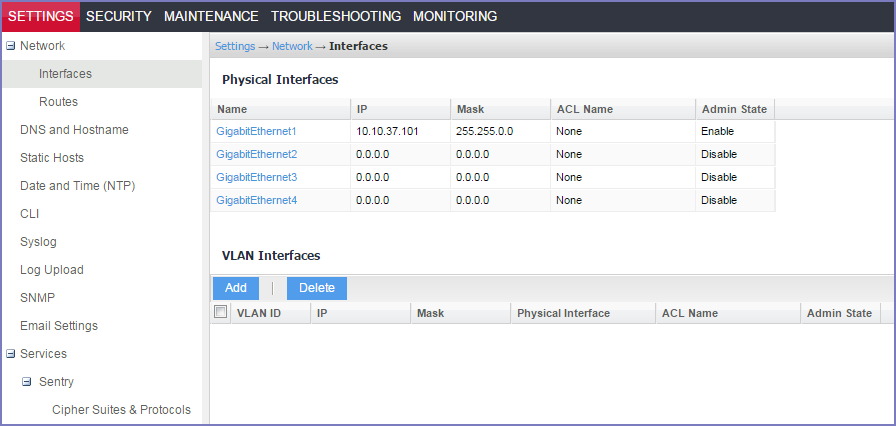

The Settings > Interfaces screen enables you to change parameters for the network interface points for Standalone Sentry:

•physical and VLAN interfaces

•static routes

You configure a physical network interface as part of the installation process. You can use the Interfaces screen to:

•Edit the physical interface settings specified during installation

•Add physical interfaces

•Add VLAN interfaces

•Change VLAN interfaces

Changing physical interfaces

To change a physical interface:

1.

Click the interface name.

2.

Change any or all of the following fields:

Field	Description
IP	Enter the IP address of the physical network interface. Unless you are configuring a standalone implementation for a small trial, you should specify at least one physical interface.
Mask	Enter the netmask of the physical network interface.
ACL Name	Select an Access Control List for this interface.
Admin State	To enable this interface for use with the MobileIron system, click Enable. To temporarily prevent use of this interface with the MobileIron system, click Disable.

3.

Click Save.

Adding VLAN interfaces

Virtual Local Area Network (VLAN) interfaces are optional interfaces you can configure on MobileIron UEM to manage bandwidth and load balancing.

To add a VLAN interface:

1.

Click Add VLAN.

2.

Use the following guidelines to complete the configuration:

Field	Description
VLAN ID	Specify a number between 2 and 4094.
IP Address	Enter the IP address for this VLAN interface.
Mask	Enter the netmask for this VLAN interface.
Physical Interface	Select the physical interface that corresponds to this VLAN interface.
ACL Name	Select an Access Control List for this interface. See Access Control Lists.
Admin State	To enable this interface, click Enable. To temporarily suspend use of this VLAN, click Disable.

3.

Click Save.

Deleting a VLAN interface

To delete a Virtual Local Area Network (VLAN) interface:

1.

Select the VLAN you want to remove.

2.

Click Delete VLAN.
