Networks and Hosts

Use the Networks and Hosts screen to manage the servers and subnets you will use to compile Access Control Lists (ACLs).

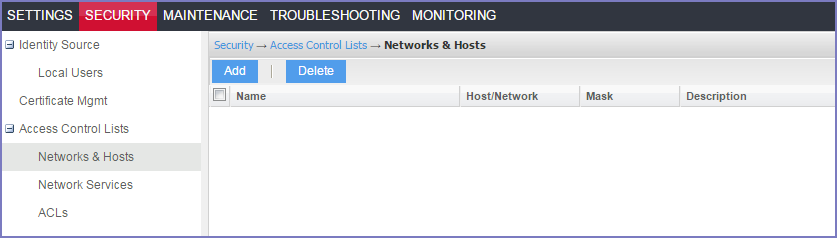

Figure 1. Network and hosts

Adding a host or subnet for compiling ACLs

To add a host or subnet for compiling ACLs in the Ivanti Standalone Sentry System Manager, go to Security > Access Control Lists > Network & Hosts.

Procedure

1. Click Add.

Figure 2. Add network hosts

2. Use the following guidelines for completing the displayed form:

Field

Description

Name

Enter a name to use to identify this host or network.

Description

Enter additional text to provide supporting information about this host or network.

Type

Select Subnet or Host from the dropdown menu.

Network/Host

Enter the IP address for this network or host.

3. Click Save.

This host or network will now be available for ACLs configured in the ACLs screen.
