MobileIron M2200 Series appliance

The MobileIron appliance is a tightly integrated hardware, OS, application, and data-base solution that is built, optimized, and certified by MobileIron. The following table lists the M2200 appliance specifications.

table 1. MobileIron M2200 Series appliance Specifications

Operating environment





Processor

3.5 GHz Quadcore Xeon CPU

Memory

32 GB

Drives

2x 500 GB Hot-swap SAS3

12.0 GB Hard Disk

12G HW RAID w/ 1G

1x Slim DVD drive

 Chassis





Form factor

19” 1U Rackmount

Dimensions (D x H x W)

19.8” x 1.7” x 17.2” (503mm x 43mm x 437mm)

Weight

32 lbs (16.5 kg)

 Front panel







Buttons

Power On/Off

System Reset

LEDs

Power LED

Hard Drive Activity LED

2x Network Activity LED

System Overheat LED

USB

2x USB Ports

Drives

600 GB Hot swap SAS

12.0 GB Hard Drives (RAID1)

1x Slim DVD Drive

 Back panel









IPMI

Intelligent Platform Management Interface (IPMI) 2.0 with virtual media over LAN and KVM-over-LAN support; 1x 10/100BASE-T (RJ45)

Ethernet

2x 10/100/1000BASE-T (RJ45)

VGA

1x VGA (DB15)

USB

4x USB Ports

Serial

1x Serial port (DB9)

 Power supply





Power

400W (1+1) Redundant Gold-level power supply with PMBus and I2C

Voltage

100 – 240V, 50-60Hz, 6-3A

+5V standby: 3A

+12V: 33A

+5V: 25A

-12V: 0.6A

Connector

IEC 60320-C13

Operating environment



Operating

Temperature: 50° to 95°F (10° to 35°C)

Relative Humidity: 8% to 90% (non-condensing)

Approximate maximum heat dissipation under normal operation based on MobileIron’s configuration: 1262 BTU/hr

Non-operating

Temperature: -40° to 158°F (-40° to 70°C)

Relative Humidity: 5% to 95% (non-condensing)

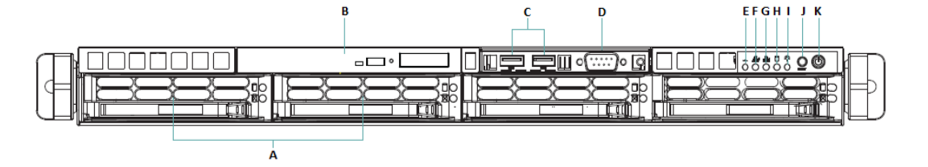

M2200: front panel

The following figure, key, and LED table describe the M2200 front panel.

Figure 1. M2200 front panel

M2200 front panel key:

  1. 600G HDDs
  2. Slim DVD-ROM
  3. USB ports
  4. Serial port
  5. Informational LED
  6. NIC-2 Activity LED
  7. NIC-1 Activity LED
  8. HDD Activity LED
  9. Power LED
  10. Reset button
  11. Power button
table 2. Informational LED Fields

LED status

Description

Solid red

An overheat condition has occurred. This may be caused by cable congestion.

Blinking red (1Hz)

A fan has failed. Check for an inoperative fan.

Blinking red (0.25Hz)

A power failure occurred. Check for a non-operational power supply.

Solid blue

Location UID has been activated. Use this function to locate the server in a rack-mount environment.

Blinking blue (300 msec)

Remote UID is on. Use this function to identify the server from a remote location.

M2200: back panel

The following figure and key describe the M2200 back panel.

Figure 2. M2200 back panel

M2200 back panel key:

  1. Power supply
  2. Power supply
  3. COM port
  4. IPMI LAN
  5. USB ports
  6. USB ports
  7. LAN1 port
  8. LAN2 port
  9. VSG port
