App-specific configuration legacy data flow

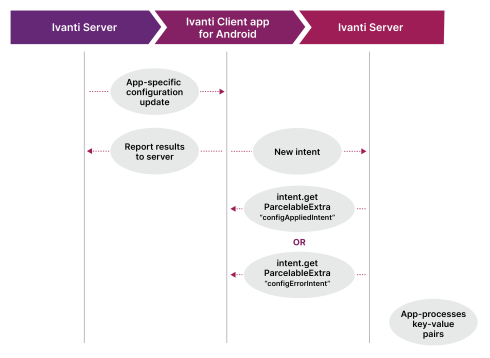

The following sequence diagram shows the flow of data between the Ivanti server, the Ivanti client app, and your app when the Ivanti server administrator has updated the app-specific configuration on the server:

App-specific configuration data flow

When your app first runs and requests the configuration, the sequence begins with your app sending a "com.mobileiron.REQUEST_CONFIG" intent to the Ivanti client app. After that, the sequence continues as shown in the diagram.
