What you configure on Core to use derived credentials

The following diagram summarizes the MobileIron Core configuration for using derived credentials, and shows whether you do the configuration on the System Manager or the Admin Portal.

The table following the diagram:

• Describes each configuration task.
• Indicates to which derived credential providers and device platform (iOS or Android) the task applies.

Note The Following:

• The task list assumes you use Apps@Work to distribute apps to iOS devices. However, using Apps@Work is not required. Various methods are available for device users to get the app on their iOS devices. Therefore, tasks related to using Apps@Work are optional.
• The task list assumes that you want device users to register Mobile@Work using a registration PIN rather than with a user ID and password, since typically, device users who use smart cards do not have passwords. However, using a registration PIN is a requirement only with Entrust derived credentials. For other derived credential providers, it is not a requirement, and therefore the related tasks are optional.

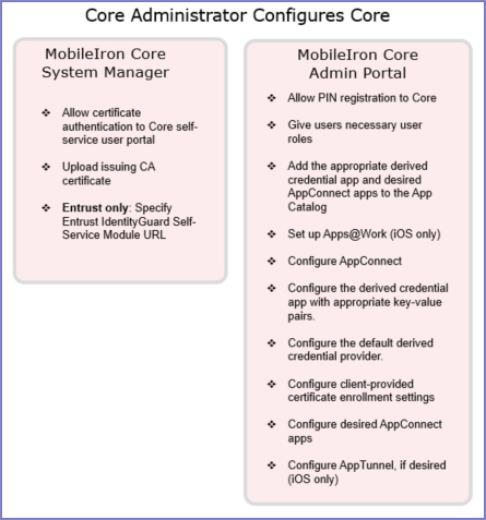

Figure 1. Derived credential configuration summary on MobileIron Core



Table 1. Derived credentials configuration tasks on MobileIron Core

Task

Notes
1. Allow device users to authenticate to the MobileIron Core self-service user portal with the identity certificate on their smart cards.

Allowing certificate authentication includes uploading to Core a valid issuing (CA) certificate or a valid supporting certificate chain.

Entrust

This task is required for Entrust derived credentials, because it is a prerequisite for configuring Core to use the Entrust IdentityGuard Self-Service Module (SSM) URL.

All other derived credentials providers

Although not strictly required for other derived credential providers, device users who use smart cards typically do not have passwords. Therefore, if you want them to be able to access the self-service user portal to, for example, generate a registration PIN, this step is required.
2. Provide the Entrust IdentityGuard Self-Service Module (SSM) URL to Core.

Entrust

Core uses this URL to get derived credentials from Entrust. The device user will use the PIV-D Manager app to activate the derived credential on a device.
3. Allow device users to register Mobile@Work on their devices to Core using a one-time registration PIN.

Entrust

This task is required for Entrust derived credentials because device users need a registration PIN to request an Entrust derived credential.

All other derived credentials providers

Although not strictly required for other derived credential providers, device users who use smart cards typically do not have passwords. Therefore, if you want them to be register Mobile@Work using a one-time registration PIN, this step is required.
4. Give device users the necessary user roles to use the MobileIron Core self-service user portal.

All derived credentials providers

From the user portal, the device users can:

• generate the one-time registration PIN.
• reset their AppConnect passcode, if they forget it. An AppConnect passcode is necessary for a device user to access AppConnect apps.

Additionally, when using Entrust

From the user portal, device users get an Entrust derived credential, which includes getting the Entrust activation password to enter later on the device to activate the derived credential. This capability has no corresponding user portal role.
5. Add the derived credential app to the App Catalog on Core.

Entrust on Android

Add the PIV-D Manager app for Android to the App Catalog on Core.

Entrust and DISA Purebred on iOS

Add the PIV-D Manager app for iOS to the App Catalog on Core

Other derived credential providers on iOS

Add the appropriate third-party derived credential app to the App Catalog on Core.

NOTE FOR iOS DEVICES:

• For iOS devices, although the app is required on the device, this task is optional because it assumes you use Apps@Work, which is not required. Various methods are available for device users to get the app on their iOS devices.
6. Add the AppConnect apps that will use the derived credential to the App Catalog on Core.

All derived credentials providers

NOTE FOR iOS DEVICES:

• For iOS devices, although the app is required on the device, this task is optional because it assumes you use Apps@Work, which is not required. Various methods are available for device users to get the app on their iOS devices.
7. Set up Apps@Work for device users.

All derived credentials providers

iOS only

This task assumes you use Apps@Work for iOS.

However, various methods are available for device users to get apps on their devices.

8. Configure AppConnect.

All derived credentials providers

Configuring AppConnect allows device users to use AppConnect apps, including the derived credential app.
9. Configure the PIV-D Manager app for iOS.

Configure the PIV-D Manager app for iOS as follows:

Entrust

• Configure the Entrust activation URL that Core sends to the PIV-D Manager app so that the app can activate the device user’s derived credentials.
• Configure a unique device identifier that the PIV-D Manager app sends to the Entrust IdentityGuard server. The identifier allows an administrator to determine which device contains a given derived credential, allowing control around auditing and revocation.

DISA Purebred

• Configure the PIV-D Manager app to support DISA Purebred derived credentials.

For both Entrust and DISA Purebred

• Configure the PIV-D Manager app to turn on or off analytics reporting.
• Configure the PIV-D Manager app to allow the device user to send feedback to a specified email address.
10. Configure the PIV-D Manager app for Android.

Entrust on Android

Configure the PIV-D Manager app for Android to:

• receive the Entrust activation URL from Core so that it can activate the device user’s derived credentials.
• send a unique device identifier to the Entrust IdentityGuard server. The identifier allows an administrator to determine which device contains a given derived credential, allowing control around auditing and revocation.
11. Configure a third-party iOS derived credential app.

On iOS, derived credential providers other than Entrust or DISA Purebred

You configure a third-party derived credential app to receive app-specific settings from Core, as defined by the app vendor or developer.
12. Configure the default derived credential provider.

All derived credentials providers

iOS only

Select which derived credential provider is the default choice. If necessary, add a derived credential provider to the list.
13. Configure client-provided certificate enrollment settings.

All derived credentials providers

The activated derived credentials are stored in Mobile@Work for iOS or Secure Apps Manager for Android. You configure an AppConnect app to use derived credentials by referencing a client-provided certificate enrollment setting from the app’s AppConnect app configuration (or Web@Work setting or Docs@Work setting).

You configure a client-provided certificate enrollment setting for one of these purposes, as needed: authentication, signing, encryption, or decryption.

NOTE: The certificate enrollment setting is called client-provided because Mobile@Work for iOS or Secure Apps Manager for Android, known as client apps, provide the identity certificate to the AppConnect app.
14. Configure Web@Work.

All derived credentials providers

This task is necessary only if your device users use Web@Work

15. Configure Docs@Work.

All derived credentials providers

This task is necessary only if your device users use Docs@Work.
16. Configure Email+.

All derived credentials providers

This task is necessary only if your device users use Email+.
17. Configure third-party and in-house AppConnect apps.

All derived credentials providers

This task is necessary only if your device users use other AppConnect apps that use derived credentials.
18. Configure AppTunnel with
HTTP/S tunneling to use derived credentials.

All derived credentials providers

iOS only

This task is necessary only if you want to use:

• Kerberos authentication to the backend resource, and
• AppTunnel to the backend resource

Using AppTunnel with HTTP/S tunneling, you authenticate the user to the Standalone Sentry using a derived credential.

19. Configure AppTunnel with
TCP tunneling to use derived credentials.

All derived credentials providers

iOS only

This task is necessary only if you want to use:

• certificate authentication to the backend or web resource, and
• AppTunnel to the backend or web resource

Using per-app VPN with MobileIron Tunnel for iOS (AppTunnel with TCP tunneling), AppConnect apps can authenticate to the backend resource with a derived credential.
