Configuring Integrated Sentry

After completing the Integrated Sentry installation, continue with the setup configuration of Integrated Sentry in the setup wizard.

Procedure

1. Enter the information requested in the configuration screen.

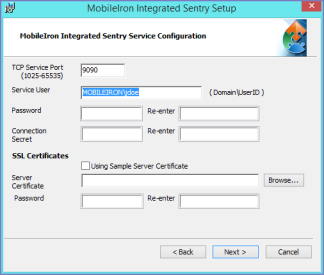

Figure 1. Integrated Sentry configuration screen

2. Click Next
3. Click Finish.

Next steps

  • Add an entry for Integrated Sentry to MobileIron Core. See “Adding an entry for Integrated Sentry in MobileIron Core” in the MobileIron Sentry Guide for MobileIron Core.
  • If you were upgrading, see Reconfiguring Integrated Sentry on MobileIron Core.

Related topics.

See Description of Integrated Sentry service configuration fields for a description of the fields in the Integrated Sentry configuration screen

Description of Integrated Sentry service configuration fields

The following table describes the configuration fields for Integrated Sentry.

table 1. Integrated Sentry Servic optionse Configuration

Item

Description

TCP Service Port

Default is 9090, but you can set it to any port not already in use. Make sure MobileIron Core can communicate to the MobileIron Integrated Sentry on this port.

Service User

Specify a user account that is on the server on which you are installing Integrated Sentry.

The user account will run the windows service. By default the user account is the user logged on to the Windows machine when running the installer.

If you are using Microsoft 2010, the account should also be available on the Exchange server where it should have Exchange Admin privileges.

If you are using Office 365, the service account for Integrated Sentry is different from the account used to sync with Office 365. The service account for Office 365 is configured in MobileIron Core.

Password

Specify the password for the Service User.

Re-enter

Enter the password for the Service User again.

Connection Secret

Enter a password to use as a connection secret. You enter the same value when you configure this Integrated Sentry on MobileIron Core with the Admin Portal.

If you are connecting this version of Integrated Sentry to the same Microsoft Exchange 2010 server as your previous Integrated Sentry version, use the same connection secret. By using the same secret, you don’t have to change the secret on Core.

Re-enter

Enter the connection secret again.

SSL Certificates

Select “Using Sample Server Certificate” to use the default certificate provided in the installation.

NOTE: We strongly recommend installing a certificate that MobileIron Core trusts on Integrated Sentry. The certificate can be issued by a publicly trusted certificate authority (CA) or a CA that Core trusts.
