Admin

Use the Admin page to manage MobileIron Core instances and update the MobileIron Cloud API user details.

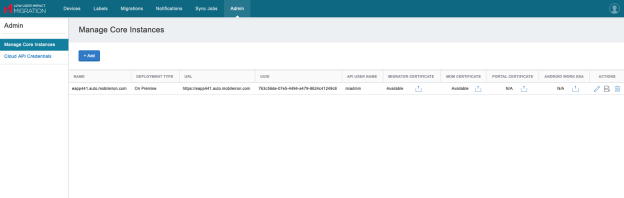

Figure 1. The Admin page

Configuring MobileIron Cloud API credentials

When you log in to the Migration Portal, you are prompted to configure the MobileIron Cloud API credentials if you have not done so already. Use the same procedure to modify any existing credentials.

Before you begin

For MobileIron Cloud API credentials, one of the following set of roles is mandatory in MobileIron Cloud for the migrations to succeed:

• All of the following roles:
  • Low User Impact Migration Management
  • User Management
  • Device Management (necessary only if the migrating device has custom device attributes assigned to it in MobileIron Core)
  • LDAP User Registration and Invite
  • Device Action
• Or, the following roles:
  • System Management
  • Low User Impact Migration Management

Procedure

1. Go to the Admin > Cloud API Credentials page.
2. Enter the following details of the MobileIron Cloud user with the previously specified set of roles:
   • User name
   • Password
   • Confirm Password
3. Click Save.

NOTE:

If the credentials for the MobileIron Cloud or MobileIron Core instances are invalid, if they are not authorized, or if they are not reachable, some features may not be available until valid credentials and roles are provided and/or until connectivity is restored.

Managing MobileIron Core instances

By default, when you visit the Admin page, the Manage Core Instances page is displayed with a list of MobileIron Core instances. A MobileIron Core instance cannot be configured against multiple MobileIron Cloud tenants.

The following roles should be assigned to the MobileIron Core user being added to the Migration Portal for the migrations to succeed:

• Migration
• API (only required for notifications in Migration Portal)
• View device page, device details

Adding a MobileIron Core instance

Procedure

1. Go to the Admin > Manage Core Instances page.
2. Click +Add.
3. Enter the following details related to the MobileIron Core instance:
   • Name
   • Description
   • Deployment Type (On Premise or Connected Cloud)
   • Instance Name (required in the case of Connected Cloud)
   • URL (For example, https://mdm.company.com/)
   • API User Name
   • API Password
   • Confirm API Password
4. Click Save.

Modifying a MobileIron Core instance

Procedure

1. Go to the Admin > Manage Core Instances page.
2. For a specific MobileIron Core instance, click the pencil icon under the Actions column.
3. Modify any of the following details related to the MobileIron Core instance:
   • Name
   • Description
   • Deployment Type (On Premise or Connected Cloud). If Connected Cloud is chosen as the deployment type, enter the instance name as well.
   • API User Name
   • API Password
   • Confirm API Password
4. Click Save.

Click the SQL icon to export SQL query. This query is used to update device status on MobileIron Core in case of high-availability (HA) switchover to a secondary node.

Removing a MobileIron Core instance

This procedure only removes the MobileIron Core instance entry from the Migration Portal. The instance will continue to operate.

A MobileIron Core instance cannot be removed:

• During a migration progress.
• If the Core instance is being used by other entities. For example, one or more devices in Cloud are associated with the Core instance.
• If there are any sync jobs being performed for the Core instance, that Core instance cannot be removed.

The removal of a Core instance is non-recoverable. All entries will be permanently deleted from the Migration Portal and MobileIron Cloud databases. However:

• If the Cloud service is unavailable or not reachable, then the Migration Portal database changes are rolled back. An appropriate error message is displayed.
• If the Cloud service is reachable but the Core instance is not available or not found in Cloud, then it will be noted in the Migration Portal logs and the Core instance will be removed.

Procedure

1. Go to the Admin > Manage Core Instances page.
2. For a specific MobileIron Core instance, click the trash icon under the Actions column.
3. Click OK to confirm removing the MobileIron Core instance.

Uploading or modifying certificates for a MobileIron Core instance

You can upload or modify the following certificates for a MobileIron Core instance:

• Migrator Certificate - For Connected Cloud type MobileIron Core instances, the option to upload migrator certificate will not be available as it will be automatically uploaded by the system. Administrators can contact their MobileIron Professional Services representative for the first instance upload of the migrator certificate of a Connected Cloud cluster.
• MDM Certificate - When the migrator and the MDM certificates are not uploaded, migration will fail. Select automatic or manual upload of a MDM certificate.
• Portal Certificate - Upload the portal certificate only when all the devices are migrated and when you want to shutdown the MobileIron Core instance.
• Android Work ESA - Fetch Android Enterprise Service Account (ESA) from Core and upload it to Cloud. This will enable Cloud to manage Android Enterprise devices.

Procedure

1. Go to the Admin > Manage Core Instances page.
2. For a specific MobileIron Core instance, click the upload icon under the Migrator Certificate, MDM Certificate, Portal Certificate, or Android Work ESA column as per the requirement.
3. For MDM Certificate:
   1. Select Auto Configure or Manual Upload.
   2. Click Submit.
   3. If you select the Auto Configure option, the MDM Cert is fetched from Core and uploaded to Cloud. Click OK to continue.
   4. If you select the Manual Upload option, continue with the next steps.
4. Drag and drop the certificate file or click the Choose File... button to browse and select the certificate. Only .p12 certificate files are supported.
5. Enter certificate password and confirm certificate password.
6. Click Upload.
