MobileIron Core upgrade information

This section describes the following upgrade information for the current release of MobileIron Core.

NOTE: MobileIron Core and Enterprise Connector should be running the same version and the same build.

Before you begin

Read Before you upgrade .

Support community

Use the information in this section for upgrade information specific to this release. For detailed instructions on how to upgrade MobileIron Core using this upgrade information, refer to the MobileIron Core System Manager Guide, available in MobileIron Core Product Documentation.

MobileIron Core upgrade readiness checklists

This section provides checklists to help you successfully complete the upgrade process for Core and Sentry software. The checklists include:

Pre-Upgrade checklist

Before you upgrade, we encourage you to do a pre-upgrade checklist.

Table 1. Pre-upgrade checklist

Check

Tasks

References



Prepare and plan for downtime

  • Core (1 - 3 hours)
  • Sentry (5 - 20 minutes)



Review relevant documentation

Core product documentation page



Check certificates

  • iOS Enrollment, Portal HTTPS, Client TLS certificates

    NOTE: When using mutual authentication, the Portal HTTPS certificate must be a publicly trusted certificate from a well-known Certificate Authority. For details, see “Mutual authentication between devices and MobileIron Core” in the MobileIron Core Device Management Guide.
  • MDM Certificate (check a month before expires)
  • Local CA

Knowledge Base article: Renewing an expired local CA certificate.



Check Boot partition

Verify you have at least 35 MB free for /boot. See Check disk space availability in this document for details on how to perform this check.

Knowledge Base article: Core Upgrade: Increase Boot Partition to 1GM if Avail Space is less than 35MB.



Ensure there is enough disk space

  • Old File System (2 GB /mi and 5 GB /mi/files)
  • New File System (10 GB /mi)

Knowledge Base article: Resizing Disk Partition of a Core Virtual Machine.



Check for new system requirements

  • Minimum 80 GB hard drive
  • If there is insufficient storage, increase the available disk space using the procedure outlined in Resizing Disk Partition of a Core Virtual Machine
  • Call MobileIron support if issues persist when physical appliances and VMs have the minimum required disk space configured
  • Port 8443 for Summary MICS - MobileIron Configuration Service (that is, the service that supports System Manager.)



Review your backup and high availability options

  • Physical backup: built in backup, showtech all
  • VMware backup: VDMK backup, snapshot
  • High Availability: confirm HA version 2.0

Knowledge Base article: How to tell if your Core has HA 2.0
If using HA 1.0, contact MobileIron Professional Services to upgrade to 2.0.



Set up your proxy configuration (if required)

Manually set the upgrade URL and use HTTP instead of HTTPS.



Prepare test devices

  • Client: Get clean test devices, open client and check-in, check iOS log
  • Core: Note the watchlist and label numbers

Upgrade considerations

After the pre-upgrade planning, we recommend you review the following considerations:

Table 2. upgrade considerations

Check

Considerations

References



DB Schema and Data

Run pre-validation check after downloading the repository from System Manager. If this task fails, contact MobileIron Support.



Understand the stages

  • Download vs. Stage for install
  • Reboot when the system displays:
    Reboot to install https://<serverFQDN>:8443/upgrade/status



Leverage CLI upgrade commands (as appropriate)

MobileIron Core Command Line Interface (CLI) Reference



Understand scenario options

  • Single server
  • High availability:
    Option 1: little downtime: 1) upgrade secondary 2) upgrade primary
    Option 2: zero downtime: 1) upgrade secondary 2) failover to secondary 3) upgrade primary 4) re-establish sync

Download guide: MobileIron Core High Availability Management Guide
Review section: HA Core Software Upgrade Procedures



Monitor the upgrade

  • Log into the Admin Portal
  • Select Logs > MDM Logs > States > Waiting xml generation pending
  • Monitor upgrade status using:
    https://<serverFQDN>:8443/upgrade/status



Additional reboot

Due to a kernel upgrade, an additional reboot is performed when you upgrade. It may take longer than expected for MobileIron Core to become available on the network.



Upgrade impact on Windows devices

In some cases, when an administrator initiates Reset PIN for a Windows Phone 10 device, the device does not return a new pin for that device.

For more information, see the following knowledge base article: https://help.mobileiron.com/s/article-detail-page?Id=kA134000000QxnLCAS



Ports

HTTPS/ port 443 is the default port for fresh installations, but upgraded environments keep the previous port open, for example, port 8080.

Post-Upgrade checklist

MobileIron recommends the following checklist after completion of the upgrade.

Table 3. Post-upgrade checklist

Check

Tasks

References



Testing and troubleshooting

  • Log into the System Manager
  • Select Maintenance > Software Updates > Software Version
  • Verify that the new version is listed
  • DO NOT re-boot the system once the upgrade process has begun
  • Call MobileIron Support for further investigation



Verify services

  • Log into the Admin Portal
  • Select Services > Overview
  • Click Verify All



Verify devices

  • Register a new device
  • Re-enroll/check-in existing devices



HA system cleanup

  • Set secondary back to secondary
  • Confirm sync

Check disk space availability

Before you upgrade, check disk space availability. At least 35 MB of disk space must be available in the /boot folder for an upgrade to be successful.

If at least 35 MB of disk space is not available in the /boot folder, contact MobileIron Technical Support before proceeding with the upgrade.

Use one of the following methods to check disk space availability:

The CLI command: show system disk

The following sample output shows the available disk space in the last line. It is 15M in this example.

CORE(8.5.0.1a-6)@host.company.com#show system disk

Filesystem Size Used Avail Use% Mounted on

/dev/sda3 181G 20G 153G 12% /

tmpfs 16G 4.0K 16G 1% /dev/shm

/dev/sda1 95M 76M 15M 84% /boot

The System Manager

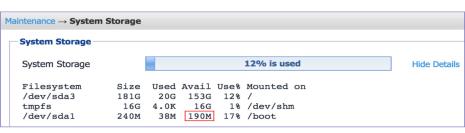

The System Manager > Maintenance > System Storage menu shows you how much Core system storage you are using, and how much is still available.

Procedure

  1. In the System Manager, go to Maintenance > System storage.
  2. Click More Details next to the System Storage bar that shows percent used.
  3. In this example, the available disk space is 190M.

MobileIron Core upgrade paths

MobileIron recommends the following upgrade paths, which are fully tested and supported.

Supported upgrade paths to Core 11.1.0.0

  • 10.8.0.0 → 11.1.0.0

  • 10.8.0.1 → 11.1.0.0

  • 11.0.0.0 → 11.1.0.0

  • 11.0.0.1 → 11.1.0.0

  • 11.1.0.0 (GMRC) → 11.1.0.0

MobileIron Core upgrade URL

To upgrade MobileIron Core:

Use the following URL if you specify an alternate URL:

https://support.mobileiron.com/mi/vsp/11.1.0.0-32/mobileiron-11.1.0.0-32

Backing up MobileIron Core

MobileIron recommends you make a local backup of MobileIron Core before starting an upgrade. For more information on backing up MobileIron Core, see the MobileIron Core System Manager Guide.

MobileIron Core end of sale and support policy

For details on the MobileIron Core end of sale and support policy, go to: https://help.mobileiron.com/s/article-detail-page?Id=kA134000000QyXYCA0
