Retrieving the nSA API details using Browser
To view and download the nSA rest APIs, perform the following:
1.Log in to nSA ICS using any of browser for example: Chorme, Mozilla).

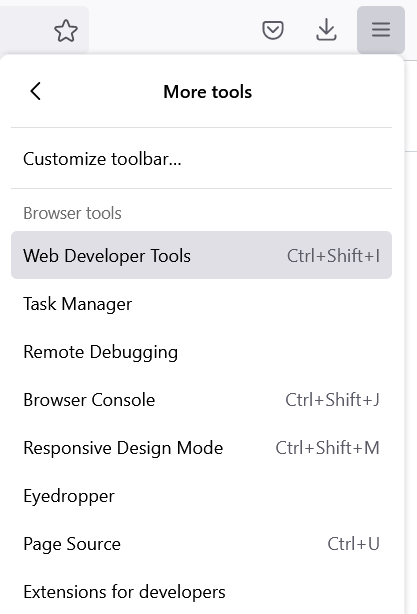

2.Open your Browser > Click on the Right Corner 3 Vertical Dots > More Tools > Developer Tools as shown in the below image.

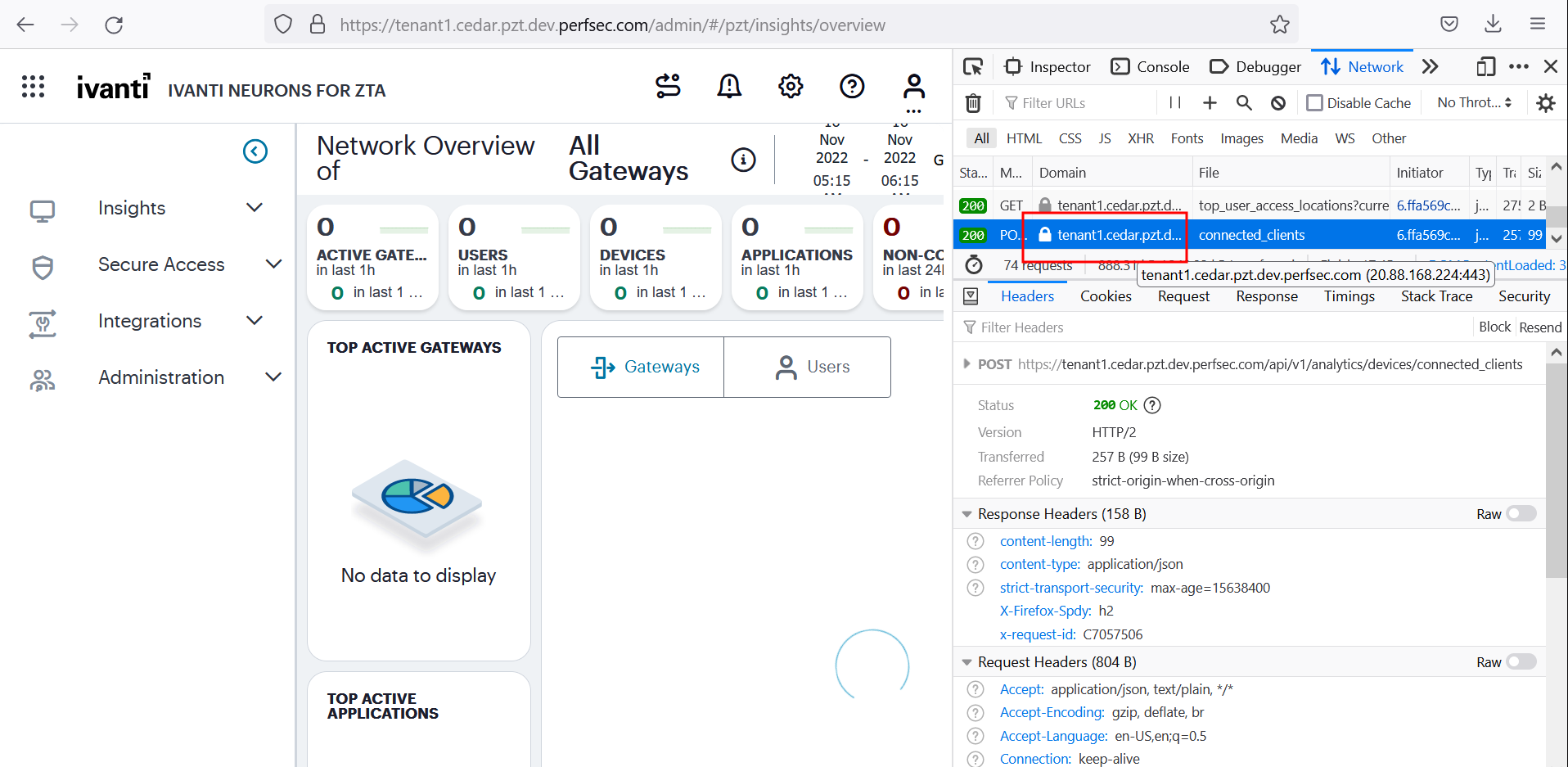

3.Select Network tab, this list all the APIs which are in use to load a UI Page.

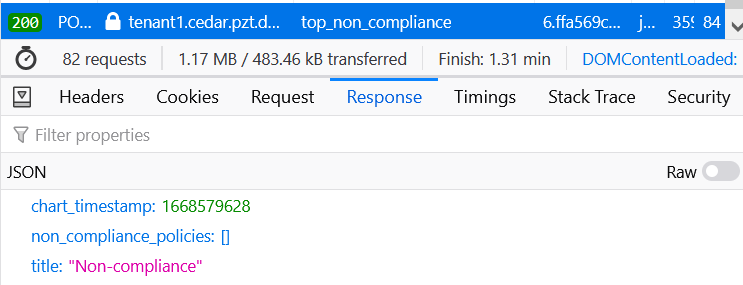

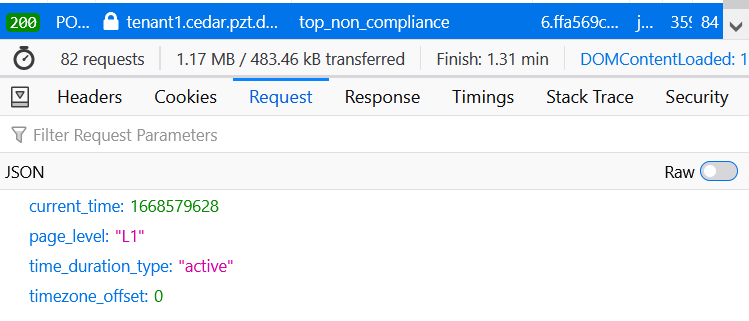

4.Click Request tab to see the payloads and Response tab to see the return value.
5.Click on the link, shown in step 3 figure and you can see Json, Raw Data, and Headers tabs. You can Save and Copy.
nSA Rest API
Gateway Registration
Copy
Post <IP address>/api/v1/nsa/register
REQUEST
{
"reg_host_fqdn":"xxxxxxxx",
"reg_code":"xxxxxx",
"nw_interface":"internal",
"use_proxy":"false"
}
RESPONSE
{
"success":"Successfully triggered registration"
}
Gateway Registration Status
Copy
Get <IP address>/api/v1/nsa/registration-status
REQUEST
Get <IP address>/api/v1/nsa/registration-status
RESPONSE
{
"gateway-id": "xxxxxxxxxxx",
"notification-status": "success",
"notification-status-message": "The Notification Channel is Connected.",
"notification-url": "wss://marjoram4.e.marjoram.pzt.dev.perfsec.com/api/v1/notifications",
"reg-status-message": "success",
"reg-status-message": ""
}
Ribbon Summary Counts
Copy
POST /api/v1/analytics/summary
REQUEST
{
"current_time": 1580515200,
"start_time": 1580515200,
"time_duration_type": "day",
"timezone_offset": 330,
"gateway_type": "pcs",
"overlay_filter_type": "non_compliance_users",
"global_filter": {
"gateway_ids": [
"74h4h3-u43943-4u3o4",
"84h4h3-u43943-4u3o5"
]
}
}
RESPONSE
[
{
"status": 73,
"name": "device",
"description": "Active devices vs. Connected devices",
"actual_value": 16,
"total_value": 25,
"line_graph_data": [
1,
2,
3
],
"line_graph_color": "green",
"trend_direction": "up",
"trend_delta": 5
}
]
Gateway Map View
Copy
POST /api/v1/analytics/pcs_location_view
REQUEST
{
"current_time": 1580515200,
"start_time": 1580515200,
"time_duration_type": "day",
"timezone_offset": 330,
"gateway_type": "pcs",
"overlay_filter_type": "non_compliance_users",
"global_filter": {
"gateway_ids": [
"74h4h3-u43943-4u3o4",
"84h4h3-u43943-4u3o5"
]
}
}
RESPONSE
{
"bubble_items": [
{
"granularity": "city",
"city": "Austin",
"country": "USA",
"continent": "North America",
"id": "new_york",
"bubble_color": "Green",
"latitude": 48.5,
"longitude": 71.923,
"num_gws_good": 1,
"num_gws_warning": 1,
"num_gws_critical": 1,
"num_gws_offline": 1,
"total_gateways": 10,
"active_users": {
"count": 76,
"color": "Green",
"num_nonCompliance_users": 1
},
"active_devices": {
"count": 76,
"color": "Green"
},
"active_sessions": {
"count": 76,
"color": "Green"
},
"non_compliance_count": {
"count": 76,
"color": "Green"
},
"user_location_bubble_items": [
{
"id": "san_jose",
"city": "Bengaluru",
"latitude": 48.5,
"longitude": 71.923,
"num_active_users": 200
}
]
}
],
"count": 10
}
Gateway User specific Map View
Copy
POST /api/v1/analytics/pcs_users_location_view
REQUEST
{
"current_time": 1580515200,
"start_time": 1580515200,
"time_duration_type": "day",
"timezone_offset": 330,
"gateway_type": "pcs",
"overlay_filter_type": "non_compliance_users",
"global_filter": {
"gateway_ids": [
"74h4h3-u43943-4u3o4",
"84h4h3-u43943-4u3o5"
]
}
}
RESPONSE
{
"bubble_items": [
{
"granularity": "city",
"city": "Bengaluru",
"country": "India",
"continent": "North America",
"bubble_color": "Green",
"latitude": 48.5,
"longitude": 71.923,
"avg_risk_score": {
"count": 76,
"color": "Green"
},
"num_active_users": 10,
"num_high_risk_users": 1,
"num_moderate_risk_users": 1,
"num_low_risk_users": 1,
"num_no_risk_users": 1
}
],
"count": 10
}
Plotting Sanky Chart
Copy
POST /api/v1/analytics/pcs_l1_sankey_chart
REQUEST
{
"current_time": 1580515200,
"start_time": 1580515200,
"time_duration_type": "day",
"timezone_offset": 330,
"gateway_type": "pcs",
"overlay_filter_type": "non_compliance_users",
"global_filter": {
"gateway_ids": [
"74h4h3-u43943-4u3o4",
"84h4h3-u43943-4u3o5"
]
}
}
RESPONSE
{
"user_groups_to_device_types": [
[
{
"source": "Bangalore",
"target": "Windows",
"value": 10
}
]
],
"device_types_to_gateway_names": [
[
{
"source": "Bangalore",
"target": "Windows",
"value": 10
}
]
],
"gateway_names_to_application_names": [
[
{
"source": "Bangalore",
"target": "Windows",
"value": 10
}
]
]
}
Top Active Gateways
Copy
POST /api/v1/analytics/widgets/top_gateways
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664"
}
RESPONSE
[
{
"name":"pcs-bng","value":28
}
]Top Device Types
Copy
POST /api/v1/analytics/widgets/top_device_types
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664"
}
RESPONSE
{
"title": "TOP DEVICE TYPES",
"device_types": [
{
"name": "bucket1",
"value": 314
}
]
}
Top User Locations
Copy
POST /api/v1/analytics/widgets/top_user_access_locations
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664"
}
RESPONSE
{
"title": "TOP USER ACCESS LOCATIONS",
"user_access_locations": [
{
"name": "bucket1",
"value": 314
}
]
}
Active Session Duration
Copy
POST /api/v1/analytics/widgets/top_session_durations
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664"
}
RESPONSE
{
"buckets": [
{
"name": "35 Min(s) - 2 Hour(s)",
"session_end_time": 1649156400,
"session_start_time": 1649152800,
"value": 28
}
],
"chart_timestamp": 1649158524,
"title": "Session Times"
}
Connected Clients Active Users
Copy
POST /api/v1/analytics/devices/connected_clients
REQUEST
{
"gateway_type": "pcs",
"current_time": 1649158826,
"time_duration_type": "active",
"timezone_offset": 0,
"users": "active"
}
RESPONSE
{
"connected_devices": [
{
"type": "Android 7.0",
"values": [
{
"count": 2,
"name": "9.1.7.4075 Mozilla"
}
]
},
{
"type": "Ubuntu",
"values": [
{
"count": 2,
"name": "9.1.11.5655 Mozilla"
}
]
},
{
"type": "Windows 7",
"values": [
{
"count": 2,
"name": "9.1.12.5655 Mozilla"
}
]
},
{
"type": "iOS 12.0",
"values": [
{
"count": 3,
"name": "9.1.10.5655 Mozilla"
}
]
},
{
"type": "Android 8.0.0",
"values": [
{
"count": 1,
"name": "9.1.9.4075 Mozilla"
}
]
},
{
"type": "Windows",
"values": [
{
"count": 2,
"name": "9.1.8.4075 Mozilla"
}
]
}
]
}
Connected Clients All Users
Copy
POST /api/v1/analytics/devices/connected_clients
REQUEST
{
"gateway_type": "pcs",
"current_time": 1649158826,
"time_duration_type": "active",
"timezone_offset": 0,
"users": "all"
}
RESPONSE
{
"connected_devices": [
{
"type": "Android 7.0",
"values": [
{
"count": 2,
"name": "9.1.7.4075 Mozilla"
}
]
},
{
"type": "U
]buntu",
"values": [
{
"count": 2,
"name": "9.1.11.5655 Mozilla"
}
},
{
"type": "Windows 7",
"values": [
{
"count": 2,
"name": "9.1.12.5655 Mozilla"
}
]
},
{
"type": "iOS 12.0",
"values": [
{
"count": 3,
"name": "9.1.10.5655 Mozilla"
}
]
},
{
"type": "Android 8.0.0",
"values": [
{
"count": 1,
"name": "9.1.9.4075 Mozilla"
}
]
},
{
"type": "Windows",
"values": [
{
"count": 2,
"name": "9.1.8.4075 Mozilla"
}
]
}
]
}
Non Compliances
Copy
POST /api/v1/analytics/users/top_non_compliance_by_policy
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664"
}
RESPONSE
{
"chart_timestamp": 1649159279,
"non_compliance_policies": [
{
"name": "HCPolicy3_OSCheck",
"values": [
{
"name": "HcResultFullNonCompliance",
"value": 1
},
{
"name": "HcResultPartialCompliance",
"value": 1
}
]
},
{
"name": "HCPolicy4_File&Process",
"values": [
{
"name": "HcResultFullNonCompliance",
"value": 1
},
{
"name": "HcResultPartialCompliance",
"value": 1
}
]
},
{
"name": "HCPolicy1_Antivirus",
"values": [
{
"name": "HcResultFullNonCompliance",
"value": 1
}
]
},
{
"name": "HCPolicy2_Firewall",
"values": [
{
"name": "HcResultFullNonCompliance",
"value": 1
}
]
},
{
"name": "HCPolicy5_Pred&Custom",
"values": [
{
"name": "HcResultFullNonCompliance",
"value": 1
}
]
}
],
"title": "Non-Compliance"
}
Pre-Auth Non Compliances
Copy
POST /api/v1/analytics/users/pcs_pre_auth_nc?count=5
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"current_time":"1649153664",, 'category': 'device_os_type'
}
RESPONSE
{
"chart_timestamp": 1649159279,
"title": "Non-Compliance",
"top_pre_auth_nc_items_by_category": []
}
Gateway Info Panel
Copy
POST /api/v1/analytics/widgets/top_gateways/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"active_users_count",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"id": "feicie-cneineoic-nfeie-32he",
"gateway_name": "eng-mkn-gw-1",
"city_name": "bangalore",
"overall_color": "green",
"gateway_status": "active",
"number_of_issues": 10,
"cpu_line_graph_data": "string",
"memory_line_graph_data": "string",
"disk_used_line_graph_data": "string",
"active_users_count": 10,
"active_devices_count": 10,
"active_sessions_count": 10,
"active_applications_count": 10,
"non_compliance_count": 10,
"issues_highest_severity": "CRITICAL",
"issues_details": [
{
"message_id": "NTP12456",
"raw_message": "NTP server is not reachable",
"issue_timestamp": 3848462926,
"number_of_issues": 23
}
],
"system_uptime": 10748,
"last_config_update_timestamp": 1063264,
"ssl_sessions_count": 10,
"auth_only_sessions_count": 10,
"active_sync_device_count": 10,
"is_node_part_of_cluster": true,
"cluster_properties": {
"cluster_id": "9ccf22b9fe9ccf22b9fe",
"cluster_name": "CoaGroup",
"cluster_type": "Active/Active",
"cluster_node_type": "active",
"cluster_member_type": "leader",
"is_vip_owner": false,
"is_node_reachable": true,
"is_node_enabled": false
}
}
],
"count": 10,
"all_gateway_count": 10,
"active_gateway_count": 5,
"offline_gateway_count": 5,
"online_gateway_count": 5,
"unregistered_gateway_count": 5
}
Active Users Info Panel
Copy
POST /api/v1/analytics/widgets/pcs_top_users/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"name":"top_gateways",
"sort_order":"desc",
"sort_field":"timestamp",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"connection_types": [
"JSAM",
"VPN"
],
"user_name": "user1",
"timestamp": 1580515200,
"device_location_city": "Bengaluru",
"network_access_layer": "L3",
"gateway_name": "t-0-gw-1",
"compliance_status": "Non-Compliant",
"device_type": "macOS"
}
],
"count": 10,
"total": 20
}
Devices Info Panel
Copy
POST /api/v1/analytics/widgets/pcs_top_device_types/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"device_type",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"device_type": "Mac",
"device_count": 335,
"l3_session_count": 120,
"l7_session_count": 120,
"device_count_by_location": [
{
"name": "Bangalore",
"value": 500
},
{
"name": "London",
"value": 200
}
],
"non_compliance_count": 25
}
],
"total": 20
}
Active Sessions Info Panel
Copy
POST /api/v1/analytics/widgets/pcs_top_sessions/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"user_name",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"alerts_count": 10,
"anomalies_count": 5,
"connection_types": [
"JSAM",
"VPN"
],
"device_location_city": "Bengaluru",
"device_types": [
"Windows",
"Ubuntu"
],
"gateway_name": "t-0-gw-1",
"session_types": [
"L3",
"L7"
],
"session_ids": [
"9ccf22b9fe",
"61cedb7c80"
],
"timestamp": 1580515200,
"user_name": "user1",
"user_risk_score": 10
}
],
"count": 10,
"total": 20
}
Active Applications Info panel
Copy
POST /api/v1/analytics/widgets/pcs_top_applications/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"timestamp",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"application_bookmark_type": "User defined",
"application_connection_broker": "WIN73428.auto.pcs.com:443",
"application_desktop_protocol": "rdp",
"application_host": "<IPv6 Address>",
"application_ip": "<IP Address>",
"timestamp": 1580515200,
"application_name": "MyGmailCom",
"application_port": "1494",
"application_type": "Web",
"application_url": "www.gmail.com",
"devices_count": 5,
"sessions_count": 5,
"users_count": "5"
}
],
"count": 5,
"total": 20
}
Non Compliances Info panel
Copy
POST /api/v1/analytics/widgets/pcs_non_compliance/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"user_name",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"user_name": "user1",
"user_roles": [
"Role1",
"Role2"
],
"timestamp": 1580515200,
"compliance_status": "Non-Compliant",
"non_compliance_policies": [
{
"policy_name": "engg_policy",
"failure_reason": "Anti-Virus turned off"
}
],
"user_location": "Bangalore",
"session_id": "d3534dse",
"device_type": "Windows",
"gateway_name": "gw-east-london"
}
],
"count": 5,
"total": 20
}
Auth Failure Info Panel
Copy
POST /api/v1/analytics/widgets/pcs_top_auth_failures/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"user_name",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"user_name": "user1",
"timestamp": 1580515200,
"device_location_city": "Bengaluru",
"auth_server_name": "Server 1",
"auth_server_position": "Primary",
"device_type": "macOS",
"gateway_name": "t-0-gw-1",
"auth_failure_reason": "Login Failed. Incorrect token."
}
],
"count": 10,
"total": 20
}
Anomalies Info Panel
Copy
POST /api/v1/analytics/widgets/anomalies/panel
REQUEST
{
"time_duration_type":"active",
"gateway_type":"pcs",
"sort_order":"desc",
"sort_field":"user_name",
"current_time":"1649153664"
}
RESPONSE
{
"info_panel_items": [
{
"anomaly_type": "GeoNewLocation",
"user_name": "John Smith",
"timestamp": 1587972453,
"device_id": "27178d97948d46c09c205d30e9cf2afe",
"session_id": "9ccf22b9fe",
"device_type": "Windows",
"anomaly_reason": "Non-familiar user location.",
"anomaly_id": "e4abbb38ce8d4619891e561cedb7c807",
"acknowledged": true,
"active_session": true,
"browser": "Google Chrome",
"locations_history": [
{
"location_name": "Bangalore",
"timestamp": 1580515200
}
],
"current_location": "Bangalore"
},
{},
{
"anomaly_type": "GeoNewLocation",
"user_name": "John Smith",
"timestamp": 1587972453,
"device_id": "27178d97948d46c09c205d30e9cf2afe",
"session_id": "9ccf22b9fe",
"device_type": "Windows",
"anomaly_reason": "Non-familiar user location.",
"anomaly_id": "e4abbb38ce8d4619891e561cedb7c807",
"acknowledged": true,
"active_session": true,
"browser": "Google Chrome",
"application_names": [
"Microsoft",
"Facebook"
],
"details": "Normal access hours range of user is between 9 a.m. to 5 p.m."
}
],
"count": 20,
"total": 20
}
Summary Strip with Gateway Filter
Copy
POST /api/v1/analytics/summary
REQUEST
{
"current_time": 1580515200,
"start_time": 1580515200,
"gateway_type": "pcs",
"overlay_filter_type": "non_compliance_users",
"global_filter": {
"gateway_ids": [
"74h4h3-u43943-4u3o4"
]
}
}
RESPONSE
[
{
"status": 73,
"name": "device",
"description": "Active devices vs. Connected devices",
"actual_value": 16,
"total_value": 25,
"line_graph_data": [
1,
2,
3
],
"line_graph_color": "green",
"trend_direction": "up",
"trend_delta": 5
}
]
Search Logs
Copy
POST /api/analytics/logs/search
REQUEST
{
"name": "Filter1",
"start_time_es": 1576533928,
"end_time_es": 1576533928,
"current_time": 1576533928,
"timezone_offset": 330,
"offset": 0,
"limit": 100,
"search_string": "PCS",
"search_string_columns": [
"application_configured_name"
],
"sort_by": "timestamp",
"sort_group_by": "application_name",
"group_by": "application_name",
"order": "desc",
"log_type": "access",
"gateway_type": "pcs",
"columns": [
"timestamp",
"message_id",
"severity",
"session_id",
"raw_message"
],
"group_by_columns": [
"unique_gateway_names_count",
"unique_user_names_count",
"unique_application_names_count",
"summary_device_types",
"summary_message_types",
"unique_device_ids_count",
"unique_session_ids_count"
],
"filters": [
{
"filter_by": "message_ids",
"operator": "IS",
"value": "PCSGateway"
}
]
}
RESPONSE
{
"total": 1000,
"count": 10,
"offset": 0,
"log_lines": [
{
"timestamp": 1576533928,
"message_id": "ADM24682",
"gateway_id": "123e4567-e89b-12d3-a456-426655440000",
"gateway_name": "Azure-Gateway_1",
"severity": "INFO",
"source_ip": "<IP Address>",
"raw_message": "Primary authentication successful for admindb/SDP Admin Auth from\n172.21.8.171\n",
"user_name": "testuser1",
"user_group": "testgroup1",
"session_id": "fa0726e89c",
"device_id": "965C34BA98C94F4EAE6F2D8564E6CEAC",
"application_name": "Jira.abc.com",
"application_group_names": [
[
"group-1",
"group-2"
]
],
"application_protocol": "HTTPS",
"application_protocol_display_name": "Web",
"application_discovered": false,
"application_type": "url",
"application_status": "Green",
"application_connection_broker": "auto.pcs.com",
"application_desktop_protocol": "ssh",
"application_host": "auto.pcs.com",
"application_ip": "1.2.3.4",
"application_url": "www.gmail.com",
"application_location_city": "Bengaluru",
"application_bookmark_type": "Admin defined",
"non_compliance_policy_name": "Jira_access_policy",
"non_compliance_policy_types_list": [
[
"Location",
"HC"
]
],
"message_type": "Anomaly",
"sub_message_type": "Anomaly",
"pulse_client_version": "2021.12.1",
"device_type": "Windows",
"device_os_type": "Windows 10 Pro",
"device_location_city": "mumbai",
"user_risk_score": 10.23,
"user_risk_score_category": "High",
"user_alerts_count": 13,
"user_anomalies_count": 10,
"user_activity_deviations_count": 5,
"acknowledged": true,
"session_type": "local",
"adaptive_auth_reason": "new_location",
"controller": true,
"is_session_active": true,
"session_duration": "2:20:00",
"bandwidth_consumed": 1024,
"bandwidth_consumed_str": "1.00 Kb",
"connected_time": "2:10:30",
"role_names": [
[
"role-1",
"role-2"
]
],
"session_created_timestamp": 1576533928,
"browser": "Google Chrome",
"gateway_status": "online",
"gateway_version": "21.x Build 1",
"esap_version": "21.x Build 1",
"cpu": 26.75,
"physical_memory": 18.25,
"swap_memory": 20.9,
"disk_used_percentage": 34.5,
"throughput_value": 67,
"avg_cpu": 26.75,
"avg_memory": 18.25,
"avg_disk": 34.5,
"avg_throughput": 67,
"max_concurrent_user_licenses_consumed": 200
}
]
}
Top Busy Users
Copy
Post
/api/v1/analytics/users/top_busy_users
Response
{
"current_time":1668488805,
"time_duration_type":"active",
"timezone_offset":0
}
Request
{
"blocks": [ ],
"chart_timestamp": 1668488805,
"max_apps_list": [ ],
"max_gradient_value": 10,
"max_users_list": [ ],
"min_gradient_value": 0,
"title": "Top Busy Users"
}
Applications by Type
Copy
Post
/api/v1/analytics/applications/applications_by_type
Request
{
"current_time":1668489311,
"time_duration_type":"active",
"timezone_offset":0
}
Response
{
"chart_timestamp": 1668489311,
"data": [],
"title": "Applications Type"
}
Top Gateways by Health
Copy
Post
api/v1/analytics/gateways/top_gateways_by_health
Request
{
"gateway_type":"zta",
"current_time":1668496306,
"time_duration_type":"active","
"timezone_offset":0,
"category":"cpu"
}
Response
{
"chart_timestamp": 1668496306,
"data": [
{
"name": "esxi-21-12r1-95",
"value": 1.98
},
{
"name": "esxi-22-1r1-75",
"value": 2.0
}
],
"title": "ZTA L2 Gateways By Health Chart",
"total_items": 2
}
Policy Failures Trend
Copy
Post
/api/v1/analytics/policy_failures/policy_failures_trend
Request
{
"current_time":1668499346,
"time_duration_type":"active",
"timezone_offset":0
}
Response
{
"bar_chart_data": {
"data": [
{
"timestamp": "07:00 AM",
"value": 0
},
{
"timestamp": "07:05 AM",
"value": 0
},
{
"timestamp": "07:10 AM",
"value": 0
},
{
"timestamp": "07:15 AM",
"value": 0
},
{
"timestamp": "07:20 AM",
"value": 0
},
{
"timestamp": "07:25 AM",
"value": 0
},
{
"timestamp": "07:30 AM",
"value": 0
},
{
"timestamp": "07:35 AM",
"value": 0
},
{
"timestamp": "07:40 AM",
"value": 0
},
{
"timestamp": "07:45 AM",
"value": 0
},
{
"timestamp": "07:50 AM",
"value": 0
},
{
"timestamp": "07:55 AM",
"value": 0
},
{
"timestamp": "08:00 AM",
"value": 0
}
],
"name": "Unique users"
},
"chart_timestamp": 1668499346,
"lines_chart_data": [],
"timestamps_list": [
"07:00 AM",
"07:05 AM",
"07:10 AM",
"07:15 AM",
"07:20 AM",
"07:25 AM",
"07:30 AM",
"07:35 AM",
"07:40 AM",
"07:45 AM",
"07:50 AM",
"07:55 AM",
"08:00 AM"
],
"title": "Policy Failures Access Trend",
"top_failure_types_list": [],
"unique_applications": {
"data": [
{
"timestamp": "07:00 AM",
"value": 0
},
{
"timestamp": "07:05 AM",
"value": 0
},
{
"timestamp": "07:10 AM",
"value": 0
},
{
"timestamp": "07:15 AM",
"value": 0
},
{
"timestamp": "07:20 AM",
"value": 0
},
{
"timestamp": "07:25 AM",
"value": 0
},
{
"timestamp": "07:30 AM",
"value": 0
},
{
"timestamp": "07:35 AM",
"value": 0
},
{
"timestamp": "07:40 AM",
"value": 0
},
{
"timestamp": "07:45 AM",
"value": 0
},
{
"timestamp": "07:50 AM",
"value": 0
},
{
"timestamp": "07:55 AM",
"value": 0
},
{
"timestamp": "08:00 AM",
"value": 0
}
],
"name": "Unique applications"
},
"unique_users": {
"data": [
{
"timestamp": "07:00 AM",
"value": 0
},
{
"timestamp": "07:05 AM",
"value": 0
},
{
"timestamp": "07:10 AM",
"value": 0
},
{
"timestamp": "07:15 AM",
"value": 0
},
{
"timestamp": "07:20 AM",
"value": 0
},
{
"timestamp": "07:25 AM",
"value": 0
},
{
"timestamp": "07:30 AM",
"value": 0
},
{
"timestamp": "07:35 AM",
"value": 0
},
{
"timestamp": "07:40 AM",
"value": 0
},
{
"timestamp": "07:45 AM",
"value": 0
},
{
"timestamp": "07:50 AM",
"value": 0
},
{
"timestamp": "07:55 AM",
"value": 0
},
{
"timestamp": "08:00 AM",
"value": 0
}
],
"name": "Unique users"
}
}
Audit Logs
Copy
Post
/api/v1/analytics/actionable_insights_actions/audit_logs
Request
{
"start_time_es":1668413629,
"end_time_es":1668500029,
"current_time":1668500029,
"time_duration_type":"day",
"timezone_off
set":0,"offset":0,"limit":50,
"category":"user_risk_score",
"gateway_type":"zta"
}
Response
{
"count": 0,
"log_lines": [],
"total": 0
}
Report Templates
Copy
Get
/api/v1/analytics/reports_new/templates
Response
"templates": [
{
"created": "1970-01-01T00:00:00Z",
"description": "Custom report provides a way to add additional information and it can be saved as a report template.",
"gateway_type": "zta",
"is_base_template": true,
"name": "Custom Report",
"read_only": true,
"template_id": "e1e898b3201f4d18b24251f8294ee314",
"updated": "1970-01-01T00:00:00Z"
},
{
"created": "1970-01-01T00:00:00Z",
"description": "User access information summarizing the activity of individual users or user groups.",
"gateway_type": "zta",
"is_base_template": false,
"name": "User Activity Summary Report",
"read_only": true,
"template_id": "250801c6f8e7423f995d320c0e211602",
"updated": "1970-01-01T00:00:00Z"
},
{
"created": "1970-01-01T00:00:00Z",
"description": "Application activity information summarizing how applications are accessed and used.",
"gateway_type": "zta",
"is_base_template": false,
"name": "Application Access Report",
"read_only": true,
"template_id": "07bdc031cf784d7b9f6af4aa90ed4428",
"updated": "1970-01-01T00:00:00Z"
},
{
"created": "2022-07-25T04:59:20Z",
"description": "",
"gateway_type": "zta",
"is_base_template": false,
"name": "template1",
"read_only": false,
"template_id": "cd8ae185d52647eb9a8a89a1e1cf1dd5",
"updated": "2022-07-25T04:59:20Z"
},
{
"created": "1970-01-01T00:00:00Z",
"description": "Metrics and indicators of UEBA threat level associated with users.",
"gateway_type": "zta",
"is_base_template": false,
"name": "User UEBA threat Report",
"read_only": true,
"template_id": "9d2a883a76194068a20149ee3b90f3bc",
"updated": "1970-01-01T00:00:00Z"
}
]
}
Secure Access Policies
Copy
Get
/api/v1/policies/ui/secure-access-policies
Response
{
"count": 5,
"items": [
{
"application_health_messages": [
"Application reachability is unknown"
],
"application_health_status": "grey",
"device_policy_display_name": "",
"enabled": false,
"gateway_display_name": "",
"gateway_type": "single",
"id": "8b85c4149f35441bbe654b28b1fdcd50",
"is_default": true,
"resource_config": {
"name": "Application discovery"
},
"resource_display_name": "Application discovery",
"resource_id": "df24da54f1284b55b74802bc71551970",
"resource_type": "single",
"type": "application",
"user_rule_group_config": {
"name": "Users",
"role_config": {
"id": "629d15eb93524f35a75b8dfc74fa833d",
"name": "ZTA User Role",
"redirect_url": "/user",
"type": "user"
}
},
"user_rule_group_display_name": "Users",
"user_rule_group_id": "c29ba05cf207453b83dde26b5f5fa5b1"
},
{
"application_health_messages": [
"Application is reachable"
],
"application_health_status": "green",
"device_policy_display_name": "",
"enabled": true,
"gateway_config": {
"actions": [
"change_settings",
"upgrade",
"reboot"
],
"appliance_version": "22.1R1-75",
"capabilities": [
"readiness",
"reboot",
"action",
"action_snapshot",
"action_debug_log",
"action_ping",
"action_nslookup",
"action_arp",
"action_traceroute",
"action_avgrtt",
"action_portprobe",
"action_tcp_dump",
"action_node_monitoring",
"configurable_session_timeouts",
"connect_via_mgmt_interface",
"application_discovery",
"configurable_custom_ip_pool_range",
"configurable_sub_domain",
"replace",
"group_actions",
"settings_update"
],
"created": "2022-06-13T13:37:57Z",
"external_fqdn": "esxi-22-1r1-75.g.tenant1.e.cedar.pzt.dev.perfsec.com",
"external_ip": "<IP Address>",
"gateway_type": "pzt_gateway",
"id": "0183c3d395944b5691c7579470c7181d",
"is_ready": true,
"location": {
"city_id": 99
},
"model": "ISA4000-V",
"name": "esxi-22-1r1-75",
"notification_channel_status": "online",
"ntp_primary_server": "time.windows.com",
"ntp_secondary_server": "time.nist.gov",
"orchestration": {
"mode": "manual",
"type": "vsphere"
},
"public_ip": "10.97.129.56",
"public_ips": [
"10.97.129.56"
],
"sdp_mode": "pzt-gateway",
"serial_number": "VASPHQ3NHXSHFC3TS",
"state": "registered",
"tunnel_idle_timeout": 5,
"type": "VPN",
"updated": "2022-07-04T17:53:12Z",
"use_dynamic_ip": false,
"versions": [
"21.12R1-95",
"21.6R1-189",
"21.3R1-233",
"21.2R1-153",
"21.1R1-169"
]
},
"gateway_display_name": "esxi-22-1r1-75",
"gateway_id": "0183c3d395944b5691c7579470c7181d",
"gateway_type": "single",
"id": "3023aea53c5a42fcacb8c088164dbce1",
"is_default": false,
"resource_config": {
"name": "avinetwork"
},
"resource_display_name": "avinetwork",
"resource_id": "42da64c4fb0b464d97cd964600790d82",
"resource_type": "single",
"type": "application",
"user_rule_group_config": {
"name": "Users",
"role_config": {
"id": "629d15eb93524f35a75b8dfc74fa833d",
"name": "ZTA User Role",
"redirect_url": "/user",
"type": "user"
}
},
"user_rule_group_display_name": "Users",
"user_rule_group_id": "c29ba05cf207453b83dde26b5f5fa5b1"
},
{
"application_health_messages": [
"Application reachability is unknown"
],
"application_health_status": "grey",
"device_policy_display_name": "",
"enabled": true,
"gateway_display_name": "AWSGW",
"gateway_group_config": {
"config_only_cluster": false,
"created": "2022-06-01T04:37:00Z",
"external_fqdn": "awsgw.gg.tenant1.e.cedar.pzt.dev.perfsec.com",
"group_type": "pzt_gateway",
"id": "ab516bbd37a5441588c4ba019ada753c",
"members": [],
"members_group": [],
"name": "AWSGW",
"ready_members": [],
"registered_members": [],
"type": "gateways_service.zta_group",
"updated": "2022-06-14T11:34:47Z"
},
"gateway_group_id": "ab516bbd37a5441588c4ba019ada753c",
"gateway_type": "group",
"id": "09451120063e4455800f2ec5544576f2",
"is_default": false,
"resource_config": {
"name": "Cisco"
},
"resource_display_name": "Cisco",
"resource_id": "31eb4b8cb368404289bc4bf25daf4fc9",
"resource_type": "single",
"type": "application",
"user_rule_group_config": {
"name": "Users",
"role_config": {
"id": "629d15eb93524f35a75b8dfc74fa833d",
"name": "ZTA User Role",
"redirect_url": "/user",
"type": "user"
}
},
"user_rule_group_display_name": "Users",
"user_rule_group_id": "c29ba05cf207453b83dde26b5f5fa5b1"
},
{
"application_health_messages": [
"Application is reachable"
],
"application_health_status": "green",
"device_policy_config": {
"name": "actionable-insight"
},
"device_policy_display_name": "actionable-insight",
"device_policy_id": "b1cfba738a344d76a73f587f6b2d9d12",
"enabled": true,
"gateway_config": {
"actions": [
"change_settings",
"upgrade",
"reboot",
"rollback"
],
"appliance_version": "22.2R1-361",
"capabilities": [
"readiness",
"reboot",
"rollback",
"action",
"action_snapshot",
"action_debug_log",
"action_ping",
"action_nslookup",
"action_arp",
"action_traceroute",
"action_avgrtt",
"action_portprobe",
"action_tcp_dump",
"action_node_monitoring",
"configurable_session_timeouts",
"connect_via_mgmt_interface",
"application_discovery",
"configurable_custom_ip_pool_range",
"configurable_sub_domain",
"configurable_date_time",
"configurable_custom_domain",
"replace",
"group_actions",
"settings_update"
],
"created": "2022-06-13T13:38:49Z",
"external_fqdn": "esxi-21-12r1-95.g.tenant1.e.cedar.pzt.dev.perfsec.com",
"external_ip": "<IP Address>",
"gateway_type": "pzt_gateway",
"id": "d5da0263a8d94fd9823ba5568db397b1",
"is_ready": true,
"location": {
"city_id": 73478
},
"model": "ISA4000-V",
"name": "esxi-21-12r1-95",
"notification_channel_status": "online",
"ntp_primary_server": "time.windows.com",
"ntp_secondary_server": "time.nist.gov",
"orchestration": {
"mode": "manual",
"type": "vsphere"
},
"public_ip": "<IP Address>",
"public_ips": [
"10.97.129.59"
],
"sdp_mode": "pzt-gateway",
"serial_number": "VASPH7W9CAYNETC4S",
"state": "registered",
"tunnel_idle_timeout": 5,
"type": "VPN",
"updated": "2022-07-07T15:47:00Z",
"use_dynamic_ip": false,
"versions": [
"21.12R1-95",
"21.6R1-189",
"21.3R1-233",
"21.2R1-153",
"21.1R1-169"
]
},
"gateway_display_name": "esxi-21-12r1-95",
"gateway_id": "d5da0263a8d94fd9823ba5568db397b1",
"gateway_type": "single",
"id": "d485a40b720941219ee667d86fabb9d6",
"is_default": false,
"resource_config": {
"name": "dailymotion"
},
"resource_display_name": "dailymotion",
"resource_id": "a1f5441eeb554cdbba52f5b981f226f7",
"resource_type": "single",
"type": "application",
"user_rule_group_config": {
"name": "accounts-auth",
"role_config": {
"id": "0439999bdf3d43188126ea4fd8c24638",
"name": "accounts-auth",
"redirect_url": "/user",
"type": "user"
}
},
"user_rule_group_display_name": "accounts-auth",
"user_rule_group_id": "dbcbd6f7db274bada01c805638e50ab6"
},
{
"application_health_messages": [
"Application is reachable"
],
"application_health_status": "green",
"device_policy_display_name": "",
"enabled": true,
"gateway_config": {
"actions": [
"change_settings",
"upgrade",
"reboot",
"rollback"
],
"appliance_version": "22.2R1-361",
"capabilities": [
"readiness",
"reboot",
"rollback",
"action",
"action_snapshot",
"action_debug_log",
"action_ping",
"action_nslookup",
"action_arp",
"action_traceroute",
"action_avgrtt",
"action_portprobe",
"action_tcp_dump",
"action_node_monitoring",
"configurable_session_timeouts",
"connect_via_mgmt_interface",
"application_discovery",
"configurable_custom_ip_pool_range",
"configurable_sub_domain",
"configurable_date_time",
"configurable_custom_domain",
"replace",
"group_actions",
"settings_update"
],
"created": "2022-06-13T13:38:49Z",
"external_fqdn": "esxi-21-12r1-95.g.tenant1.e.cedar.pzt.dev.perfsec.com",
"external_ip": "<IP Address>",
"gateway_type": "pzt_gateway",
"id": "d5da0263a8d94fd9823ba5568db397b1",
"is_ready": true,
"location": {
"city_id": 73478
},
"model": "ISA4000-V",
"name": "esxi-21-12r1-95",
"notification_channel_status": "online",
"ntp_primary_server": "time.windows.com",
"ntp_secondary_server": "time.nist.gov",
"orchestration": {
"mode": "manual",
"type": "vsphere"
},
"public_ip": "<IP Address>",
"public_ips": [
"10.97.129.59"
],
"sdp_mode": "pzt-gateway",
"serial_number": "VASPH7W9CAYNETC4S",
"state": "registered",
"tunnel_idle_timeout": 5,
"type": "VPN",
"updated": "2022-07-07T15:47:00Z",
"use_dynamic_ip": false,
"versions": [
"21.12R1-95",
"21.6R1-189",
"21.3R1-233",
"21.2R1-153",
"21.1R1-169"
]
},
"gateway_display_name": "esxi-21-12r1-95",
"gateway_id": "d5da0263a8d94fd9823ba5568db397b1",
"gateway_type": "single",
"id": "4bc02821efee494cba1e47797490c9f7",
"is_default": false,
"resource_config": {
"name": "facebook"
},
"resource_display_name": "facebook",
"resource_id": "07f0114ee3a24ed4ba24e13b49f127f2",
"resource_type": "single",
"type": "application",
"user_rule_group_config": {
"name": "Users",
"role_config": {
"id": "629d15eb93524f35a75b8dfc74fa833d",
"name": "ZTA User Role",
"redirect_url": "/user",
"type": "user"
}
},
"user_rule_group_display_name": "Users",
"user_rule_group_id": "c29ba05cf207453b83dde26b5f5fa5b1"
}
],
"offset": 0,
"total": 5
}
User Rule Groups
Copy
Get
/api/v1/policies/ui/user-rule-groups
Response
{
"count": 10,
"items": [
{
"allow_delete": false,
"description": "",
"id": "86e839565b56491daa9005a556bf2f86",
"is_default": false,
"name": "acccounts-erollment",
"role_config": {
"id": "8211c9d25d5d40e6a7ec813881482a22",
"name": "acccounts-erollment",
"redirect_url": "/user",
"type": "user"
},
"role_id": "8211c9d25d5d40e6a7ec813881482a22",
"rules": [
{
"allow_delete": false,
"attribute": "is",
"id": "89e89246cd614a97b246ac4ff773616e",
"is_default": true,
"name": "AllEnrollmentUsers",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "48ed0870bb774668937cf5c83a350b28",
"policy_type": "enroll",
"primary_auth_server_config": {
"id": "6b089519901f4143b5ce65b37c10580b",
"name": "account-enrollment",
"type": "SAML (Azure AD)"
},
"primary_auth_server_id": "6b089519901f4143b5ce65b37c10580b",
"realm": "accounts-enrollment",
"url_pattern": "*/login/accountsenrollment/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "48ed0870bb774668937cf5c83a350b28",
"sign_in_policy_name": "accounts-enrollment"
},
{
"allow_delete": false,
"description": "",
"id": "dbcbd6f7db274bada01c805638e50ab6",
"is_default": false,
"name": "accounts-auth",
"role_config": {
"id": "0439999bdf3d43188126ea4fd8c24638",
"name": "accounts-auth",
"redirect_url": "/user",
"type": "user"
},
"role_id": "0439999bdf3d43188126ea4fd8c24638",
"rules": [
{
"allow_delete": false,
"attribute": "is",
"id": "ab94fbc66a17458fb7a0aa09fee549ee",
"is_default": true,
"name": "AllAdminUsers",
"type": "username",
"value": "*"
},
{
"allow_delete": false,
"attribute": "is",
"id": "bb77d22ae3b440bbb3d464f0df50f4af",
"is_default": true,
"name": "AllUsers",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "e6dc3e529f544f92b1cd233a60526058",
"policy_type": "user",
"primary_auth_server_config": {
"id": "ba6bcd6bc42649e98366d17fe1ffd3e3",
"name": "account-auth",
"type": "SAML (Azure AD)"
},
"primary_auth_server_id": "ba6bcd6bc42649e98366d17fe1ffd3e3",
"realm": "accounts-auth",
"url_pattern": "*/login/accounts/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "e6dc3e529f544f92b1cd233a60526058",
"sign_in_policy_name": "accounts-auth"
},
{
"allow_delete": false,
"id": "2891190c7952409687e7db43ed77a8b6",
"is_default": true,
"name": "Administrators",
"role_config": {
"id": "bcebb37e1e85405db98f188cb4a7cca9",
"name": ".Administrators",
"redirect_url": "/admin",
"type": "admin"
},
"role_id": "bcebb37e1e85405db98f188cb4a7cca9",
"rules": [
{
"allow_delete": false,
"attribute": "is",
"id": "ab94fbc66a17458fb7a0aa09fee549ee",
"is_default": true,
"name": "AllAdminUsers",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "f87680b7292242b9af247fec1b17347c",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "4a02312f7b1f4dd89f5350966feb528d",
"name": "Admin Auth",
"type": "Local"
},
"primary_auth_server_id": "4a02312f7b1f4dd89f5350966feb528d",
"realm": "ZTA Admin Users",
"url_pattern": "*/login/admin/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "f87680b7292242b9af247fec1b17347c",
"sign_in_policy_name": "Admin Signin"
},
{
"allow_delete": false,
"description": "",
"id": "52b2377af03d43298d396c1dac50301d",
"is_default": false,
"name": "cxo",
"rules": [
{
"allow_delete": true,
"attribute": "is",
"id": "d07d5d42282a484cac0e9fcb1d9e3c31",
"is_default": false,
"name": "cxo",
"type": "username",
"value": "cxo*"
}
],
"sign_in_config": {
"id": "aefca271a9a74664909811f5df05fd68",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "6d4f27fb5ca841d5a52f2c16c04f7b7f",
"name": "cxo",
"type": "Local"
},
"primary_auth_server_id": "6d4f27fb5ca841d5a52f2c16c04f7b7f",
"realm": "cxo",
"url_pattern": "*/login/cxo/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "aefca271a9a74664909811f5df05fd68",
"sign_in_policy_name": "cxo"
},
{
"allow_delete": false,
"description": "",
"id": "f8ec4120e92b40ce824a328ce8828de8",
"is_default": false,
"name": "cxoics",
"rules": [
{
"allow_delete": true,
"attribute": "is",
"id": "d07d5d42282a484cac0e9fcb1d9e3c31",
"is_default": false,
"name": "cxo",
"type": "username",
"value": "cxo*"
}
],
"sign_in_config": {
"id": "28c7137a53d34de68b516caecebf8bcc",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "a9e08f5f7c354ac6a290fc08046947fd",
"name": "cxoics",
"type": "Local"
},
"primary_auth_server_id": "a9e08f5f7c354ac6a290fc08046947fd",
"realm": "cxoics",
"url_pattern": "*/login/cxoics/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "28c7137a53d34de68b516caecebf8bcc",
"sign_in_policy_name": "cxoics"
},
{
"allow_delete": false,
"id": "78ab1bbd743948bb9a4ca4128558b4b6",
"is_default": true,
"name": "Enrollment",
"role_config": {
"id": "6257484614ad45dfb2146ca5990f7e97",
"name": "ZTA User Enrollment Role",
"redirect_url": "/user",
"type": "user"
},
"role_id": "6257484614ad45dfb2146ca5990f7e97",
"rules": [
{
"allow_delete": false,
"attribute": "is",
"id": "89e89246cd614a97b246ac4ff773616e",
"is_default": true,
"name": "AllEnrollmentUsers",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "cb8753de76fb45d581e07d4bc700cb67",
"policy_type": "enroll",
"primary_auth_server_config": {
"id": "dfae63cb445a479785cbab24e3ffdae6",
"name": "AzureAD-Enroll",
"type": "SAML (Azure AD)"
},
"primary_auth_server_id": "dfae63cb445a479785cbab24e3ffdae6",
"realm": "ZTA Enrollment",
"url_pattern": "*/login/enroll/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "cb8753de76fb45d581e07d4bc700cb67",
"sign_in_policy_name": "Enrollment Signin"
},
{
"allow_delete": false,
"description": "",
"id": "0002f260f66c49e283425f71197efb7d",
"is_default": false,
"name": "KAN_QAADMIN",
"role_config": {
"id": "5cf6acc4109f41a5b176ef797422d6df",
"name": ".Read-Only Administrators",
"redirect_url": "/admin",
"type": "admin"
},
"role_id": "5cf6acc4109f41a5b176ef797422d6df",
"rules": [
{
"allow_delete": true,
"attribute": "is",
"id": "32edd86e75b04b9dbfae2ddbeb5aae7c",
"is_default": false,
"name": "KAN_QAADMIN",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "52cee518e8cb4c3c9dc542a43f02cc6c",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "12123587ff824be68d38670a3ea06aa8",
"name": "kan-samlauth",
"type": "SAML (Azure AD)"
},
"primary_auth_server_id": "12123587ff824be68d38670a3ea06aa8",
"realm": "kan_mfa",
"secondary_auth_server_config": {
"id": "3845bf68848146da8f30499b9ee39eb7",
"name": "totpauth",
"type": "TOTP"
},
"secondary_auth_server_id": "3845bf68848146da8f30499b9ee39eb7",
"url_pattern": "*/login/QA/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "52cee518e8cb4c3c9dc542a43f02cc6c",
"sign_in_policy_name": "kan_mfa"
},
{
"allow_delete": false,
"description": "",
"id": "efb26b761c1f4ce999fe4f72f56cc3b2",
"is_default": false,
"name": "netadmin",
"role_config": {
"id": "985ed98560e64c9dac40b4446218f30b",
"name": ".CxOs",
"redirect_url": "/admin",
"type": "admin"
},
"role_id": "985ed98560e64c9dac40b4446218f30b",
"rules": [
{
"allow_delete": true,
"attribute": "is",
"id": "6ef26f4550a04f3a9c5b42620e8fab95",
"is_default": false,
"name": "netadmin",
"type": "username",
"value": "*"
}
],
"sign_in_config": {
"id": "da1cec892b724513817c9f2a4b154b63",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "3812afcbf54c42eebf389ca4d7362c84",
"name": "net-admin",
"type": "Local"
},
"primary_auth_server_id": "3812afcbf54c42eebf389ca4d7362c84",
"realm": "netadmin",
"url_pattern": "*/login/netadmin/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "da1cec892b724513817c9f2a4b154b63",
"sign_in_policy_name": "netadmin"
},
{
"allow_delete": false,
"description": "",
"id": "94c5b334df81427ab1f4b41af307a7e7",
"is_default": false,
"name": "netics",
"role_config": {
"id": "30c586d61c6e43fcbc79f5b405b6b5bd",
"name": ".Network Administrators",
"redirect_url": "/admin",
"type": "admin"
},
"role_id": "30c586d61c6e43fcbc79f5b405b6b5bd",
"rules": [
{
"allow_delete": true,
"attribute": "is not",
"id": "c3de640193af456d9774bb8b1a7848aa",
"is_default": false,
"name": "non-matching",
"type": "username",
"value": "user7"
}
],
"sign_in_config": {
"id": "4756d7f1e19749cfb69ac3a124355d68",
"policy_type": "admin",
"primary_auth_server_config": {
"id": "b3c9c1655b0544cab9daada76e7e10c1",
"name": "networkics",
"type": "Local"
},
"primary_auth_server_id": "b3c9c1655b0544cab9daada76e7e10c1",
"realm": "networkics",
"url_pattern": "*/login/netics/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "4756d7f1e19749cfb69ac3a124355d68",
"sign_in_policy_name": "networkics"
},
{
"allow_delete": false,
"description": "",
"id": "d4c923047a8248e28341c04b6e606b2c",
"is_default": false,
"name": "non-matching",
"role_config": {
"id": "dd29dd3f209042a58b1a82cb6ebeee10",
"name": "non-matching",
"redirect_url": "/user",
"type": "user"
},
"role_id": "dd29dd3f209042a58b1a82cb6ebeee10",
"rules": [
{
"allow_delete": true,
"attribute": "is not",
"id": "c3de640193af456d9774bb8b1a7848aa",
"is_default": false,
"name": "non-matching",
"type": "username",
"value": "user7"
}
],
"sign_in_config": {
"id": "21ff78e93fda4b0c86e7af96dfa75680",
"policy_type": "user",
"primary_auth_server_config": {
"id": "bc3a6edc5c924c05ac2849045761ac1b",
"name": "AzureAD-Auth",
"type": "SAML (Azure AD)"
},
"primary_auth_server_id": "bc3a6edc5c924c05ac2849045761ac1b",
"realm": "ZTA Users",
"url_pattern": "*/login/",
"use_as_saml_idp": false
},
"sign_in_policy_id": "21ff78e93fda4b0c86e7af96dfa75680",
"sign_in_policy_name": "User Signin"
}
],
"offset": 0,
"total": 16
}Salient Tasks
Copy
Get
/api/gateways/salient-tasks
Response
{
"items": [
{
"gateway_id": "d5da0263a8d94fd9823ba5568db397b1"
},
{
"gateway_id": "0183c3d395944b5691c7579470c7181d"
}
],
"total": 2
}
Custom Domains Summary
Copy
Get
/api/custom-domains/summary
Response
{
"items": [
{
"details": [
{
"domain_name": "tenant1.cedar.pzt.dev.perfsec.com",
"type": "TLS"
},
{
"domain_name": "tenant1.e.cedar.pzt.dev.perfsec.com",
"type": "mTLS"
}
],
"domain": "tenant1.cedar.pzt.dev.perfsec.com",
"status": "Active"
}
],
"total": 1
}
Trusted Server
Copy
Get
/api/certificates/trusted-server
Respone
{
"items": [
{
"certificate": "-----BEGIN CERTIFICATE-----\nMIIDoDCCAoigAwIBAgIQIPEHTWdoiJcV7NzjWYaX0DANBgkqhkiG9w0BAQsFADBq\nMQswCQYDVQQGEwJJTjEPMA0GA1UECgwGZTJlLXFhMRAwDgYDVQQLDAd0ZXN0aW5n\nMRIwEAYDVQQIDAlLYXJuYXRha2ExEDAOBgNVBAMMB2UyZXRlc3QxEjAQBgNVBAcM\nCUJhbmdhbG9yZTAeFw0yMTA1MjUxNDI3NDVaFw0zMTA1MjUxNTI3NDVaMGoxCzAJ
\nBgNVBAYTAklOMQ8wDQYDVQQKDAZlMmUtcWExEDAOBgNVBAsMB3Rlc3RpbmcxEjAQ\nBgNVBAgMCUthcm5hdGFrYTEQMA4GA1UEAwwHZTJldGVzdDESMBAGA1UEBwwJQmFu\nZ2Fsb3JlMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAxf8UvrRkrcnQ\nURWk6LbSTXGyobdA2i4wzk/yIEUJahGG4Q0zovBZZgKZcfjNDg4V/C5hiCiWU3V6\nsGrKHrS4mMkVNmyGdJ2x7+P31vbf/KevKqWfR59ltYeYp1kqpbEdXCxNkiDdCKg5\ngg4yc69BFTacaLEH0pYFseTk9n359qTF0P5lstx2iCjYGSm1mfTX1S0aP4aoqW2B\nVHQozDtW0SHhbnDapTYto29Q/2m+CF2FQow/iL11sdPRW0+RzD9sXTzj84fwL6Sf\npe7UxxPpOcG5B2R1/m+yg6ob6LVrT+CSBFT+UABbQCW5dtGkYN9eBfpPm/SKChkT\n0I8FCKFUCQIDAQABo0IwQDAPBgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBTkDXFi\nN3ysCKpXT7VYML+MWcHRsTAOBgNVHQ8BAf8EBAMCAYYwDQYJKoZIhvcNAQELBQAD
\nggEBAFF7gDjY1fthxUbjilp2REqxMuuKmNXrGHshNIHtSZkiBwvcGBlZgcRsj/wO\n1joy2otLDubIG5IYdAZK68uSvOsepXLFGKVKgSu4oPbA6ZIt2yNWbcooMuGxbM6W\nbIWAxbqdbitIE63mCWB8K4nKgm+A0IzTXxyIUylEcHACOO3LbM49eTCzyfJ++TJb\nS3zzp1ilW4eD2SRg34dRg1jwOAIRcLqhD6PPwEHEckCvki4EdAk12s9lm0+LY2y5\n2iEyvMzLjUlpSKliEb6cF+YIUiWPqcDoq+oCngOKrPKS9IpbuArp2PDBbfQAYlMD
\ngF3NJWL9WThCpRvl+kpeAibXlvQ=\n-----END CERTIFICATE-----",
"created": "2021-
"created": "2021-05-26T06:54:48Z",
"expires": "2031-05-25T15:27:45Z",
"id": "bdf26a86b79c4e00a9d68e6b3575cb0e",
"issuer_common_name": "e2etest",
"not_valid_before": "2021-05-25T14:27:45Z",
"subject_common_name": "e2etest"
}
],
"total": 1
}
Roles
Copy
Get
/api/v1/policies/roles
Response
{
"items": [
{
"allow_delete": false,
"description": "All pages accessible",
"id": "bcebb37e1e85405db98f188cb4a7cca9",
"is_default": true,
"name": ".Administrators",
"redirect_url": "/admin",
"type": "admin"
},
{
"allow_delete": true,
"description": "Insights Dashboards, Logs , Reports & Subscriptions",
"id": "985ed98560e64c9dac40b4446218f30b",
"is_default": true,
"name": ".CxOs",
"redirect_url": "/admin",
"type": "admin"
},
{
"allow_delete": true,
"description": "Gateways Overview and Logs only",
"id": "30c586d61c6e43fcbc79f5b405b6b5bd",
"is_default": true,
"name": ".Network Administrators",
"redirect_url": "/admin",
"type": "admin"
},
{
"allow_delete": true,
"description": "All except Workflows , Subscriptions , Upgrade & Admin Role",
"id": "5cf6acc4109f41a5b176ef797422d6df",
"is_default": true,
"name": ".Read-Only Administrators",
"redirect_url": "/admin",
"type": "admin"
},
{
"allow_delete": true,
"id": "8211c9d25d5d40e6a7ec813881482a22",
"is_default": false,
"name": "acccounts-erollment",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"id": "0439999bdf3d43188126ea4fd8c24638",
"is_default": false,
"name": "accounts-auth",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"description": "",
"id": "7109aa170469425483014bd2372c14b8",
"is_default": false,
"name": "NewROA",
"redirect_url": "/admin",
"type": "admin"
},
{
"allow_delete": true,
"id": "dd29dd3f209042a58b1a82cb6ebeee10",
"is_default": false,
"name": "non-matching",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"id": "f7c19a90c340456595e87003da092eae",
"is_default": false,
"name": "sales-auth",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"id": "5347999c673649d7b273f7600cd38b23",
"is_default": false,
"name": "sales-enrollment",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"id": "6257484614ad45dfb2146ca5990f7e97",
"is_default": true,
"name": "ZTA User Enrollment Role",
"redirect_url": "/user",
"type": "user"
},
{
"allow_delete": true,
"id": "629d15eb93524f35a75b8dfc74fa833d",
"is_default": true,
"name": "ZTA User Role",
"redirect_url": "/user",
"type": "user"
}
],
"total": 12
}Address
Copy
Get
/api/locations/address-ranges
Response
{
"items": [
{
"city": {
"id": 99,
"name": "Bengaluru"
},
"country": {
"id": 70,
"name": "India"
},
"id": "b278a5d7b72740e2a74df5574df7f066",
"network": "<IP Address>/32",
"state": {
"id": 1178,
"name": "Karnataka"
}
},
{
"city": {
"id": 99,
"name": "Bengaluru"
},
"country": {
"id": 70,
"name": "India"
},
"id": "6bb80619d0774836afc4216363252492",
"network": "<IP Address>/32",
"state": {
"id": 1178,
"name": "Karnataka"
}
},
{
"city": {
"id": 100,
"name": "Mumbai"
},
"country": {
"id": 70,
"name": "India"
},
"id": "b313b5612dd74584b19fe1eec865818f",
"network": "<IP Address>/32",
"state": {
"id": 1177,
"name": "Maharashtra"
}
},
{
"city": {
"id": 100,
"name": "Mumbai"
},
"country": {
"id": 70,
"name": "India"
},
"id": "3e7d1ab0e4d54c6bae1ae6ddaf389f24",
"network": "<IP Address>/32",
"state": {
"id": 1177,
"name": "Maharashtra"
}
},
{
"city": {
"id": 68,
"name": "Moscow"
},
"country": {
"id": 100,
"name": "Russia"
},
"id": "4f616a0bd8394baeb7ef5d0454d59a39",
"network": "<IP Address>/32",
"state": {
"id": 593,
"name": "Moscow"
}
}
],
"total": 5
}Installation Packages
Copy
Get
api/clients/packages
Response
{
"auto_update": {
"esap": true,
"pulse_client": false
},
"items": [
{
"id": "8d4842f1377a4c6db737e3cd7e220bfe",
"pinned": false,
"release_date": "2022-11-23T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "esap",
"version": "4.0.5"
},
{
"id": "af5983f20d88410796d8007a0752ba90",
"pinned": false,
"release_date": "2022-03-11T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "esap",
"version": "3.9.6"
},
{
"id": "b0b9c41d07d94aa4b80b27d70ab2e63d",
"pinned": false,
"release_date": "2022-01-20T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "esap",
"version": "3.9.3"
},
{
"id": "2e75ebd8c2b3403daca2100a232926a0",
"pinned": false,
"release_date": "2021-09-06T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "esap",
"version": "3.8.5"
},
{
"id": "b1b51f7577844199b22dc3c3901c7276",
"pinned": false,
"release_date": "2022-11-30T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "pulse_client",
"version": "22.3R1-18029"
},
{
"id": "464f2b6719aa4e26966f2e103850d29b",
"pinned": true,
"release_date": "2022-07-07T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "pulse_client",
"version": "22.2R1-1295"
},
{
"id": "f7e6fddbede94ac09c96c58b1aeea0ce",
"pinned": false,
"release_date": "2022-03-28T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "pulse_client",
"version": "9.1R14-15521"
},
{
"id": "32d3d32b5fe949e3be961391a08198fc",
"pinned": false,
"release_date": "2022-01-21T11:18:12Z",
"release_notes_url": "https://help.ivanti.com/ps/legacy/PULSE-CLIENT/PULSE-SECURE-CLIENT-DESKTOP/9.1RX/ps-pulse-9.1r7-releasenotes.pdf",
"state": "active",
"type": "pulse_client",
"version": "9.1R13-13865"
}
],
"total": 8
}
Install ESAP
Copy
https://tenant1.cedar.pzt.dev.perfsec.com/api/pcs-configs/multinode/install_esap
Request
{
"gatewayIds":["4cce0aad63e74ec695d981a06530bb7f"],
"clusterIds":[],
"version":"4.0.5"
}
Response
{
"message": "Successful upgrade"
}
Upgrade
Copy
Get
Request
api/gateways/packages?gateway_type=pcs_gateway&package_type=upgrade
{
"items": [
{
"appliance_version": "22.2R1-480",
"created": "2022-06-30T12:37:49Z",
"gateway_type": "pcs_gateway",
"group_id": "d71c033b923a48b191441e7947bc9677",
"id": "d5e8bd43f68b4a52b95854e7fa7c8509",
"location": {
"name": "blr"
},
],
"total": 1
}
Config Groups
Copy
Get
api/pcs-configs/config-groups
{
"items": [
{
"block_types": [
"signin.auth-servers"
],
"clusters": [],
"gateways": [],
"id": "3e521380c99a4543a87a0ea756f2b2a6",
"last_updated": "2022-11-02T15:09:00Z",
"name": "E2E-New-app",
"version": "22.1R1"
},
]
}Auth Server
Copy
Get
Request
/api/v1/policies/auth-servers
{
"auth_servers": [
{
"allow_delete": true,
"id": "ba6bcd6bc42649e98366d17fe1ffd3e3",
"is_default": false,
"local_config": {
"total_users": 0
},
"name": "account-auth",
"type": "SAML (Azure AD)"
},
],
"total": 1
}
Licenses
Copy
Get
/api/licenses/subscriptions
Response
{
"items": [
{
"category": "PCS",
"display_name": "21.x PCS",
"end_date": "2022-12-01T00:00:00Z",
"features": {
"allow_support": true,
"named_users": 100000
},
"id": "cfc9ec4b-788a-484f-954d-4f736069021e",
"serial_number": "11-4038621",
"start_date": "2021-01-01T00:00:00Z"
},
{
"category": "ZTA",
"display_name": "zta subscription",
"end_date": "2025-12-04T00:00:00Z",
"features": {
"allow_support": true,
"named_users": 50000
},
"id": "94f5904a-113d-416b-9aa4-3b0755632c8c",
"serial_number": "abc-1200AB",
"start_date": "2022-01-01T00:00:00Z"
}
],
"total": 2
}
Delete one or more named users from the nSA
Copy
Del
/api/licenses/subscribers/products/pcs/delete/named-users
resp = r.post(rest_api, verify=False, data = json.dumps(users_to_delete_list),
headers={'Content-type': 'application/json'})
print("Response code: " + str(resp.status_code))
#print("Response content: " + str(resp.content))
if resp.status_code == 202:
print("Successfully triggered deletion of users: " + str(users_to_delete_list))
result = True
else:
print("Error in deleting users: " + str(users_to_delete_list))
return result
