parameters

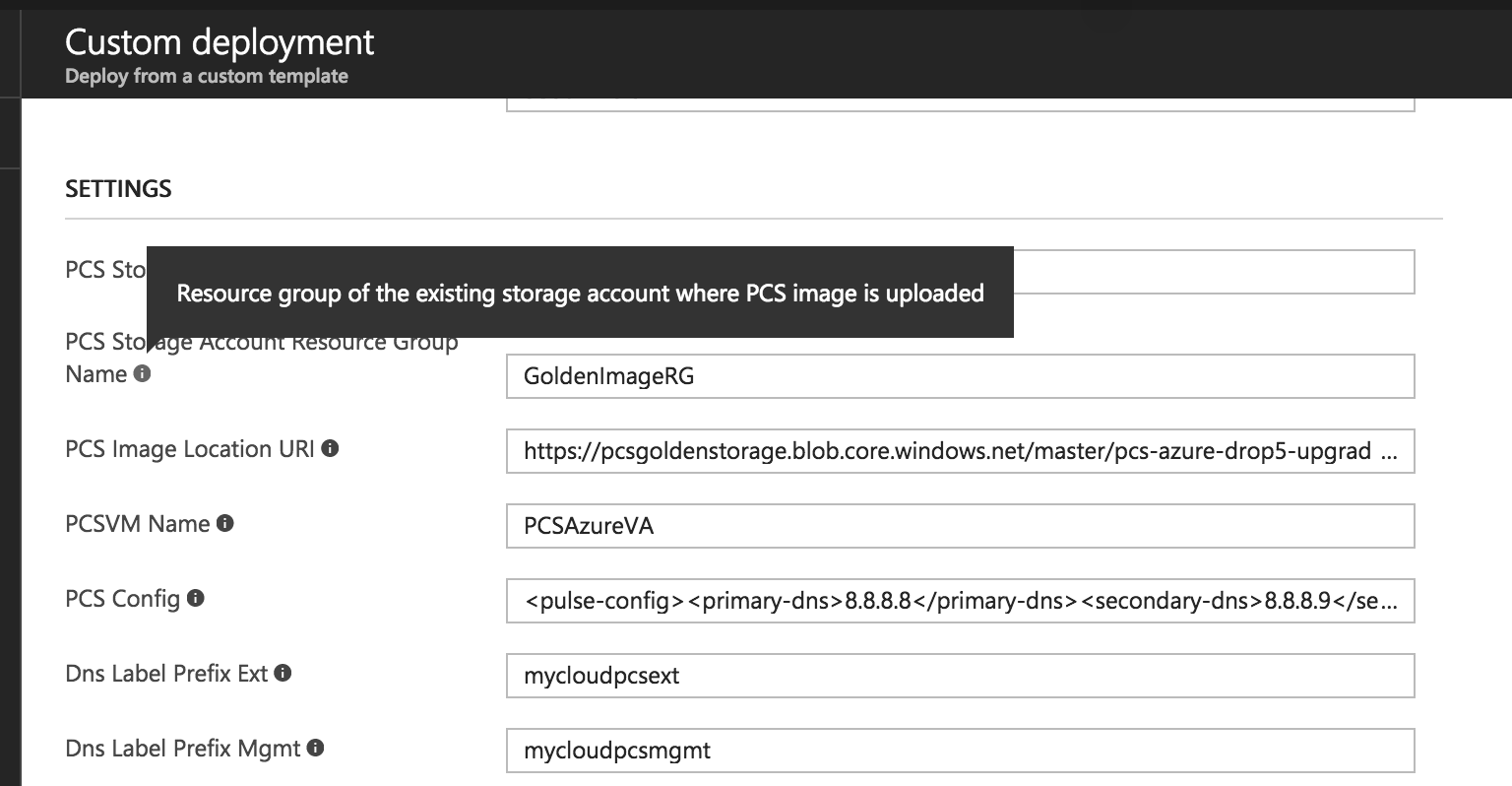

Custom Deployment

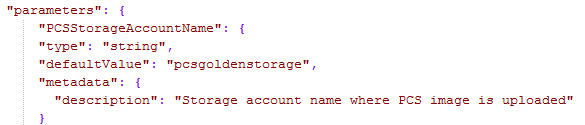

ICS Storage Account Name: This is the name of the ICS Storage Account where the ICS Azure vhd image is stored.

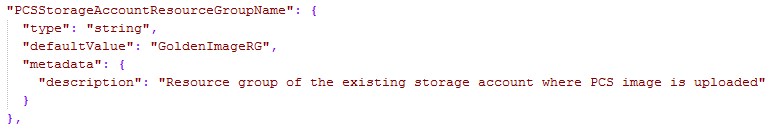

ICS Storage Account Resource Group Name: The is the name of the ICS Storage Account Resource Group where the ICS Azure vhd image is stored.

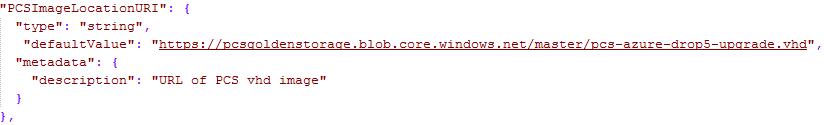

ICS Image Location URI: The is the URL to the location where ICS Azure vhd image is stored.

ICS VM Name: This is the name given to ICS Virtual Appliance.

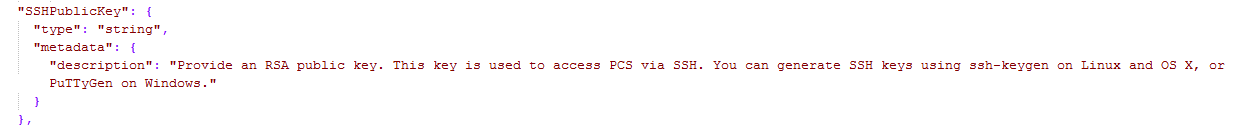

SSH Public Key: This is an RSA public key that is used to access Ivanti Connect Secure via SSH.

ICS Config: This section contains provisioning parameters that are required during the deployment of a Virtual Appliance. An XML-based configuration file can be present in another Virtual Machine in Azure cloud or in the corporate network which is accessible for Ivanti Connect Secure through site-to-site VPN between Azure and the corporate data center.

Ivanti Connect Secure accepts the following parameters as provisioning parameters:

•primary-dns

•secondary-dns

•wins-server

•dns-domain

•username

•ssh-publickey

•cert-common-name

•cert-random-text

•cert-organization

•config-download-url

•config-data

•auth-code-license

•enable-license-server

•accept-license-agreement

•enable-rest

For details about these parameters, see Ivanti Connect Secure Provisioning Parameters.

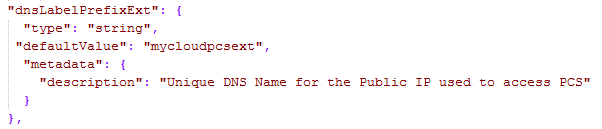

DNS Label Prefix Ext: This is the prefix for External Interface DNS label.

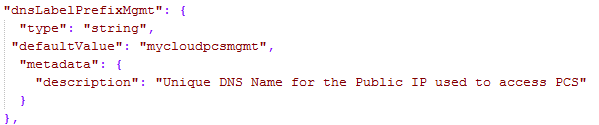

DNS Label Prefix Mgmt: This is the prefix for Management Interface DNS label.

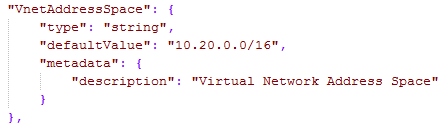

VNet Address Space: This is a Virtual Network address space.

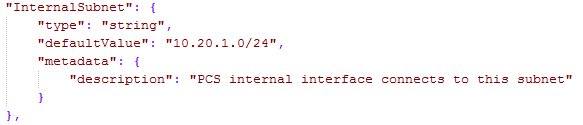

Internal Subnet: Subnet from which Ivanti Connect Secure Internal Interface needs to lease IP.

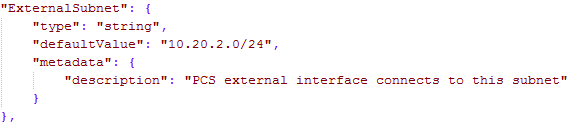

External Subnet: Subnet from which Ivanti Connect Secure External Interface needs to lease IP.

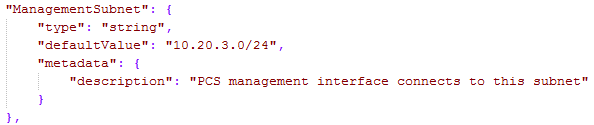

Management Subnet: Subnet from which Ivanti Connect Secure Management Interface needs to lease IP.

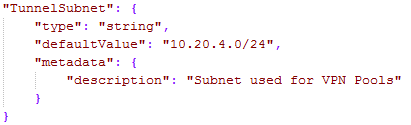

Tunnel Subnet: Subnet which will be configured as Tunnel IP pool in Ivanti Connect Secure VPN profile.
