Using the User Summary Report

This topic describes the user summary report.

About the User Summary Report

The user summary report displays user statistics such as realm, username, last login time, last login IP, successful login, and so on for each user based on the user activity in the selected time range.

Displaying the User Summary Report

To display the user summary report, select System > Reports > User Summary.

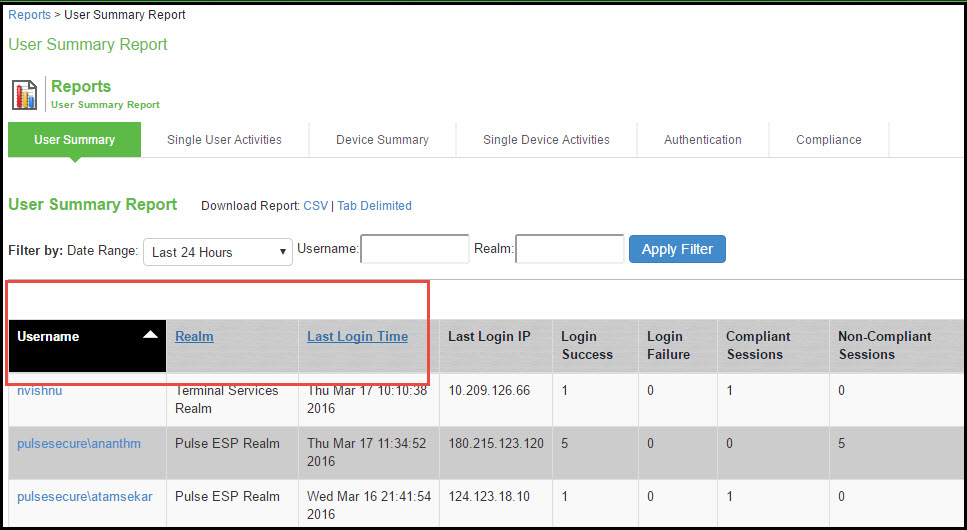

Figure shows the user summary report for Ivanti Connect Secure.





Table describes the columns on the user summary report.

Column	Description
Username	Specifies the name of the user.
Realm	Specifies the realm.
Last Login Time	Specifies the last time the user logged in.
Last Login IP	Specifies the last IP that the user logged in with.
Login Success	Specifies the number of successful logins.
Login Failure	Specifies the number of failed logins.
Compliant Sessions	Specifies the number of compliant sessions.
Non Compliant Sessions	Specifies the number of non compliant sessions.
Remediated Sessions	Specifies the number of remediated sessions.
Total Session Length	Specifies the total length of the sessions.
Average Session Length	Specifies the average length of the sessions.

Applying Data Filters

To apply a data filter:

1.Select System > Reports > User Summary.

2.Select one of the following periods from the Date Range list box:

•Last 24 Hours - (Default) Refers to the last 24 hours from the current hour.

•Last 7 Days - Refers to current day and the previous last 6 days.

•Last 30 Days - Refers to current day and the previous last 29 days.

3.Enter search criteria in one or more of the following attribute columns:

•Username

•Realm

4.Click Apply Filter.

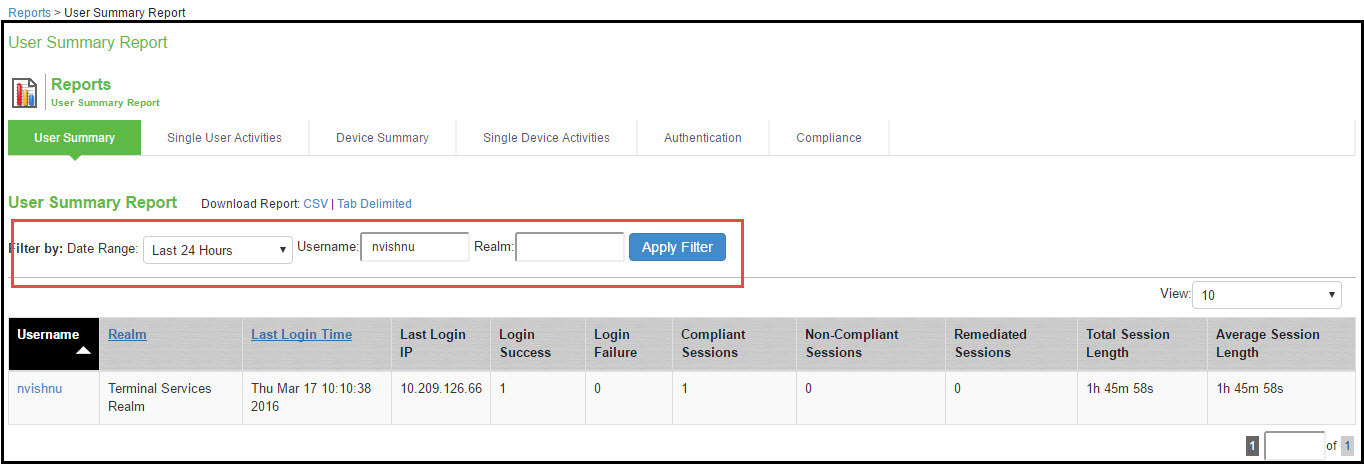

Figure shows the user summary report filtered by username for Ivanti Connect Secure.

Sorting Records

The data source determines the default sort order of the data rows in the report. Typically, data appears randomly, so sorting is an important task in creating a useful report. You can sort single data columns or multiple columns.

To sort the user summary report:

1.Select System > Reports > User Summary.

2.Select one of the following columns from the user summary report table and click either the ascending or descending order icon.

•Username

•Realm

•Last Login Time

The username column is sorted in ascending order by default.

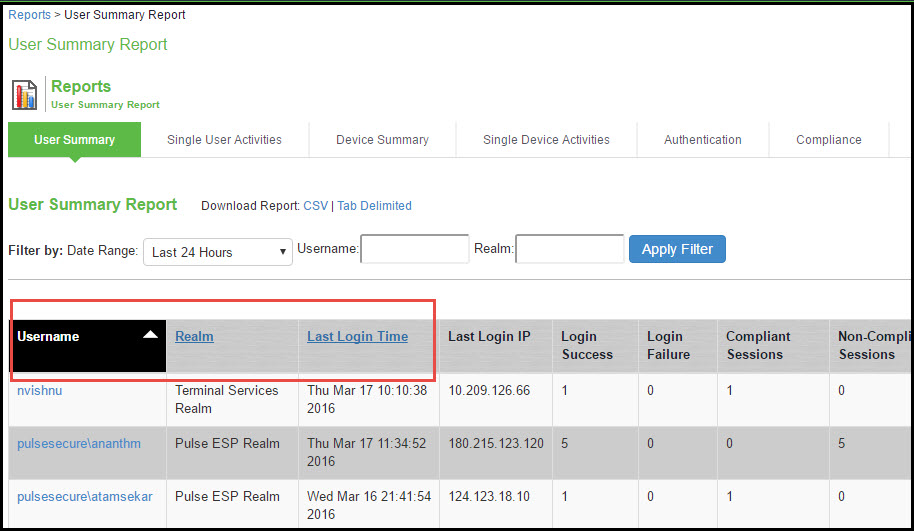

Figure shows the user summary report sorted by username for Ivanti Connect Secure.

Drilling Down to the Single User Report

To drill down to a single user report:

1.Select System > Reports > User Summary.

2.Click the username to view the single user report.

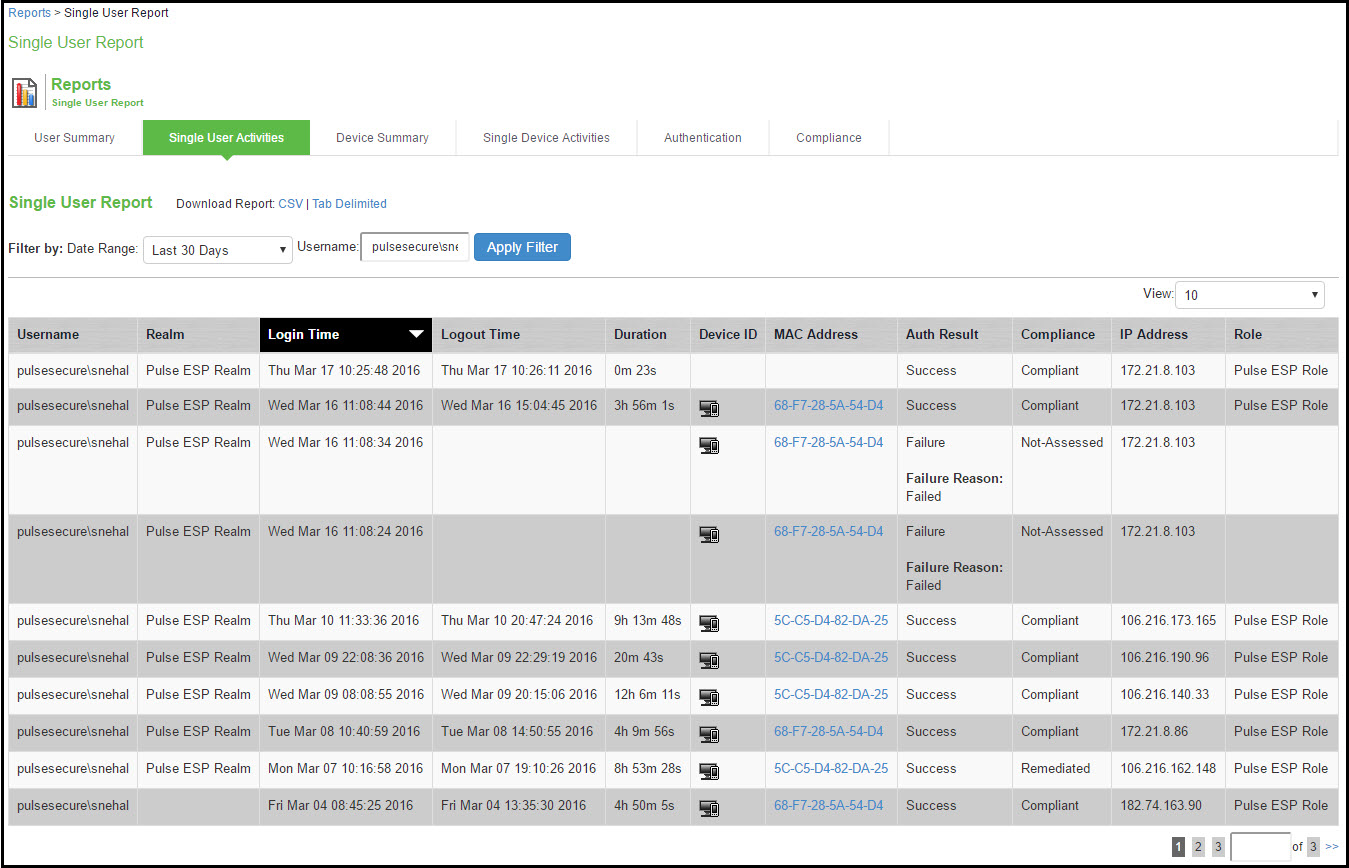

Figure shows the single user report displayed for Ivanti Connect Secure.

Exporting User Summary Report

To export device summary report:

1.Select System > Reports > User Summary.

2.Select a Download Report option.

•CSV - Exports the report in CSV format.

•Tab Delimited - Exports the report in tab-delimited format.

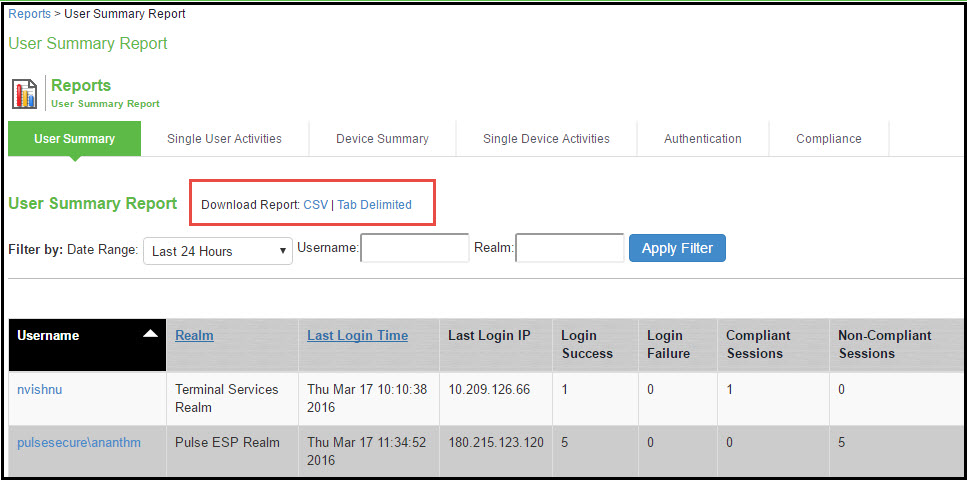

Figure shows the export user summary report for Ivanti Connect Secure is similar.
