Example Configuration: Guest Access with HFCL

The goal is to provide secure and role-based access control for Guest Access using HCL through Ivanti Policy Secure.

The IPS configurations for Guest access are available at IPS configurations.

While configuring a Radius Client ensure the Radius is selected as standard.

For more information, see HFCL documentation.

Configuring the HFCL WLC

To configure HFCL, perform the following:

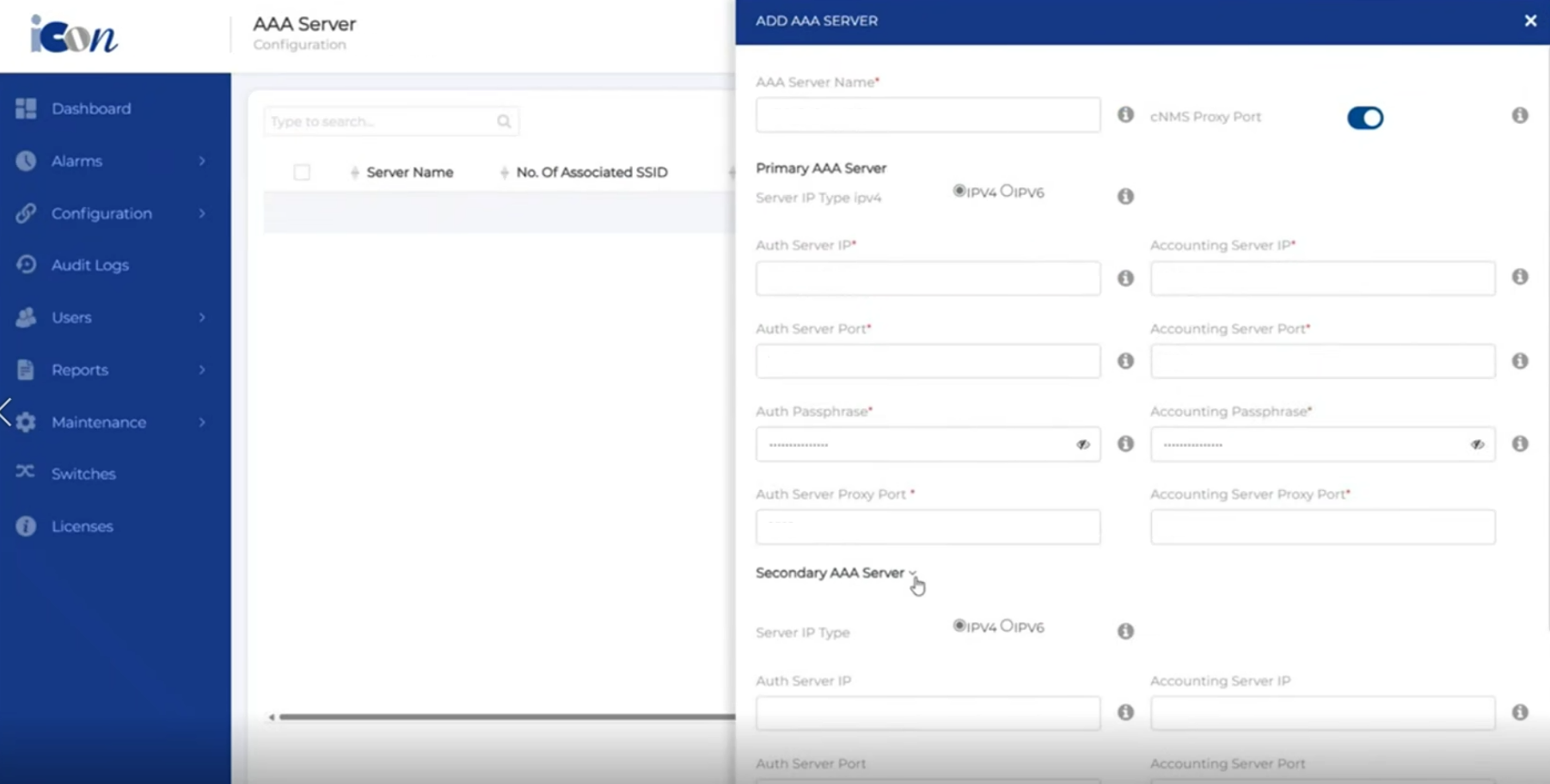

1. Configuring AAA server

   Navigate to Configuration >AAA Servers>ADD and enter the required configuration:

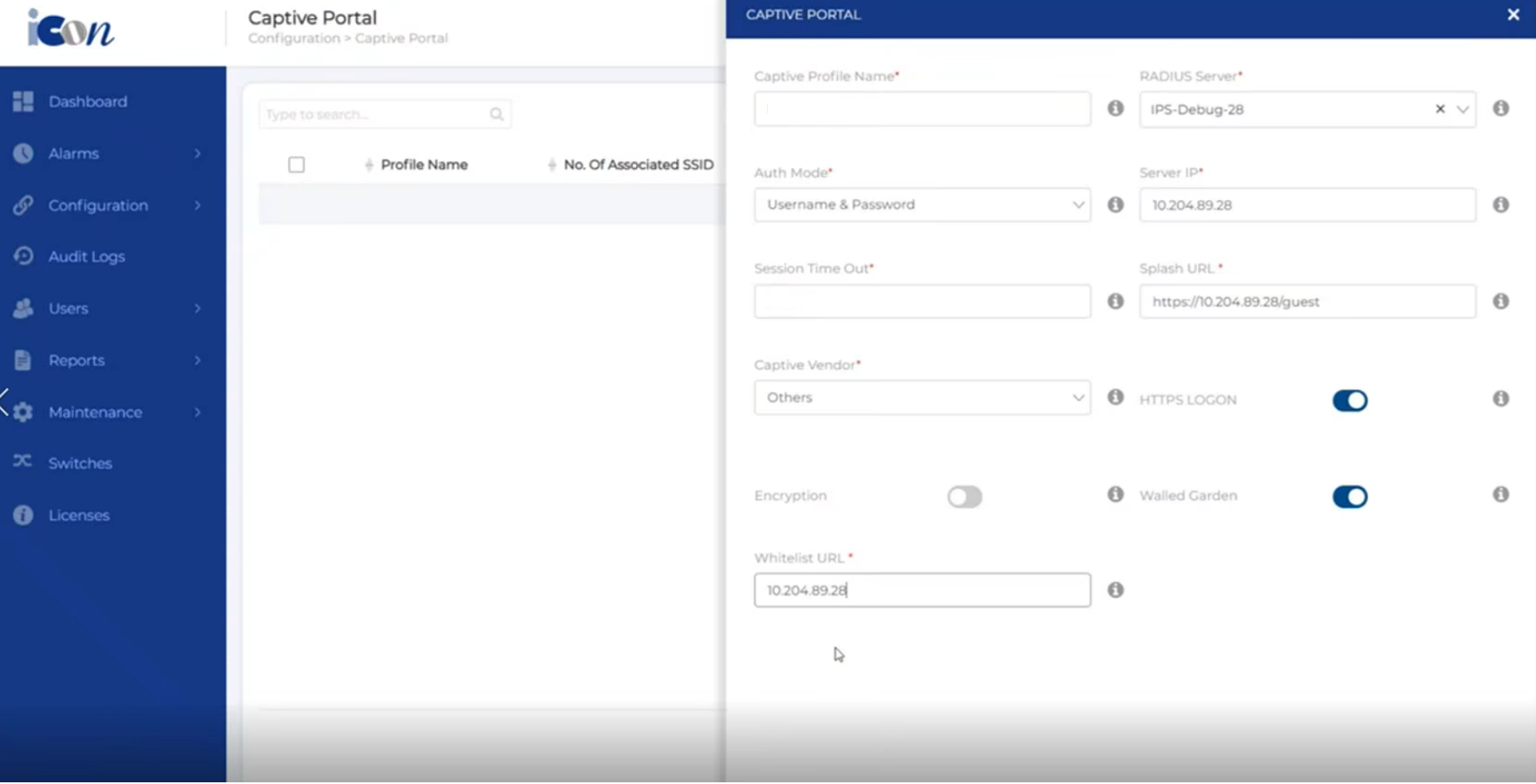

2. Configuring Captive Portal

   Navigate to Configuration > Captive portal >ADD and enter captive portal details.

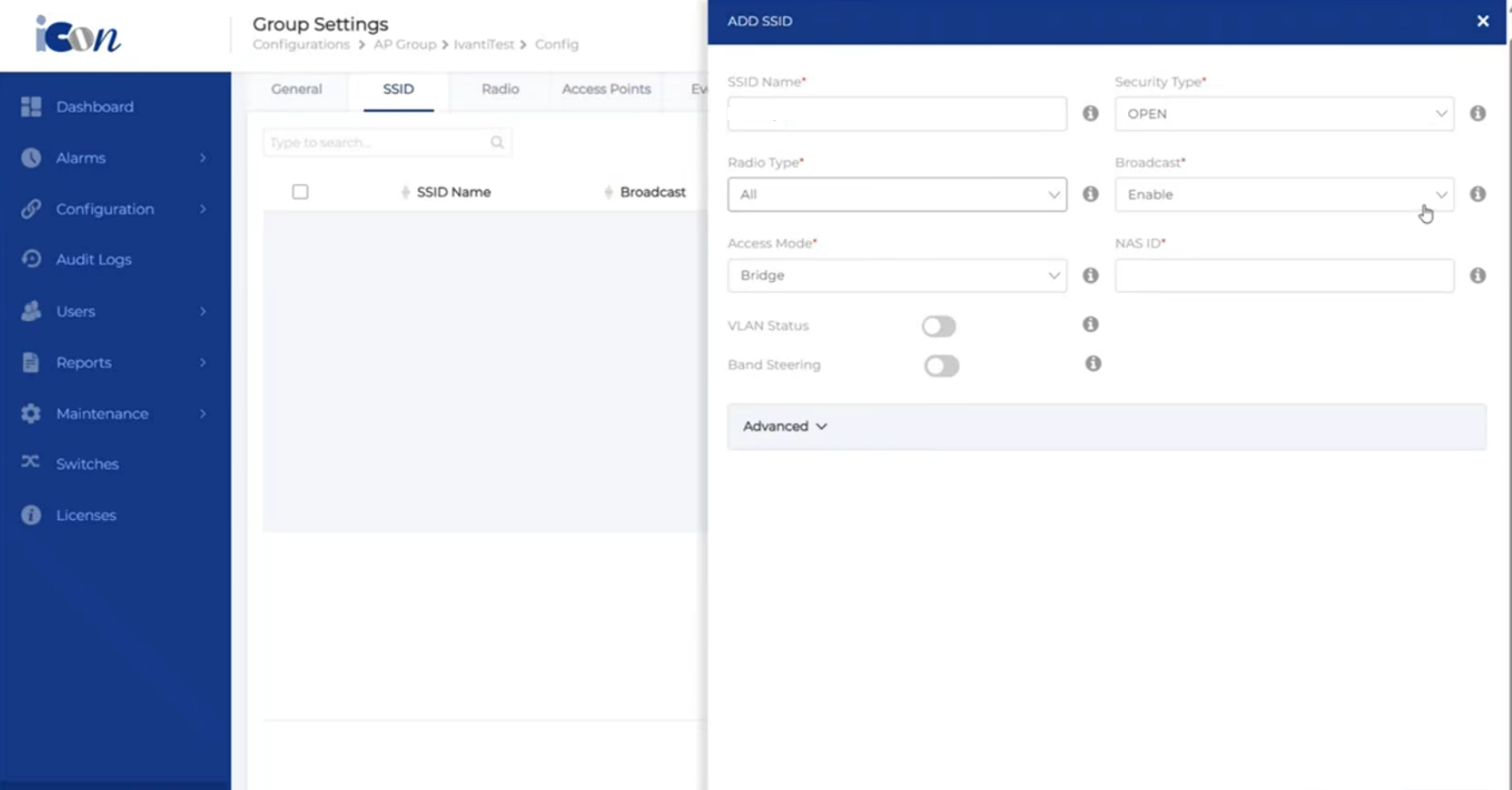

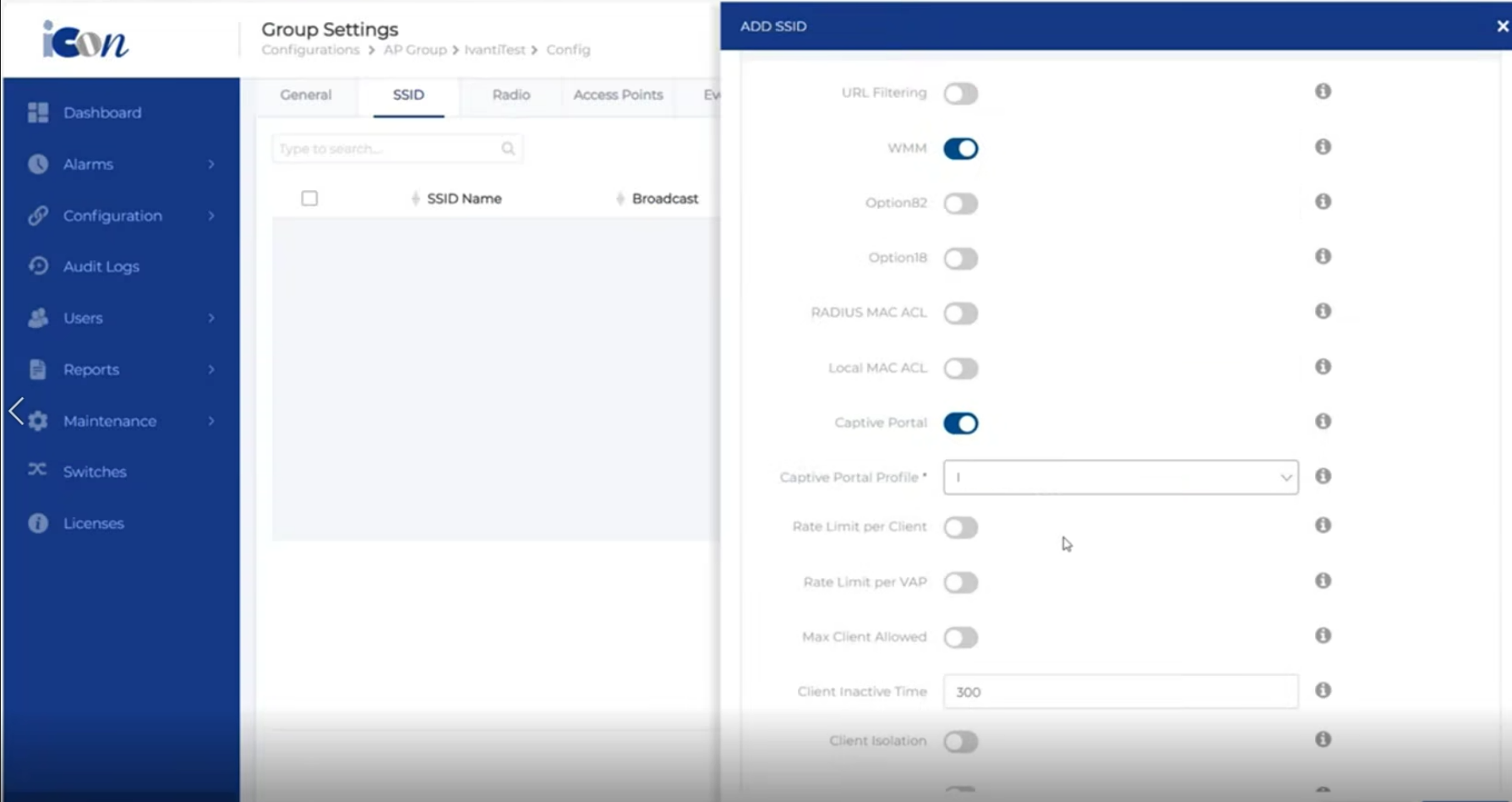

3. Configuring SSID

   Navigate to Configuration>AP Groups> Setting > SSID.
