Using the Single Device Report

This topic describes the single device report.

Overview

The single device activities report displays the device activity information such as username, realm, log in time, log out time, device detail, MAC address, authentication mechanism, authentication result, compliance, IP address, role and so on for each device.

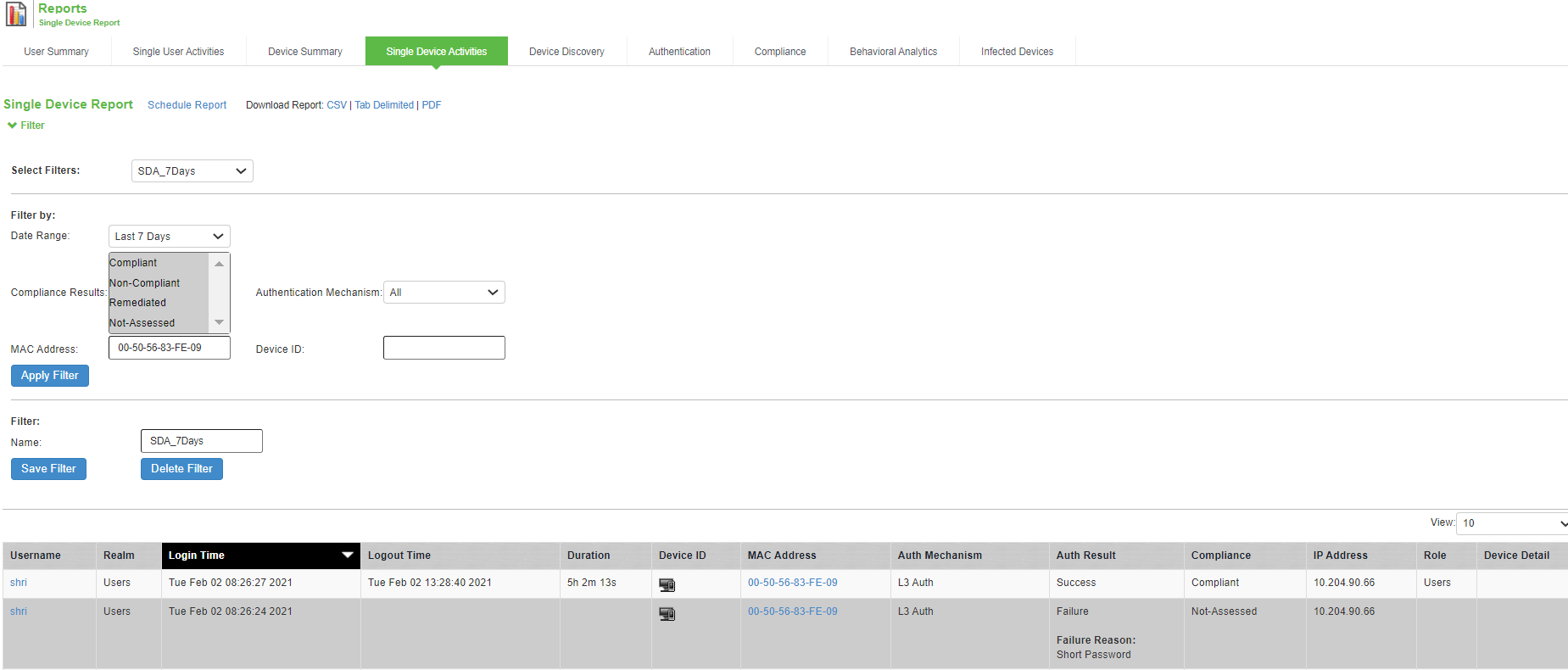

To display the single device activities report, select System > Reports > Single Device Activities.

Table describes the columns on the single device report.

Column

Description

Username

Specifies the name of the user.

Realm

Specifies the realm.

Login Time

Specifies the time the user logged in.

Logout Time

Specifies the time the user logged out.

Duration

Specifies the total duration of the user session.

Device ID

Specifies a unique identifier used to identify an end point. Click the device ID icon to view a single device report.

MAC Address

Specifies the MAC address of the device.

Auth Mechanism

Specifies the authentication mechanism: 802.1x, Layer 3, MAC address.

Auth Result

Specifies the authentication result.

Compliance

Specifies the Host Checker posture assessment results: Compliant, Not Compliant, Not Assessed, or Remediated.

IP Address

Specifies the IP that the user logged in with.

Role

Specifies the role of the user.

Device Detail

Displays the URL that is used for connecting to the MDM server.

Creating a new Filter

To create a new filter:

  1. Select System > Reports > User Summary.
  2. Under Filter, enter the name of the filter.
  3. Under Filter by: Select one of the following periods from the Date Range list box:
    • Last 24 Hours– (Default) Refers to the last 24 hours from the current hour.
    • Last 7 Days– Refers to current day and the previous last 6 days.
    • Last 30 Days– Refers to current day and the previous last 29 days.
    • Custom– Enter the custom from and till date range.
  4. Enter search criteria in one or more of the following attribute columns:
    • Compliance Results
    • MAC Address
    • Device ID
    • Authentication Mechanism (L3 Auth, 802.1X Auth, MAC auth, all)
  5. Click Save Filter.

Once the filter is created, it gets listed in the filter drop-down. Administrator can also choose to edit the existing filter to customize the report based on the requirement. The filter can also be deleted using the Delete Filter option.

Applying Data Filters

To apply a data filter:

  1. Select System > Reports > Single Device Activities.
  2. Select one of the following periods from the Filter by: Date Range list box:
    • Last 24 Hours– (Default) Refers to the last 24 hours from the current hour.
    • Last 7 Days– Refers to current day and the previous last 6 days.
    • Last 30 Days– Refers to current day and the previous last 29 days.
    • Custom– Enter the custom from and till date range.
  3. Enter search criteria in one or more of the following columns:
    • Compliance Results
    • MAC Address
    • Device ID
    • Authentication Mechanism (L3 Auth, 802.1X Auth, MAC auth, all)
  4. Click Apply Filter.

Sorting Records

The data source determines the default sort order of the data rows in the report. Typically, data appears randomly, so sorting is an important task in creating a useful report. You can sort single data column.

To sort the single device activities report:

  1. Select System > Reports > Single Device Activities.
  2. Select Login Time column and click either the ascending or descending order icon.
  3. You can sort the column in either ascending order or descending order.

Exporting Single Device Activities Report

To export single device activities report:

  1. Select System > Reports > Single Device Activities.
  2. Select a Download Report option.
    • CSV– Exports the report in CSV format.
    • Tab Delimited– Exports the report in tab-delimited format.
    • PDF– Exports the report in PDF format.
