Using the User Summary Report
This topic describes the user summary report. It includes the following information:
Overview

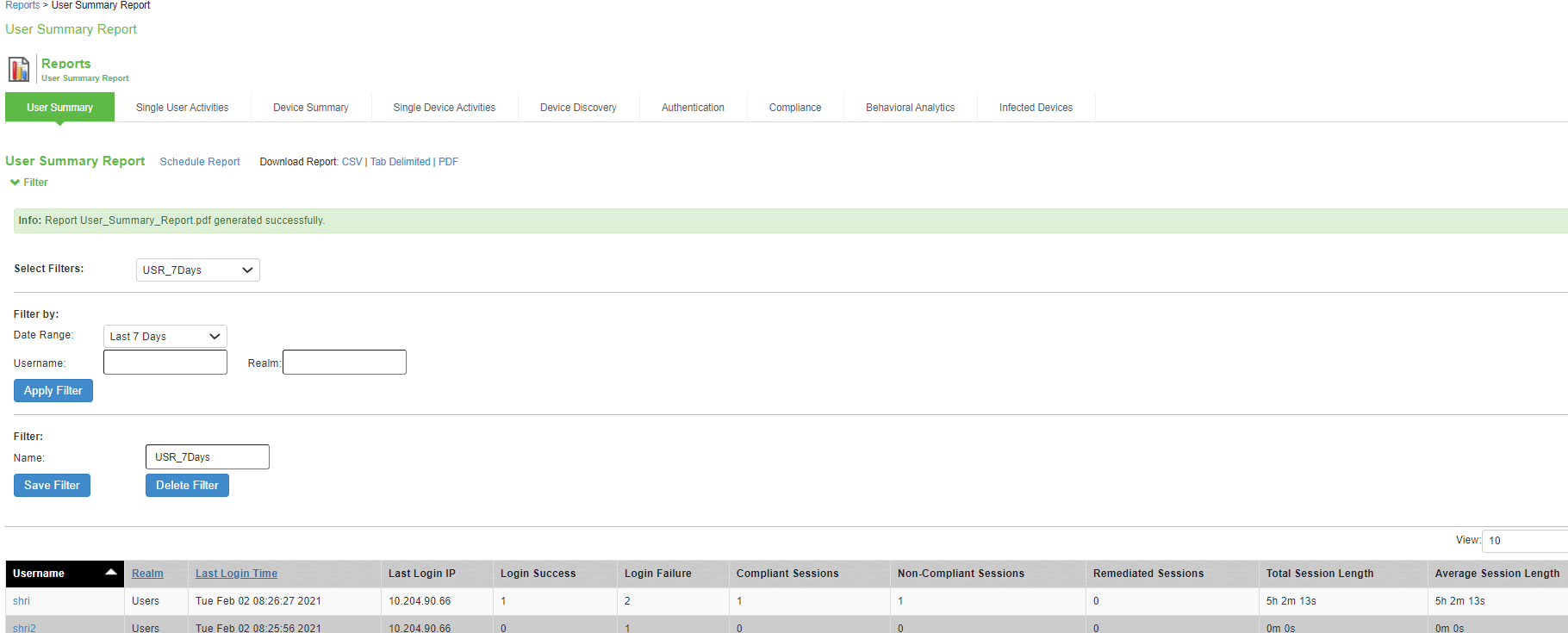

The user summary report displays user statistics such as realm, username, last log in time, last log in IP, successful log in, and so on for each user based on the user activity in the selected time range.
To display the user summary report, select System > Reports > User Summary.
Table describes the columns on the user summary report.
Column |
Description |
---|---|
Username |
Specifies the name of the user. |
Realm |
Specifies the realm. |
Last Login Time |
Specifies the last time the user logged in. |
Last Login IP |
Specifies the last IP that the user logged in with. |
Login Success |
Specifies the number of successful log ins. |
Login Failure |
Specifies the number of failed log ins. |
Compliant Sessions |
Specifies the number of compliant sessions. |
Non Compliant Sessions |
Specifies the number of non compliant sessions. |
Remediated Sessions |
Specifies the number of remediated sessions. |
Total Session Length |
Specifies the total length of the sessions. |
Average Session Length |
Specifies the average length of the sessions. |
Creating a new Filter
To create a new filter:
- Select System > Reports > User Summary.
- Under Filter, enter the name of the filter.
- Under Filter by: Select one of the following periods from the Date Range list box:
- Last 24 Hours– (Default) Refers to the last 24 hours from the current hour.
- Last 7 Days– Refers to current day and the previous last 6 days.
- Last 30 Days– Refers to current day and the previous last 29 days.
- Custom– Enter the custom from and till date range.
- Enter search criteria in one or more of the following attribute columns:
- Username
- Realm
- Click Save Filter.
Once the filter is created, it gets listed in the filter drop-down. Administrator can also choose to edit the existing filter to customize the report based on the requirement. The filter can also be deleted using the Delete Filter option.
Applying Data Filters
To apply a data filter:
- Select System > Reports > User Summary.
- Select one of the following periods from the Date Range list box:
- Last 24 Hours– (Default) Refers to the last 24 hours from the current hour.
- Last 7 Days– Refers to current day and the previous last 6 days.
- Last 30 Days– Refers to current day and the previous last 29 days.
- Custom– Enter the custom from and till date range.
- Enter search criteria in one or more of the following attribute columns:
- Username
- Realm
- Click Apply Filter.
Sorting Records
The data source determines the default sort order of the data rows in the report. Typically, data appears randomly, so sorting is an important task in creating a useful report. You can sort single data columns or multiple columns.
To sort the user summary report
- Select System > Reports > User Summary.
- Select one of the following columns from the user summary report table and click either the ascending or descending order icon.
- Username
- Realm
- Last Login Time
The username column is sorted in ascending order by default.
Drilling Down to the Single User Report
To drill down to a single user report:
- Select System > Reports > Single User Activities.
- Enter the username and specify the data range.
- Click Apply Filter.
Exporting User Summary Report
To export device summary report:
- Select System > Reports > User Summary.
- Select a Download Report option.
- CSV– Exports the report in CSV format.
- Tab Delimited– Exports the report in tab-delimited format.
- PDF– Exports the report in PDF format.
