Configuring Ruckus WLC

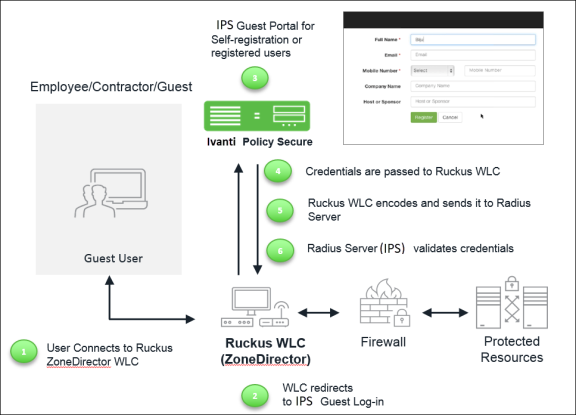

Ruckus WLC is configured as Radius Client where Ivanti Policy Secure is the Radius Server. Figure illustrates the workflow of Guest Access on Ivanti Policy Secure for Ruckus WLC. This section provides examples of how to configure the Ruckus WLC. For more information, see Ruckus documentation.

To configure Ruckus WLC with Ivanti Policy Secure:

1. Connect user/endpoint to the Ruckus Wireless network with open SSID over 802.1X with restricted access through ACLs.
2. Redirect Ruckus WLC guest to external (Ivanti Policy Secure) captive portal when guest tries to access a web-resource.
3. Enter credentials on captive portal page.
4. For guest access authentication, Ivanti Policy Secure provides guest user credentials to Ruckus SmartZone WLC’s management interface via REST API.
5. Ruckus WLC can encode the credentials and send it to a RADIUS server (Ivanti Policy Secure) through Radius Access Request.
6. The RADIUS server validates the credentials and sends a RADIUS response, which contains standard RADIUS attributes and Vendor Specific Attributes.
7. Ruckus WLC provides network access to the guest by changing VLAN based on Ivanti Policy Secure role-based policy.
