Troubleshooting

Ivanti Policy Secure(Ivanti Policy Secure) provides logging and monitoring capabilities to help you track events and user activities. The system generates event logs related to system performance, administrator actions, network communications, access management framework results, user sessions, and so forth.

The available logs, includes:

  • Event Logs- This file contains a variety of system events, such as session timeouts, systems errors and warnings, server restart notifications and connectivity requests.
  • Admin Access Logs- This file contains administration information, including administrator changes to user, system and network settings, such as changes to session timeouts, license changes and so on.

TACACS+ Event and Admin Logs

Event Logs

  1. Logging when count of TACACS+ connection reached system limit.

    Minor – Limit of <max count> TACACS+ concurrent users reached

    Minor

    TAC31628

    2018-01-31 14:40:48 - ic - [127.0.0.1] System()[] - Limit of 2 TACACS+ concurrent users reached

  2. Dropping the incoming TACACS+ connection because received from unknown host.

    Major - TACACS+ request received from unknown TACACS+ client <switch IP>

    Major

    TAC31629

    2018-01-31 14:37:54 - ic - [127.0.0.1] System()[] - TACACS+ request received from unknown client 10.204.89.239

  3. Dropping the incoming TACACS+ connection due to shared-secret mismatch.

    Minor - Invalid TACACS+ packet from <switch IP>, discarding.

    Minor

    TAC31628

    2018-01-31 14:35:58 - ic - [127.0.0.1] System()[] - Invalid TACACS+ packet from 10.204.89.239, discarding. Incorrect shared secret

Admin Access Logs

  1. Exec Authorization [Only when Authorization is enabled under authorization setting]

    • Log for exec authorization success

      TACACS+ Shell authorization successful for <user> on switch-<switch ip> and attributes are: privilege = %d, idle-timeout = %d, session-timeout = %d

      Info

      TAC31611

      2018-01-30 18:59:03 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ Shell authorization successful for tac_user on 10.204.89.239 and attributes are: privilege = 15, idle-timeout = 5, session-timeout = 60'

    • Log for exec authorization failure due to no shell policy assigned to roles.

      TACACS+ Shell authorization rejected for <user> on switch-<switch ip>. Reason- %s

      Reasons-

      • No session found

      • No Shell policy found for the assigned roles

      Info

      TAC31612

      2018-01-30 19:06:45 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ Shell authorization rejected for tac_user on 10.204.89.239. Reason: No Shell policy found for the assigned roles'

  2. Command authorization [Only when Authorization is enabled under authorization setting]

    • Log for command authorization success.

      TACACS+ Authorization successful for command-%s from <user> on switch-<switch ip>

      Info

      TAC31611

      2018-01-30 19:08:14 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ Authorization successful for command-'show version' from tac_user on 10.204.89.239'

    • Log for command authorization failure due to no shell policy assigned to roles or due to deny under command set.

      TACACS+ authorization rejected for command-<cmd> from <user> on switch-<switch ip>. Reason- %s

      Reasons-

      • No session found
      • No Shell policy found for the assigned roles

      Info

      TAC31612

      2018-01-30 19:37:02 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ authorization rejected for command-'show version' from tac_user on 10.204.89.239. Reason- No session found'

      • Matched with the rule – [command = %s, Arguments = %s, action = %s] in shell policy-%s

      Info

      TAC31612

      2018-01-30 19:11:31 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ authorization rejected for command-'menu ' from tac_user on 10.204.89.239. Reason- Matched with the rule – [command = menu, Arguments = null, action = deny] in shell policy-tacacs_policy'

      • No match found. Default action is deny in shell policy-%s

      Info

      TAC31612

      2018-01-30 19:12:31 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'TACACS+ authorization rejected for command-'display arp' from tac_user on 10.204.89.239. Reason- No match found. Default action is 'deny' in shell policy-tacacs_policy'

  3. Login Authentication: [Only when Administrator login is enabled under admin access setting]

    • Login Success

      Info

      AUT30684

      2018-01-30 18:59:02 - ic - [ xx.xxx.xx.xxx ] tac_user(tac_admin_realm)[] - Primary authentication successful for tac_user/System Local from 10.204.59.223(Shell login to 10.204.89.239).

    • Login failure due to authentication failure.



      AUT23458

      2018-01-30 19:15:10 - ic - [10.204.59.223] tac_user(tac_admin_realm)[tac_admin_role] - Login failed using auth server System Local (Local Authentication). Reason: Failed

    • Login failure due to restrictions.

      Info

      AUT23458

      2018-01-30 19:04:23 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Login failed. Reason: No Roles

    • Login failure due to no role available.

      Info

      AUT23458

      2018-01-30 19:04:23 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Login failed. Reason: No Roles

    • Session deletion due to accounting stop received

      Info

      AUT31627

      2018-01-30 19:23:43 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - 'Received a TACACS+ Accounting stop request. Terminated Session.'

    • Session deletion due to session timeout.

      Info

      ADM20664

      2018-01-30 19:34:40 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Session timed out for tac_user/tac_admin_realm due to inactivity (last access at 19:29:38 2018/01/30). Idle session identified during routine system scan.

  4.   Enable Authentication: [Only when Administrator login is enabled under admin access setting]

    • Enable authentication success.

      Info

      AUT30684

      2018-01-30 19:28:09 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[] - Enable Service authentication successful for tac_user/System Local from 10.204.59.223(Shell login to 10.204.88.10).

    •  Login failure due to authentication failure.

      Info

      AUT23458

      2018-01-30 19:29:44 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Login failed using auth server System Local (Local Authentication). Reason: Failed

    •  Login failure due to restrictions.

      Info

      AUT23458

      2018-01-30 19:31:15 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Login failed. Reason: No Roles

    •  Login failure due to no role available.

      Info

      AUT23458

      2018-01-30 19:31:15 - ic - [xx.xxx.xx.xxx] tac_user(tac_admin_realm)[tac_admin_role] - Login failed. Reason: No Roles

  5. Assigning custom attributes from Ivanti Policy Secure to TACACS+ client (Juniper, F5)

    Info

    TAC31778

    2019-04-23 11:55:11 - Ivanti Policy Secure- [127.0.0.1] user7(Admin realm)[networkadmin] - User assigned TACACS+ attribute(s) (local-user-name=network-admin user-permissions=view deny-commands=show firewall$ allow-commands=edit*)

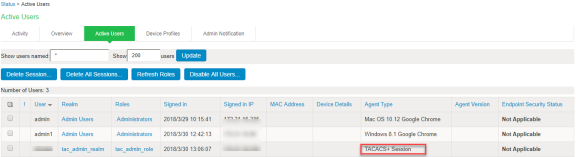

Once the session is established the session is seen as TACACS+ Session in the Active Users Page
