Profiler and Nozomi Networks Integration

The Nozomi Networks is configured as a HTTP Attribute Server and is available under Device Attribute Server settings. The server is manually selected as an active collector to collect information that is used to classify and categorize the devices. The attributes information helps for role mapping.

The collector can only read devices that have a confirmed MAC address and are stored in the Profiler.

Configuring Nozomi Networks as Collector

To configure Nozomi Networks as a device attribute server to perform as an active collector:

1. Configure Nozomi Networks as HTTP attribute server in Ivanti Policy Secure Configuring HTTP Attribute Server .

2. Under MAC Address Realms or User Realms, select the Nozomi HTTP attribute server created in Device Attributes.

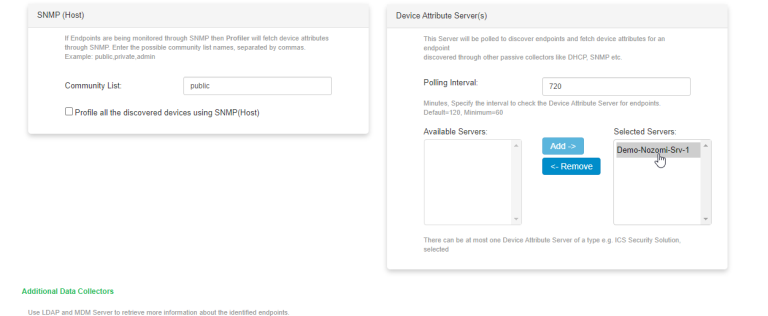

3. Navigate to Profiler > Profiler Configuration > Advance Configuration. Under Device Attribute Server, select the HTTP server as the device attribute server.

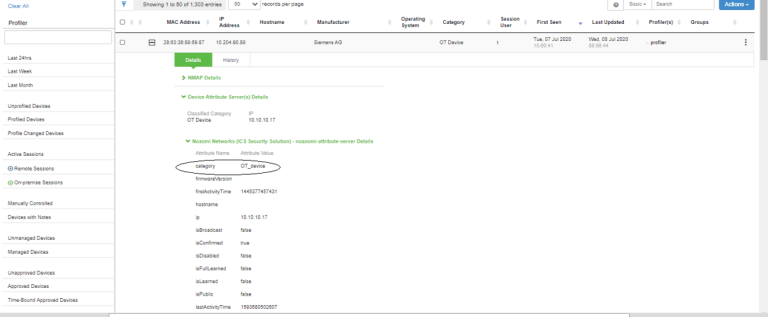

The DDR page displays the endpoint information collected by Nozomi collector.
