SMTP Settings for Guest User Accounts

  1. On Ivanti Policy Secure main page select System > Configuration > Guest Access > SMTP Settings.

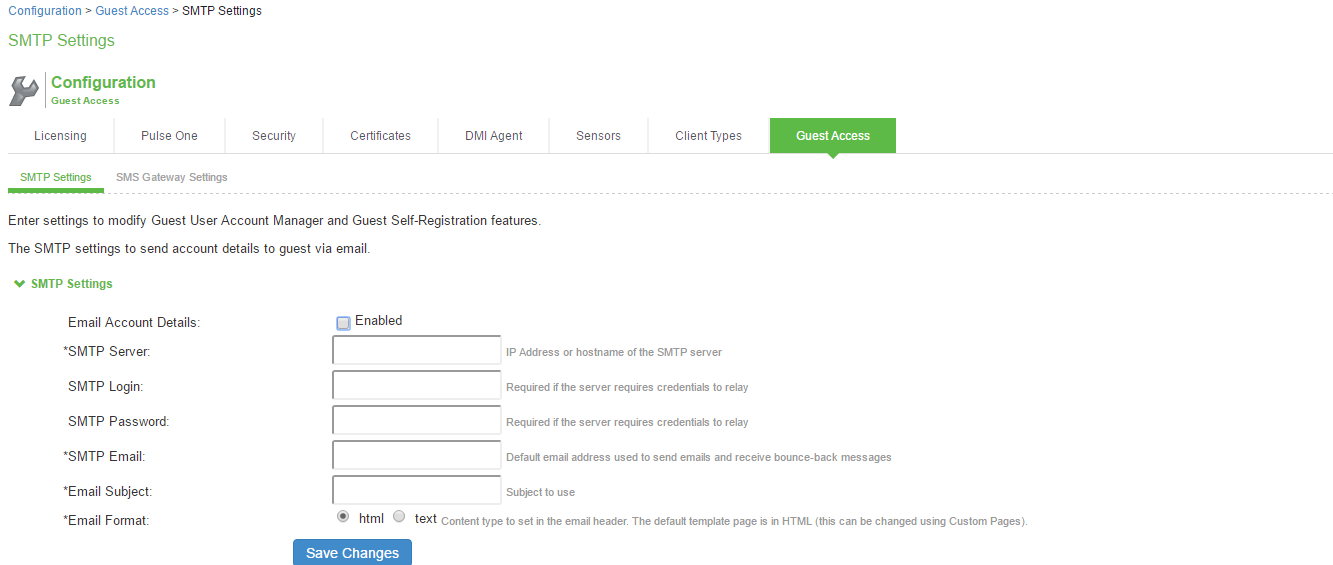

    The SMTP Settings screen appears.

  2. Make necessary changes and click Save Changes to save the settings.

SMS Gateway Settings for Guest User Accounts

Short Message Service (SMS) is delivered through an SMS gateway service that supports HTTP, HTTPS, and SMTP (Simple Mail Transport Protocol) delivery. You need to subscribe to an external service to be able to deliver guest details using SMS. The SMS gateway sends SMS in formatted text message using HTTP/HTTPS interface (SMS message) and can also allow email message to be sent as an SMS. An example of an SMS gateway is clickatell.com. You should have a valid account with this third party

To create an account with Clickatell:

  1. Go to http://www.clickatell.com/products/sms_gateway.php, and choose the appropriate API sub-product (connec tion method) you wish to use.

  2. Click on the registration hyperlink.

  3. Select the Account type you would like to use (Local or International).

  4. Enter your personal information to complete the registration form.

  5. Accept the Terms & Conditions.

  6. Click Continue - An email containing your login details such as account login name, password, and clientID will be sent to the email address you have provided.

  7. Activate your account – When user has logged in, and user will be on the Clickatell Central landing page and HTTP API will be added to the account and client API ID will be issued to the account. A single account may have multiple API IDs associated with it.

To enable the SMS gateway settings using Ivanti Policy Secure:

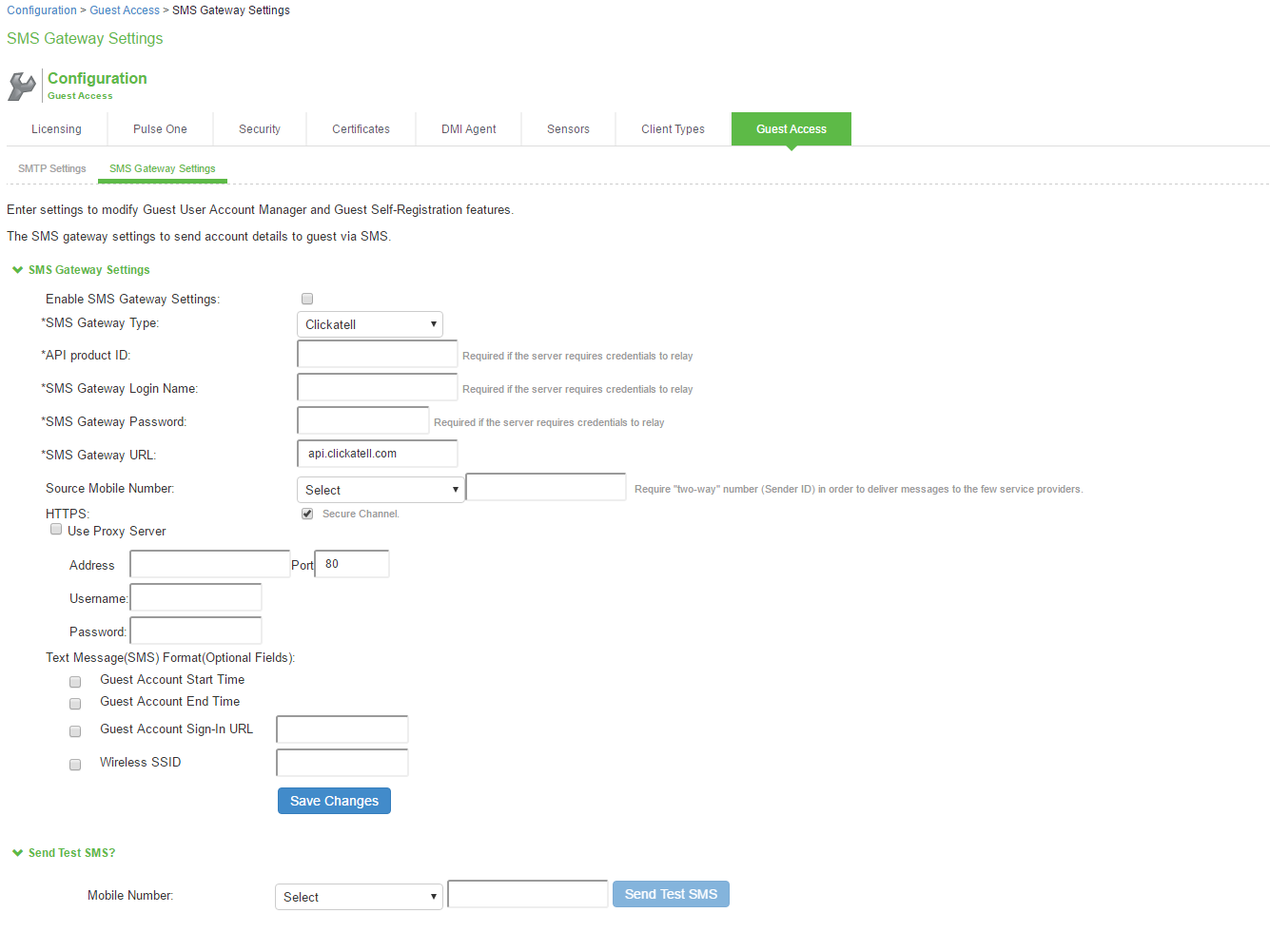

  1. On Ivanti Policy Secure main page select System > Configuration > Guest Access > SMS Gateway Settings.

  2. Select the Enable SMS Gateway Settings check box.

  3. Complete the configuration settings as described in table

  4. Click Save Changes.

  5. Click Send Test SMS.

Settings

Guidelines

SMS Gateway Settings



SMS Gateway Type

Select the gateway type:

Clickatell – Select this option to send SMS as a text message.

Clickatell Email2SMS – Select this option to use email format as an SMS using SMTP.

API product ID

Specify the API product ID that you received from Clickatell during account creation.

SMS Gateway Login Name

Specify the SMS gateway login name.

SMS Gateway Login password

Specify the SMS gateway login password.

Text Message (SMS) Format

(Optional) Select the following fields:

Guest Account Start Time

Guest Account End Time

Guest Account Sign-in URL

Wireless SSID

The following options apply if you select Clickatell as gateway type.

SMS Gateway URL

Specify the SMS Gateway URL.

(Default) https://api.clickatell.com or http://api.clickatell.com

HTTPS

Select this option to use a secure connection. If you don't select this option user will be notified about clear text transmission of guest user credentials.

Use Proxy Server

Select this option to access the internet or SMS gateway URL using a proxy server.

Address

Specify the address of the proxy server and its port.

Username

Specify the username of the proxy server.

Password

Specify the password of the proxy server.

Send Test SMS



Mobile Number

Select the country name and then specify a valid phone number of the guest user. The phone number should not include country code or any special character such as +,*, and so on.

The Ivanti Policy Secure sends a test SMS with the login credentials to this mobile number through SMS.

Source Mobile Number

Specify the sender ID configured in Clickatell Account.
