Configuring Role-Mapping Rules for Profiled Devices on Ivanti Connect Secure

After creating the Profiler, you can use device attributes from the Profiler in the role mapping rules for 802.1X realms for policy enforcement.

To configure role-mapping rules:

1. Select Users > User Realms.

2. Select the realm name.

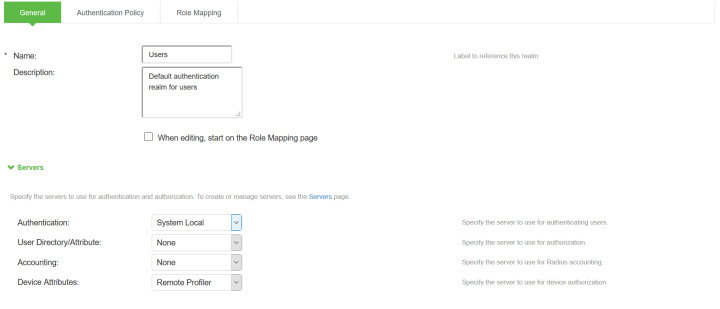

3. Select the Remote Profiler as Device Attributes Server.



4. Click the Role Mapping tab.

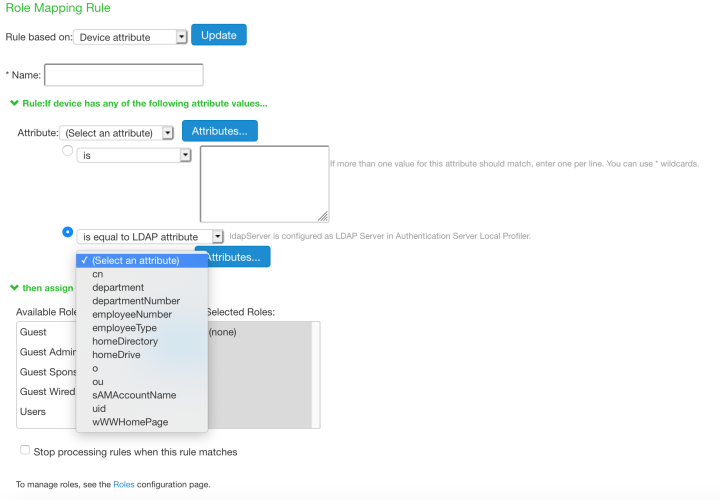

5. Click New Rule.

6. Set Rule based on to "Device Attribute" and click Update.

7. Enter a name for the rule (if creating a new one).

8. Create the new role mapping rules. Select the attributes based on the new device attributes that are now available in the attributes drop-down field. When setting the attribute value, make sure the value you enter is an exact match for the value displayed in the Device Discovery Report table. Wildcards (* and ?) can be used in the attribute value.



9. Assign the roles and click Save Changes.
