IF-MAP Configuration

A high-level overview of the configuration steps needed to set up and run the integration:

  • The Administrator configures IF-MAP clients (Ivanti Policy Secure, Ivanti Connect Secure) on IF-MAP server admin UI from System > IF-MAP Federation.
  • Install the Device certificates and Trusted Server CA from System > Configuration > certificates on both IF-MAP Server and IF-MAP client.
  • From IF-MAP Server admin UI, admin configures PAN Firewall device by entering the following:
    • Name for the PAN/Check Point/ FortiGate Firewall.
    • IP address of the PAN/Check Point/ FortiGate Firewall.
    • API Key for PAN/ Shared Secret for Check Point/ FortiGate
  • Administrator configures the Infranet Enforcer Auth Table Mapping Policies.

When the Ivanti Policy Secure or Ivanti Connect Secure session is exported to IF-MAP server, IF-MAP server provisions user identity details to configured PAN/Check Point/ FortiGate Firewall based on the configured Auth Table Mapping Policies.

Step1: Configuring IF-MAP Server

To configure IF-MAP server on the Ivanti Policy Secure:

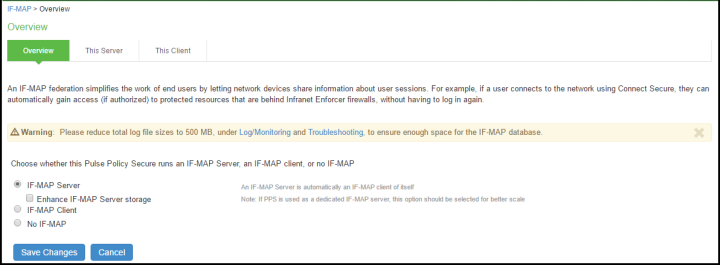

  1. Select System > IF-MAP Federation > Overview.

  2. Select IF-MAP Server.

  3. Click Save Changes.

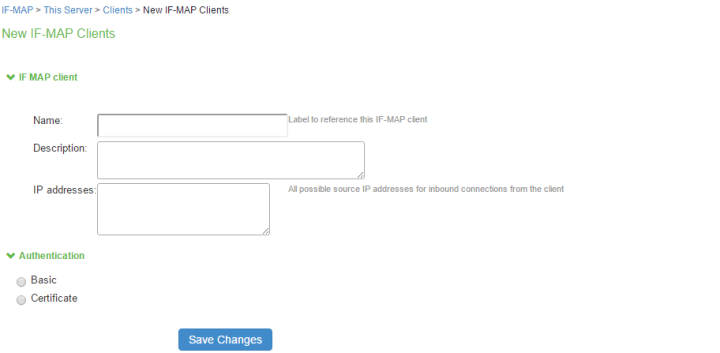

  4. Select IF-MAP > This Server > Clients > New Client and addIvanti Policy Secure/Ivanti Connect Secure as IF-MAP client.

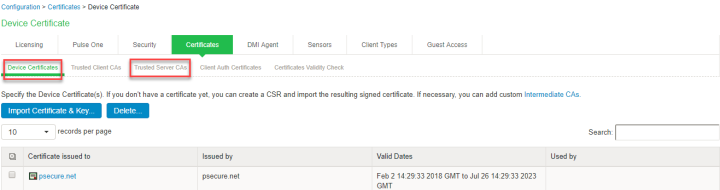

  5. Install the Device certificates and Trusted Server CA from System > Configuration > certificates on both IF-MAP Server.

  6. If the client is added successfully the status turns to green color.

Step 2: Configuring IF-MAP Client

To configure the IF-MAP client:

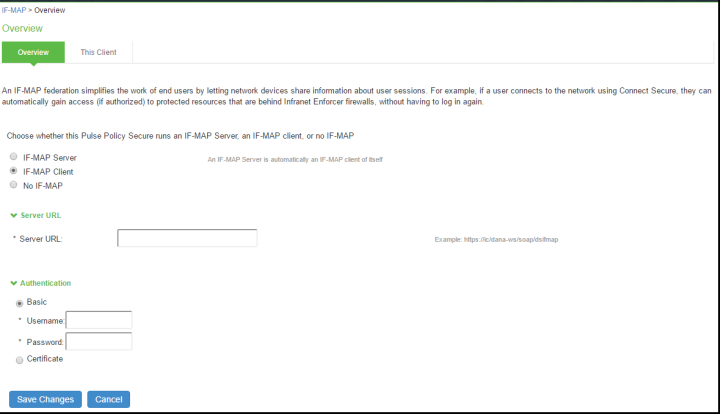

  1. Select System > IF-MAP Federation > Overview.

  2. Select IF-MAP Client.

  3. Enter the IF-MAP server IP address or the complete server URL.


After completing the IF-MAP server and IF-client configurations, configure the IF-MAP Policies. For more information, see Configuring Session Export Policies

This use case supports configuring only Session-Export policies.

Step 3: Viewing the Federated Session Details

To view the federated session details:

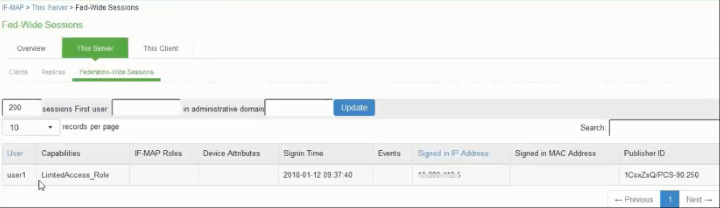

Select System > IF-MAP > This Server > Federation-wide Sessions.
