Creating a Traffic IP Group

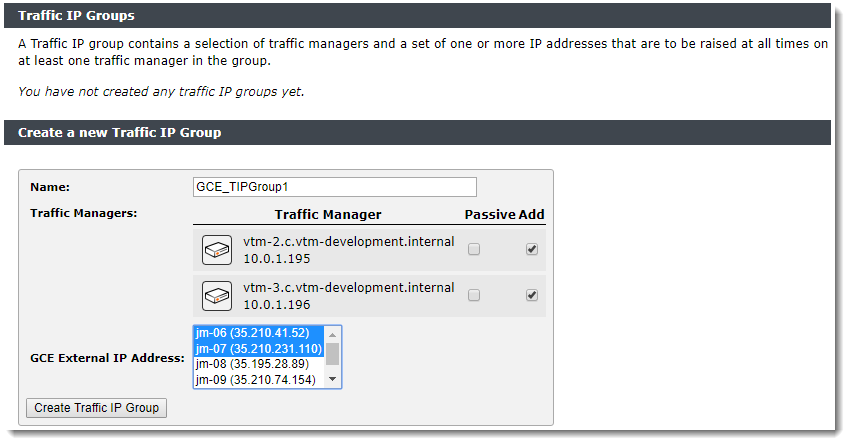

To create a new Traffic IP Group, log into the Admin UI of one of your cluster members and click Services > Traffic IP Groups. Use this page to view and edit your existing Traffic IP Groups, and to create new Traffic IP Groups.

To create a Traffic IP Group and associate it with GCE External IP addresses

1.Enter a group name and select the Traffic Managers you want to include as members of the group.

2.To use an active/passive traffic distribution model, tick the "Passive" checkbox next to those Traffic Managers you want to start in a passive state.

3.Select one or more of the pre-reserved CGE External IP addresses you want this group to host.

4.To create the Traffic IP Group based on these settings, click Create Traffic IP Group.
