Port Information

This section provides information about the ports used in Avalanche.

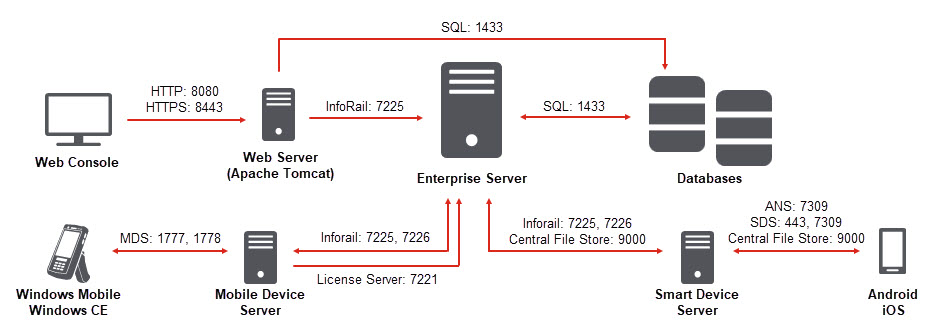

The following diagram provides an overview of the ports each component uses to communicate.

Enterprise/Statistics Server Ports

The following table provides a list of ports that the Enterprise and Statistics Server use to communicate. The Central File Server is installed in the same location as the Enterprise Server.

Traffic Description

Port

UDP/TCP

Source

Destination

LDAP user verification.

389

TCP

Enterprise Server

LDAP server

Requests for files from the Central File Store.

445

TCP

Central File Server

Central File Store

LDAPS user verification.

636

TCP

Enterprise Server

LDAP server

Certificate manager.

5002

TCP

Certificate Manager

Active Directory

Mobile device server requesting licenses from the License Server.

7221

TCP

Mobile Device Server

Enterprise Server

InfoRail transmission of information between servers, consoles, databases.

7225

TCP

Device Servers, Enterprise Server, Web Console, databases

Device Servers, Statistics Server, databases

InfoRail.

7226

TCP

Local traffic

Local traffic

Web Console requesting information.

8080

TCP

Web Console

Web server

File Server connecting to the Central File Store.
(This is the default value, but the port may be configured during installation.)

9019

TCP

Smart Device Server

Smart Devices (if you only have 1 SDS)

Central File Server

Database Inbound Ports

The following table provides a list of the ports used by the databases.

Traffic Description

Port

UDP/TCP

Source

Destination

Transmission of information between servers, consoles, databases.

1433

TCP

Enterprise Server, Statistics Server, Web Console, databases

Databases

Transmission of information between servers and consoles to databases with named instances.

1434

UDP

Enterprise Server, Statistics Server, Web Console, databases

Databases

Web Server Ports

The following table provides a list of the ports used by the web server (Apache Tomcat). The web server is usually installed local to the Enterprise Server.

Traffic Description

Port

UDP/TCP

Source

Destination

Web Console (a browser) contacting the web server. The server defaults to 8080, but it uses 8443 when you have set up an SSL certificate to secure the connection.

8080
-Or-
8443

TCP

Web Console

Web server

Requests for information from the databases.

1433

TCP

Web server

Databases

Performing actions from the Web Console.

7225

TCP

Web server

Enterprise Server

Mobile Device Server Ports

The following table provides a list of the ports that the mobile device server uses to communicate with the enabler installed on a mobile device and the Enterprise Server.

Traffic Description

Port

UDP/TCP

Source

Destination

Traffic between the server and the Enabler.

1777

UDP/TCP

Mobile device, Mobile Device Server

Mobile Device Server, Mobile device

Services persistent connections to mobile devices.

1778

UDP/TCP

Mobile device, Mobile Device Server

Mobile Device Server, Mobile device

InfoRail transmission of information to and from the Enterprise Server.

7225

TCP

Mobile Device Server, Enterprise Server

Enterprise Server, Mobile Device Server

Smart Device Server Ports

The following table provides a list of the ports used by the Smart Device Server.

Traffic Description

Port

UDP/TCP

Source

Destination

InfoRail transmission of information to and from the Enterprise Server.

7225

TCP

Smart Device Server, Enterprise Server

Smart Device Server, Enterprise Server

Request and transmission of self-signed certificate to devices.

8888

TCP

Smart device

Smart Device Server

Traffic between server and Android devices using ANS.

443
7309

TCP

Android device, Smart Device Server

Smart Device Server, Android device

Traffic between server and Android devices using FCM notification services.

443
5228
5229
5230

TCP

Smart Device Server

Android device (via Google notification services)

Traffic between server and iOS devices.

80
443
2195
2196
5223

TCP

Smart Device Server

iOS  device
(via Apple Push Notification Service)

File Server connecting to the Central File Store.
(This is the default value, but the port may be configured during installation.)

9019

TCP

Smart Device Server

Smart Devices

Central File Server

Smart Device Server

Android Enterprise Server Ports

The following table provides a list of the ports that are used by Android Enterprise.

Traffic Description

Port

UDP/TCP

Source

Destination

Enterprise Server requesting enrollment information from the Ivanti EMM Server.

8443

TCP

Enterprise Server

Ivanti EMM Server

Printer Device Server Ports

The following table provides a list of the ports that the printer device server uses to communicate with printer devices.

Traffic Description

Port

UDP/TCP

Source

Destination

Weblink connection between the printer device server and the printer.

8444

TCP

Printer device, printer device server

Printer device server, printer device

Printer discovery.

4201

UDP

Printer device server

Printer device

(Primary port) Commands and files from the printer device server to the printer. Feedback from the printer to the printer device server.

9100

TCP

Printer device, printer device server

Printer device server, printer device

(Secondary port) Bidirectional communication between the printer device server and the printer.

6101

TCP

Printer device, printer device server

Printer device server, printer device

Avalanche Remote Control Ports

The following table provides a list of the ports that are used by Avalanche Remote Control.

Usage

Port

Type

RC Server

Console/ Viewer

RC Client

Contacting a mail server (Optional)

251

1102

TCP

Out

N/A

N/A

Device Connection3

1899

TCP

In/Out

Out

In/Out

Server Control

1900

TCP

In

Out

N/A

Status Checks

1903

UDP

Out

Out

In

Avalanche License Server

7221

TCP

Out

N/A

N/A

Avalanche Web Server

8080

TCP

Out

N/A

N/A
