Port Information
This section provides information about the ports used in Avalanche.

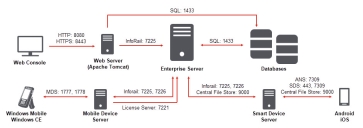

The following diagram provides an overview of the ports each component uses to communicate.
Enterprise/Statistics Server Ports
The following table provides a list of ports that the Enterprise and Statistics Server use to communicate. The Central File Server is installed in the same location as the Enterprise Server.
|
Traffic Description |
Port |
UDP/TCP |
Source |
Destination |
|---|---|---|---|---|
|
LDAP user verification. |
389 |
TCP |
Enterprise Server |
LDAP server |
|
Requests for files from the Central File Store. |
445 |
TCP |
Central File Server |
Central File Store |
|
LDAPS user verification. |
636 |
TCP |
Enterprise Server |
LDAP server |
|
Certificate manager. |
5002 |
TCP |
Certificate Manager |
Active Directory |
|
Mobile device server requesting licenses from the License Server. |
7221 |
TCP |
Mobile Device Server |
Enterprise Server |
|
InfoRail transmission of information between servers, consoles, databases. |
7225 |
TCP |
Device Servers, Enterprise Server, Web Console, databases |
Device Servers, Statistics Server, databases |
|
InfoRail. |
7226 |
TCP |
Local traffic |
Local traffic |
|
Web Console requesting information. |
8080 |
TCP |
Web Console |
Web server |
|
File Server connecting to the Central File Store. |
9000 |
TCP |
Smart Device Server Smart Devices (if you only have 1 SDS) |
Central File Server |
Database Inbound Ports
The following table provides a list of the ports used by the databases.
|
Traffic Description |
Port |
UDP/TCP |
Source |
Destination |
|---|---|---|---|---|
|
Transmission of information between servers, consoles, databases. |
1433 |
TCP |
Enterprise Server, Statistics Server, Web Console, databases |
Databases |
|
Transmission of information between servers and consoles to databases with named instances. |
1434 |
UDP |
Enterprise Server, Statistics Server, Web Console, databases |
Databases |
Web Server Ports
The following table provides a list of the ports used by the web server (Apache Tomcat). The web server is usually installed local to the Enterprise Server.
|
Traffic Description |
Port |
UDP/TCP |
Source |
Destination |
|---|---|---|---|---|
|
Web Console (a browser) contacting the web server. The server defaults to 8080, but it uses 8443 when you have set up an SSL certificate to secure the connection. |
8080 |
TCP |
Web Console |
Web server |
|
Requests for information from the databases. |
1433 |
TCP |
Web server |
Databases |
|
Performing actions from the Web Console. |
7225 |
TCP |
Web server |
Enterprise Server |
Mobile Device Server Ports
The following table provides a list of the ports that the mobile device server uses to communicate with the enabler installed on a mobile device and the Enterprise Server.
|
Traffic Description |
Port |
UDP/TCP |
Source |
Destination |
|---|---|---|---|---|
|
Traffic between the server and the Enabler. |
1777 |
UDP/TCP |
Mobile device, Mobile Device Server |
Mobile Device Server, Mobile device |
|
Services persistent connections to mobile devices. |
1778 |
TCP |
Mobile device, Mobile Device Server |
Mobile Device Server, Mobile device |
|
InfoRail transmission of information to and from the Enterprise Server. |
7225 |
TCP |
Mobile Device Server, Enterprise Server |
Enterprise Server, Mobile Device Server |
Smart Device Server Ports
The following table provides a list of the ports used by the Smart Device Server.
|
Traffic Description |
Port |
UDP/TCP |
Source |
Destination |
|---|---|---|---|---|
|
InfoRail transmission of information to and from the Enterprise Server. |
7225 |
TCP |
Smart Device Server, Enterprise Server |
Smart Device Server, Enterprise Server |
|
Request and transmission of self-signed certificate to device. |
8888 |
TCP |
Smart device |
Smart Device Server |
|
Traffic between server and Android device using ANS. |
443 |
TCP |
Android device, Smart Device Server |
Smart Device Server, Android device |
|
Traffic between server and Android device using GCM. |
443 |
TCP |
Smart Device Server |
Android device (via Google Cloud Messaging service) |
|
Traffic between server and iOS device. |
80 |
TCP |
Smart Device Server |
iOS device |
|
File Server connecting to the Central File Store. |
9000 |
TCP |
Smart Device Server Smart Devices |
Central File Server Smart Device Server |
Remote Control Ports
The following table provides a list of the ports that are used by Avalanche Remote Control.
|
Usage |
Port |
Type |
RC Server |
Console/ Viewer |
RC Client |
|---|---|---|---|---|---|
|
Contacting a mail server (Optional) |
1102For POP3. |
TCP |
Out |
N/A |
N/A |
|
Device Connection3For WAN connections, this port must be forwarded from the public IP to the internal server address. |
1899 |
TCP |
In/Out |
Out |
In/Out |
|
Server Control |
1900 |
TCP |
In |
Out |
N/A |
|
Status Checks |
1903 |
UDP |
Out |
Out |
In |
|
Avalanche License Server |
7221 |
TCP |
Out |
N/A |
N/A |
|
Avalanche Web Server |
8080 |
TCP |
Out |
N/A |
N/A |
