Use the TE Client to obtain scan codes for the external keyboard and the TE Client virtual keyboard.
To perform a keyboard test:
1 Ensure that you have an active VT/HP or 5250/3270 emulation session.
An active session is required to test the TE Client virtual keyboard. The virtual keyboard displays keys based on the current emulation session type.
2 Use the TE Client virtual keyboard to access the Program Diagnostics screen.
3 Press K to begin a keyboard test.

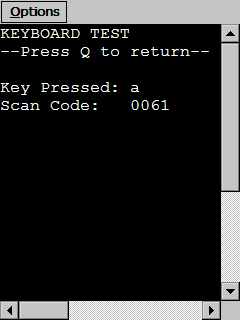

The Keyboard Test screen appears.
4 Use the external keyboard or the virtual keyboard to submit a character sequence to the TE Client.
The TE Client displays the scan code for the character sequence.
Performing a Keyboard Test
5 When you are finished, press Q to return to the diagnostics utility.
