Use the TE Client diagnostics utility to perform a scan test. A scan test allows you to verify the type and value of scanned data. The scan test utility does not process any scan handlers, scan identifiers, or pre- or post-amble strings. However, scan identifiers that you have configured are added to the scan.
To use the diagnostics utility to perform a scan test:
1 In the TE Client, access the diagnostics utility.
The Program Diagnostics screen appears.
2 Press S to begin a scan/MSR test.
The Scan/MSR Test screen appears.
3 Use the scanner on the mobile device to perform a test scan.

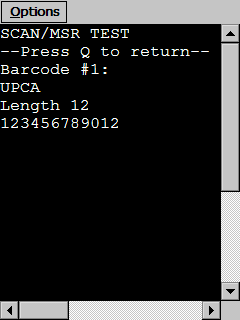

The Scan/MSR Test screen displays the results of the scan.
Performing a Scan Test
4 When you are finished, press Q to return to the diagnostics utility.
