Performing a Windows Keyboard Test

Use the TE Client diagnostics utility to obtain scan codes for the Windows virtual keyboard.

To use the diagnostics utility to obtain Windows scan codes:

1  In the TE Client, access the diagnostics utility.

The Program Diagnostics screen appears.

2  Press W to begin a Windows keyboard test.

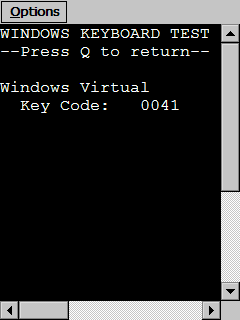

The Windows Keyboard Test screen appears.

3  Access the Windows virtual keyboard.

4  Press a character sequence in the Windows virtual keyboard.

The diagnostics utility displays the scan code for the character sequence.

Performing a Windows Keyboard Test

5  When you are finished, press Q to return to the diagnostics utility.
