Viewing the Inforail Status

The InfoRail Router coordinates communication between Avalanche processes. The InfoRail Router Status dialog box provides information such as the version of the router, how long it has been running, and the IP address. From this dialog box you can print or refresh the status. You cannot change any of the parameters listed.

To view the InfoRail status:

1   Click View > InfoRail Router Status.

The dialog box appears.

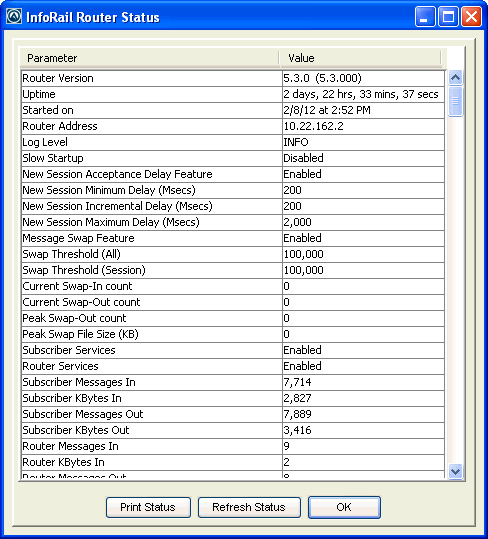

InfoRail Router Status

2   To print the status page, click Print Status.
3   To refresh the statistics, click Refresh Status.
4   Click OK to close the dialog box.
