List panels

A List panel lists the query results. If the underlying query supports the On Launch action, you can double-click an item in the List panel to open it.

To add a List panel to a dashboard:
  1. Right-click the relevant column, then click Add List Panel.
  2. Expand the Queries tree (), then drag the required query onto the List Panel.
  3. Right-click the panel, then click Panel Title.

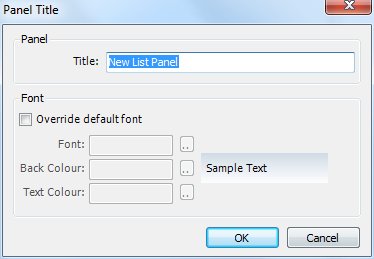

    The Panel Title dialog appears.

    You can change the Title of the panel, and also configure the appearance of the panel header.
  4. Use the controls in the Font group box to Override default font and select the required Font and the required Back Color and Text Color values.
  5. Click OK to save the changes you have made.

To view the relevant item within your query, double-click it.
