Main configuration steps for [email protected] for iOS (Ivanti EPMM)

A [email protected] license is required on Ivanti EPMM to enable support. Enabling this setting indicates that you have the required license to deploy [email protected]

Although [email protected] uses AppConnect capabilities, do not select Enable AppConnect For third-party and In-house Apps in System Settings, unless you also purchased that license.

To enable [email protected]:

  1. In the Admin Portal, go to Settings > System Settings > Additional Products.
  2. Click Licensed Products.
  3. Select Enable [email protected].
  4. Click Save.

Add [email protected] to the App Catalog

Add [email protected] to the Ivanti EPMM App Catalog. Adding to the App Catalog makes the app available in [email protected] on the device. Users can download and install the app from [email protected]

Import [email protected] for iOS from the Apple App Store

[email protected] for iOS can be imported directly from the Apple AppStore to the App Catalog in the Admin Portal.

To import the app from the Apple AppStore and distribute through [email protected]:

  1. In the Admin Portal, go to Apps > App Catalog.
  2. Click Add+.
  3. Click iTunes to import [email protected] for iOS from the Apple App Store.
  4. Enter [email protected] in the Application Name text box.
  5. Click Search.
  6. Select the app from the list that is displayed.
  7. Click Next.
  8. Follow the prompts to add the app. The default settings should work in most cases
  9. Apply the app to a label. This makes the app available in [email protected] for the devices in the label. Make sure that the [email protected] web clip is also applied to the same labels.

For information about adding iOS apps to the App Catalog, see “Working with apps for iOS devices” in the (Undefined variable: GlobalBookTitles.AAWG).

Set up a device passcode (iOS only)

The security policy that you apply to the iOS device requires a device passcode. A device passcode enables iOS data protection, which is necessary for [email protected] to encrypt browser data.

To set up a device passcode on iOS devices:

  1. On the Admin Portal, go to Policies & Configs > Policies.
  2. Select the security policy that applies to the devices that you want to run [email protected]
  3. Click Edit.
  4. For the Password option, select Mandatory.
  5. Fill in the remaining options relating to passwords.
  6. Click Save.
  7. Repeat steps 2 through 6 for all security policies that apply to devices on which you want to run [email protected]

For detailed information about security policies, see “Working with security policies” in the Ivanti EPMM Device Management Guide for iOS and macOS devices.

Set up a Standalone Sentry to support AppTunnel for [email protected]

Standalone Sentry configured for AppTunnel is required to secure the data (data-in-motion) that moves between secure apps and your internal corporate data sources. Setting up app tunneling is a two-step process.

  1. Configuring an AppTunnel service in Standalone Sentry.
  2. Configuring AppTunnel rules for [email protected] for iOS.

Before you begin

Ensure that you have a Standalone Sentry that is set up for AppTunnel and that the necessary device authentication is also configured. See “Configuring Standalone Sentry for app tunneling” in the Sentry Guide.

The [email protected] setting you configure will refer to the Certificate Enrollment or Certificates setting. Do not assign labels to the certificates settings. The certificates are distributed to the appropriate devices based on the [email protected] setting.

Configuring an AppTunnel service in Standalone Sentry

To configure an AppTunnel service for [email protected] on Standalone Sentry:

  1. In Ivanti EPMM, go to Services > Sentry.
  2. Edit the entry for the Standalone Sentry that supports AppTunnel.
  3. In the AppTunnel Configuration section, under Services, click + to add a new service.
  4. Use the following guidelines to configure an AppTunnel service for [email protected]

    Item

    Description

    Service Name

    Use the dropdown to select <ANY>

    <CIFS_ANY> is not relevant to [email protected]

    Selecting <ANY> means that the [email protected] user can reach any of your internal servers. Typically, you do not want to restrict users’ access. However, if you do want to restrict their access to internal servers, you can list the services here instead of selecting <ANY>. The service name is any unique identifier for the internal servers.

    For example, some possible service names are:

    SharePoint

    Human Resources

    The following characters are invalid: 'space' \ ; * ? < > " |.

    The Service Name is used in the [email protected] setting.

    Server Auth

    Select the authentication scheme for the Standalone Sentry to use to authenticate the user to the enterprise server:

    Pass Through

    The Sentry passes through the authentication credentials, such as the user ID and password (basic, digest or NTLM authentication) to the enterprise server.

    Kerberos

    The Sentry uses Kerberos Constrained Delegation (KCD). KCD supports Single Sign On (SSO). SSO means that the device user does not have to enter any credentials when [email protected] accesses the enterprise server.

    The Kerberos option is only available if Identity Certificate for Device Authentication is selected.

    Server List

    Since you typically select <ANY> for the service name for [email protected], the server list is not applicable.

    If you do specify service names, enter the internal server’s host name or IP address (usually an internal host name or IP address).

    Include the port number on the internal server that the Sentry can access.

    For example:

    sharepoint1.companyname.com:443

    You can enter multiple servers. The Sentry uses a round-robin distribution to load balance the servers. That is, it sets up the first tunnel with the first internal server, the next with the next internal server, and so on. Separate each server name with a semicolon.

    For example:

    sharepoint1.companyname.com:443;sharepoint2.companyname.com:443.

    TLS Enabled

    Since you typically select <ANY> for the service name for [email protected], TLS Enabled is not applicable.

    If you do specify service names, select TLS Enabled if the enterprise servers listed in the Server List field require SSL.

    Although port 443 is typically used for https and requires SSL, the enterprise server can use other port numbers requiring SSL.

    Proxy Enabled

    Select if you want to direct the AppTunnel service traffic through the proxy server.

    You must also have configured Server-side Proxy.

    Server SPN List

    Since you typically select <ANY> for the service name for [email protected], Server SPN List is not applicable.

    When the Service Name is <ANY> and the Server Auth is Kerberos, the Standalone Sentry assumes that the SPN is the same as the server name received from the device.

    If you do specify service names, enter the Service Principal Name (SPN) for each server, separated by semicolons. For example:

    sharepoint1.company.com;sharepoint2.company.com.

    The Server SPN List applies only when the Service Name is not <ANY> and the Server Auth is Kerberos.

    If each server in the Server List has the same name as its SPN, you can leave the Server SPN List empty.

    However, if you include a Server SPN List, the number of SPNs listed must equal the number of servers listed in the Server List.

    The first server in the Server List corresponds to the first SPN in the Server SPN List, the second server in the Server List corresponds to the second server in the Server SPN List, and so on.

  5. Click Save.

Configure an AppConnect global policy

Because [email protected] is an AppConnect app, configure an AppConnect global policy. In this policy, you configure AppConnect global settings, which are settings that are not specific to an AppConnect app.

These global settings include:

  • whether AppConnect is enabled in the device
  • AppConnect passcode requirements for iOS, to enable Touch ID authentication to access [email protected], select Use Touch ID when Supported in your AppConnect global policy.
  • conditions for wiping AppConnect data
  • the app check-in interval for iOS devices, indicating how often AppConnect apps receive AppConnect-related policy updates.
  • the default end-user message for when an app is not authorized
  • whether AppConnect apps with no AppConnect container policy are authorized by default
  • settings for data loss prevention policies
    • For iOS devices, these settings are used for devices which do not have an AppConnect container policy for [email protected]

To configure an AppConnect global policy:

  1. In the Admin Portal, select Policies & Configs > Policies.
  2. Select Add New > AppConnect.
  3. If you already have an AppConnect global policy, select it, and click Edit.
  4. Fill in the fields as described in “Configuring the AppConnect global policy” in the AppConnect and AppTunnel Guide.
  5. Most fields default to suitable values, but make sure that you select Enabled to enable AppConnect on the device.
  6. Click Save.
  7. Apply the appropriate labels to the AppConnect global policy. If you are using the default AppConnect global policy, it automatically applies to all devices.

Configure an AppConnect container policy for [email protected]

This task is only required:

  • If you did not select Authorize for Apps without an AppConnect container policy, in the AppConnect Global Policy.
  • If you want to configure a different set of data loss prevention policies for [email protected]

The container policy overrides the corresponding settings in the AppConnect Global Policy.

The AppConnect container policy:

  • authorizes an AppConnect app.
  • specifies the data loss prevention settings.

Separate AppConnect container policies are required for iOS and for Android.

Ensure that only one [email protected] AppConnect container policy is applied to a device.

Procedure

  1. In the Admin Portal, go to Policies & Configs > Configurations.
  2. Select Add New > AppConnect > Container Policy.
  3. Enter a name for the policy. For example, enter “[email protected] container policy.”
  4. Enter a description for the policy.
  5. In the Application field:
  6. For iOS, enter com.mobileiron.securebrowser.
  7. Select the settings you require from those described in the following table.

    Item

    Description

    Exempt from AppConnect passcode policy

    iOS only

    Select this option if you want to allow the device user to use [email protected] without entering the AppConnect passcode or Touch ID.

    When you select this option, situations still occur when the device user must enter the AppConnect passcode or Touch ID. For example, when the user first launches [email protected], the user is prompted to authenticate.

    iOS Data Loss Prevention

    Allow Print

    This setting allows an AppConnect app to use print capabilities if the app supports them.

    However, [email protected] does not allow users to print documents from within [email protected], even if you select this option.

    Allow Copy/Paste To

    Select Allow Copy/Paste To if you want the device user to be able to copy content from [email protected] to other apps.

    When you select this option, then select either:

    • All apps

    Select All apps if you want the device user to be able to copy content from [email protected] and paste it into any other app.

    • AppConnect apps

    Select AppConnect apps if you want the device user to be able to copy content from [email protected] and paste it only into other AppConnect apps.

    Allow Open In

    Select Allow Open In if you want [email protected] to be allowed to use the Open In (document interaction) feature.

    When you select this option, then select either:

    • All apps
      • Select All apps if you want [email protected] to be able to send documents to any other app.
    • AppConnect apps
      • Select AppConnect apps to allow [email protected] to send documents to only other AppConnect apps.
    • Whitelist
      • Select Whitelist if you want [email protected] to be able to send documents only to the apps that you specify.

    Enter the bundle ID of each app, one per line, or in a semi-colon delimited list. For example:

    • com.myAppCo.myApp1
    • com.myAppCo.myApp2;com.myAppCo.myApp3
    • The bundle IDs that you enter are case sensitive.

    Note The Following:

    • [email protected] does not allow Open In for these file types:
      • Text: javascript, ecmascript, css
      • Application: javascript, x-javascript, json, xml
      • Image: x-icon
      • Video: avi, mpeg, mp4, quicktime, H264, x-msvideo
      • Audio: 3gpp, 3gpp2, iff, x-aiff, amr, mp3, mpeg3, x-mp3, x-mpeg3, mp4, mpeg, x-mpeg, wav, x-wav, x-m4a, x-m4b, x-m4p

    [email protected] for iOS automatically blocks AirDrop and unauthorized apps with iOS 8 share extensions from selective Open In.

    Allow Open From

    Select Allow Open From if you want [email protected] to be allowed to use the Open From (document interaction) feature. The admin can limit external apps that are allowed to open documents into AppConnect applications.

    When you select this option, then select either:

    • All apps

    [email protected] does not support opening of documents from other apps. Open From is used to only to control import of Bookmarks in wwbm file format.

    • AppConnect apps

    Select AppConnect apps to allow [email protected] to open Bookmarks from only other AppConnect apps.

    • Whitelist

    Select Whitelist if you want [email protected] to be able to open Bookmarks only from the apps that you specify.

    Enter the bundle ID of each app, one per line, or in a semi-colon delimited list. For example:

    • com.myAppCo.myApp1
    • com.myAppCo.myApp2;com.myAppCo.myApp3

    The bundle IDs that you enter are case sensitive.

  8. Select Save.
  9. Select the [email protected] container policy.
  10. Click More Actions > Apply To Label.
  11. Select the labels to which you want to apply this policy.
  12. Click Apply.

[email protected] configuration

The [email protected] configuration is required on the device in order to use W[email protected] It applies to both iOS and Android devices, and sets up the following features and behaviors:

  • AppTunnel settings for [email protected]
  • Administrator-specified bookmarks.
    • The bookmarks you specify here are automatically available to device users.
  • Key-value pairs for custom configurations and features.
    • Key-value pairs to further customize [email protected] (These key-value pairs are analogous to the key-value pairs that an AppConnect app configuration provides in its App-specific Configurations section.)

Make sure only one [email protected] setting applies to each device.

Configuring [email protected]

To configure a [email protected] setting:

  1. In the Admin Portal, go to Policies & Configs > Configurations.
  2. Click Add New > [email protected].

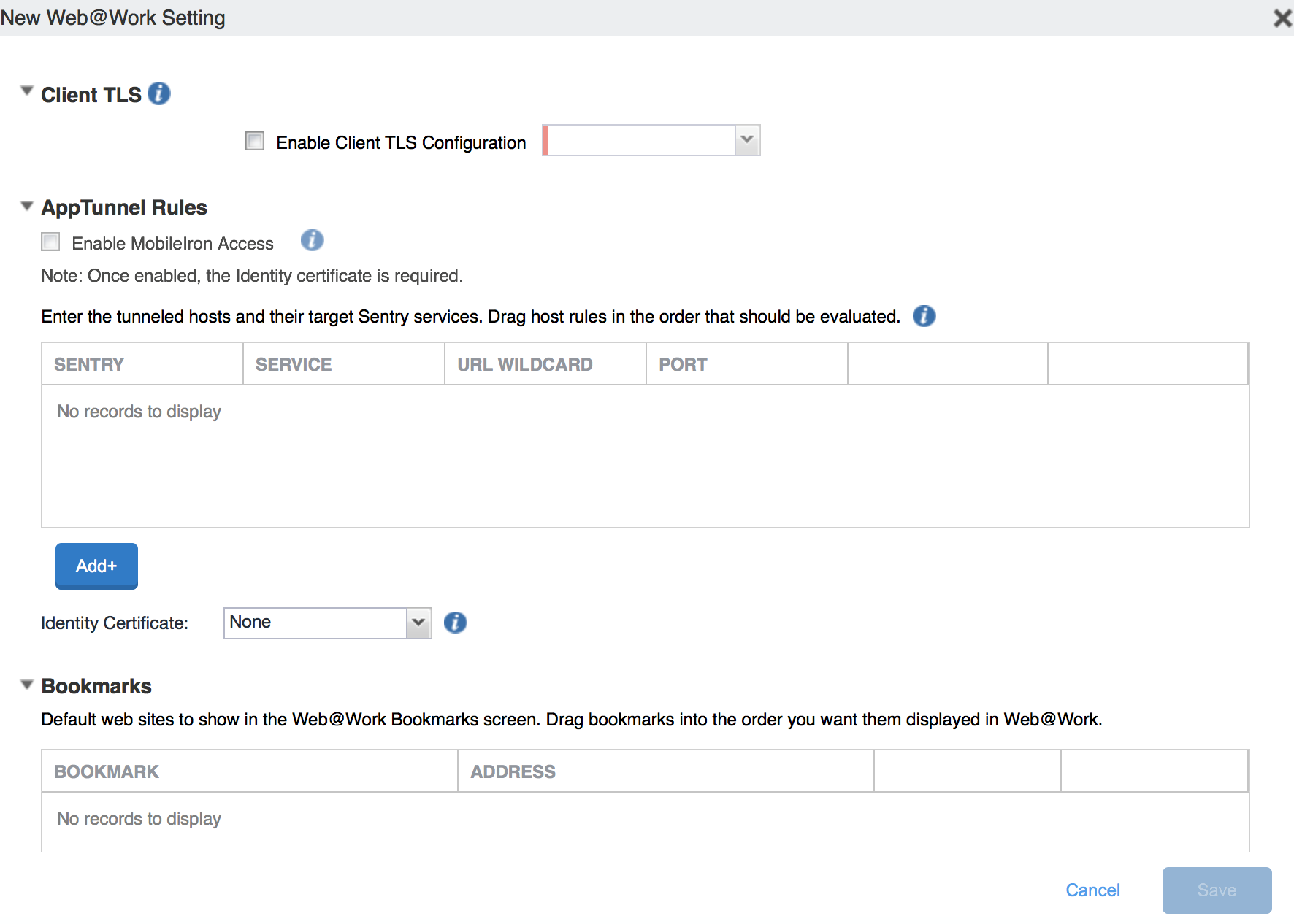

  3. The New [email protected] Setting dialog appears.

  4. Use the following guidelines to create or edit a [email protected] setting:

    Item

    Description

    Name

    Enter brief text that identifies this [email protected] setting.

    Description

    Enter additional text that clarifies the purpose of this [email protected] setting.

    Client TLS

    Enable Client TLS and select the configured Client TLS configuration to use certificate pinning feature to provide more security between [email protected] and enterprise server communication. For more information to configure Client TLS see, Creating a Client TLS configuration section in the Ivanti EPMM AppConnect and AppTunnel Guide.

    AppTunnel Rules

    Enable Access: Select the checkbox to allow authentication traffic to Access. For information about Access as a service and how to set up the service with Ivanti EPMM, see the Access Guide.

    Configure AppTunnel rules settings for [email protected]

    First, configure the Standalone Sentry to support AppTunnel. See Set up a Standalone Sentry to support AppTunnel for [email protected].

    When [email protected] tries to connect to the URL and port configured here, the Sentry creates a tunnel to the Service.



    Sentry

    Select the Standalone Sentry that you want to tunnel the URLs listed in this AppTunnel entry. The drop-down list contains all Standalone Sentrys that are configured to support AppTunnel.

    Service

    Select a Service Name from the drop-down list. Typically, for [email protected], the service is <ANY>.

    <CIFS_ANY> is not relevant to [email protected]

    This service name specifies an AppTunnel service configured in the App Tunneling Configuration section of the specified Sentry.

    If the service on the Sentry is configured with its Server Auth set to Kerberos, [email protected] uses Single Sign On for the enterprise server. That is, the device user does not enter any further credentials when [email protected] accesses the enterprise app server.

    URL Wildcard

    Typically, for the [email protected] AppTunnel, enter a hostname with wildcards. The wildcard character is *..

    Example:

    *.yourcompanyname.com

    If you want finer granularity regarding what requests the Standalone Sentry tunnels, configure multiple AppTunnel rows.

    If [email protected] requests to access this hostname, the Sentry tunnels the [email protected] data to an app server. The Sentry and Service fields that you specify in this AppTunnel row determine the target app server.

    Note The Following:

    If [email protected] requests a hostname that does not match the value of any of the AppTunnel entries in the [email protected] setting, tunneling does not occur. In this case, if the requested hostname is behind your firewall, [email protected] informs the device user that it cannot access the requested hostname.

    • A hostname with wildcards works only with the service <ANY>. Unlike services with specific service names, these services do not have associated app servers. The Sentry tunnels the data to the app server that has the URL that [email protected] specified.
    • The order of these AppTunnel rows matters. If you specify more than one AppTunnel row, the first row that matches the hostname that [email protected] requested is chosen. That row determines the Sentry and Service to use for tunneling.
    • Do not include a URI scheme, such as http:// or
      https://, in this field.

    Port

    Enter the port number that [email protected] requests to access.

    The [email protected] data is tunneled only if [email protected]’s request matches the hostname in the URL Wildcard field and this port number. If you do not enter a port number, the port in [email protected]’s request is not used to determine whether data is tunneled.

    Entering a port number in this field is required when both of the following are true:

    • The hostname in the URL Wildcard field does not contain a wildcard.
    • The service is not <ANY>.

    Identity Certificate

    Select the Certificate Enrollment setting that you created for devices to present to the Standalone Sentry that supports app tunneling.

    For more information, see “Certificate Enrollment settings” in the Ivanti EPMM Device Management Guide.

    Bookmarks

    Specify the bookmarks that you want to appear automatically in the Bookmarks screen of [email protected]

    The bookmarks appear in the Bookmarks screen of [email protected] in the same order that they appear in the [email protected] setting. To change the ordering, drag the bookmarks in the [email protected] setting.

    Bookmark

    Enter the name of the bookmark. The name is any string that describes the URL that the bookmark points to.

    For example:

    Sales information

    Address

    Enter the URL for the bookmark.

    For example:

    https://sales.mySecureCompany.com

    Custom Configurations

    Specify [email protected] custom configuration settings as key-value pairs.

    Key

    Enter the key. The key is any string that [email protected] recognizes as a configurable item. Unrecognized keys are ignored.

    See Custom configurations with key-value pairs for a description of available keys and values.

    Value

    Enter the value associated with the key.

  5. Click Save.
  6. Select the new [email protected] setting.
  7. Select More Actions > Apply To Label.
  8. Select the labels to which you want to apply this [email protected] setting.
  9. Click Apply.
